Key Takeaways

• Use connector types that match your LED strip voltage, width, and PCB copper layout for flicker-free performance and safe current handling.
• For smooth, consistent light, follow wattage limits per run and power both ends of long strips to reduce voltage drop and dimming.
• Plan connector positions at cut marks, use profiles, and keep polarity consistent to simplify installation and future maintenance.
• Choose connector and profile combinations that hide joins, soften glare, and support your desired ambience from 2700K warm to 4000K neutral.
• In coastal or humid South African climates, pick IP65–IP67 strip and matching waterproof connectors to handle moisture and temperature swings.
• Buy connectors, strips, and drivers from a single, reputable source so compatibility and SANS-10142 compliance are easier to achieve.

Seamless connectors join LED strip sections electrically and mechanically so current flows reliably while maintaining a continuous line of light with minimal visible gaps or brightness changes.

Most modern low-profile connectors use either tiny metal contacts that clamp onto the strip’s copper pads, or short flexible wire links that bridge between strips. When these are matched to the strip’s width (typically 8 mm for 12 V and 10 mm for many 24 V options) and polarity, they effectively extend your run without soldering. Many of the components we stock in our striplight components collection are designed exactly for this purpose.

From a performance point of view, good connectors keep contact resistance low so your LEDs still see the correct voltage. On a 24 V strip pulling around 14.4 W/m (typical for a bright 60–120 LED/m product) that matters: excessive resistance at a connector can cause local heat, early failure, and visible dimming after a few metres.

In short: Seamless LED strip connectors create reliable electrical joins between strip sections while preserving a smooth visual effect and safe current flow, all without messy soldering.

Connectors are critical locally because we often run long strips through joinery and ceilings, and poor joins show up as flicker, dead sections, or uneven light in already power-challenged environments.

In South Africa, strips are frequently used under granite counters, inside shadow lines, and outdoors on patios. We’ve seen many DIY projects where cheap clip-on connectors corroded in Durban humidity or loosened in a Joburg ceiling after a hot summer. By contrast, using correctly rated connectors and proper LED extrusion profiles keeps everything secure, ventilated and compliant with SANS-10142 recommendations for low-voltage wiring protection.

Technically, our climate swings are no joke: from sub-10 °C winter mornings in the Highveld to 35 °C Cape summers and coastal salt air. A decent connector rated to at least 85 °C insulation temperature and, outdoors, IP65 or better, will last years longer than a bargain-bin alternative.

Bottom line: In South African kitchens, patios, and retail spaces, robust seamless connectors are vital for long-term reliability, safety, and appearance under real-world temperature and humidity shifts.

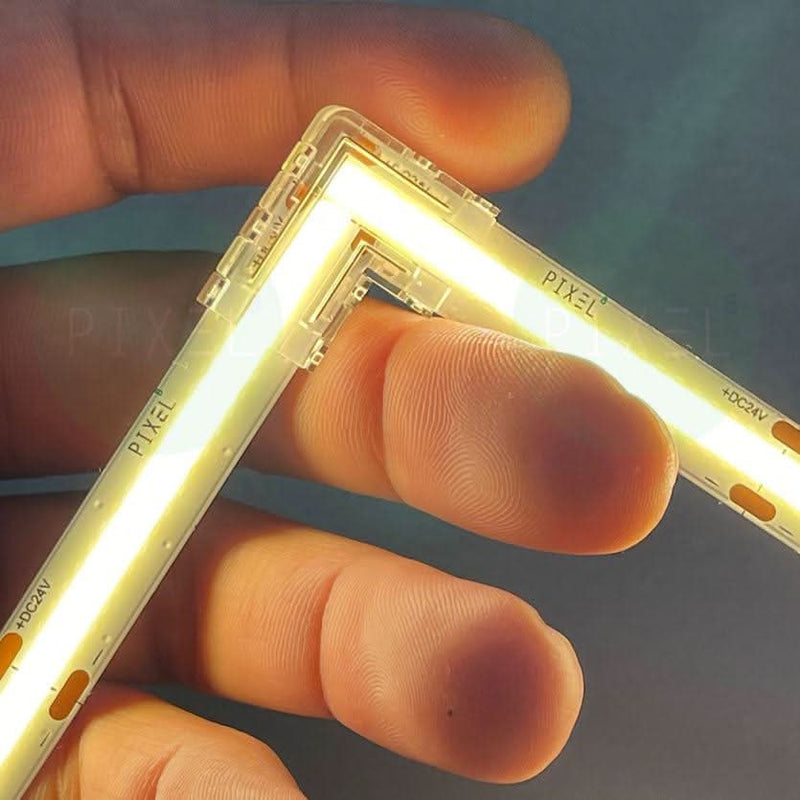

The main seamless connector types are gapless clip connectors, short wire joiners, L-shaped and T-shaped corners, and waterproof pigtails for IP-rated LED strip systems.

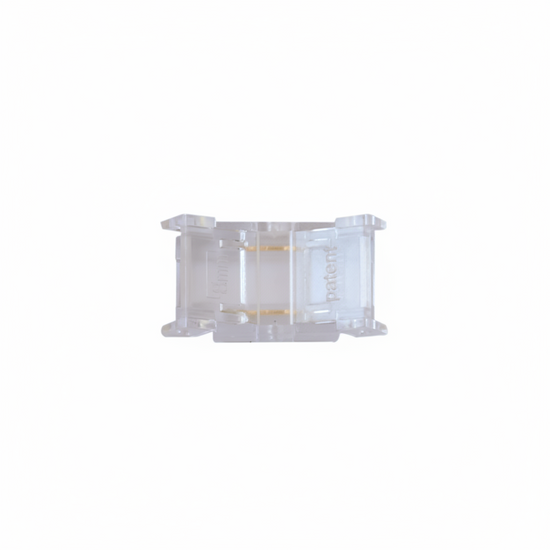

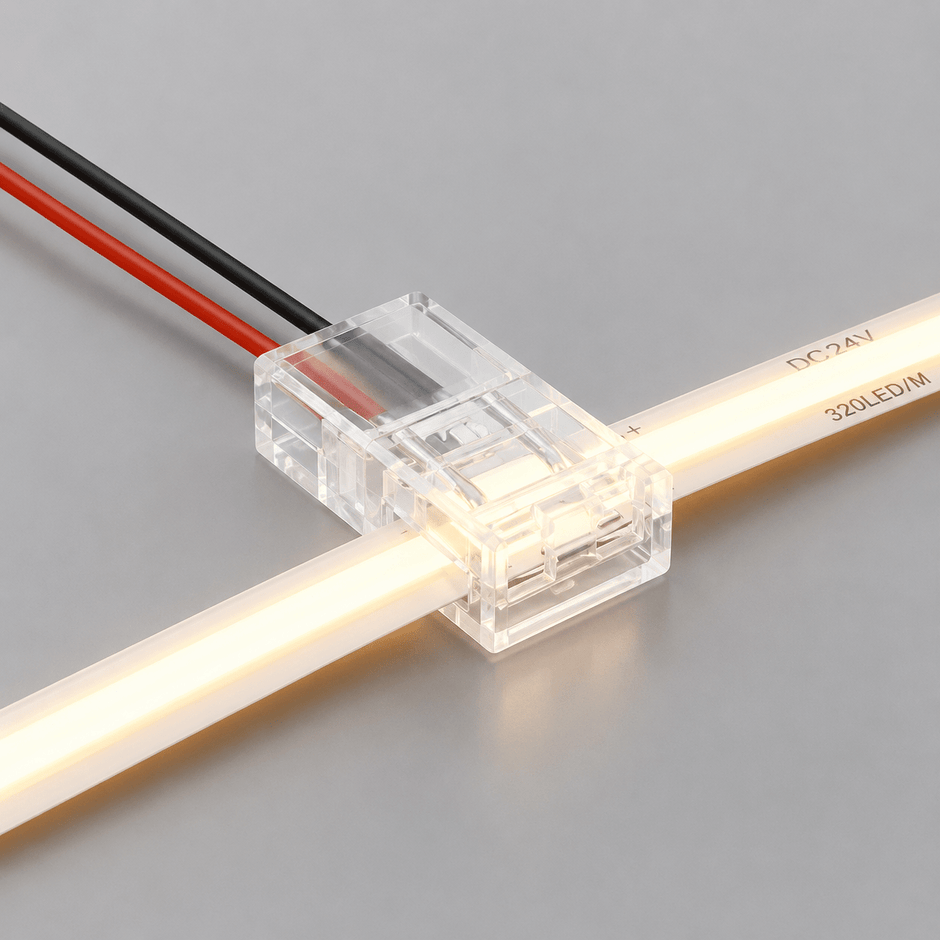

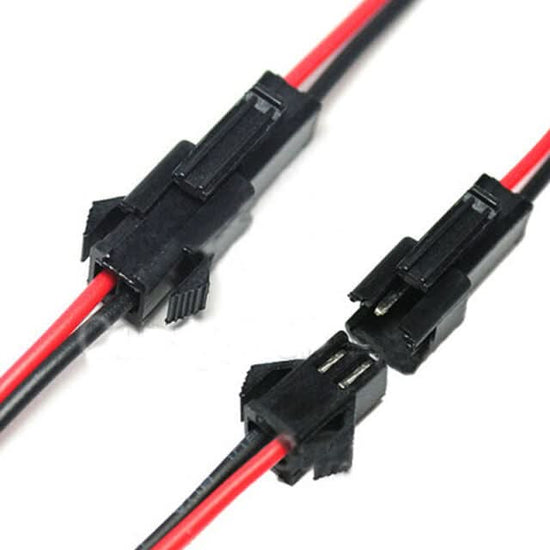

In practice, we often combine a few styles on a single project. Gapless “butt” connectors are brilliant when you want the LEDs from one strip to continue almost edge-to-edge into the next — ideal for long bulkhead or cove lighting. Wire joiners and corner connectors help when you need to run around kitchen cabinets or along stair stringers with neat 90° angles and no dark spots.

From a numbers perspective, most 12 V single-colour strips will use 2-pin connectors; RGB strips require 4-pin, and RGBW up to 5-pin. Make sure the connector’s amp rating exceeds your strip’s draw (e.g. 5 A+ for high-density runs), and that it matches the strip PCB width in millimetres for a snug fit.

Key takeaway: Choose connector shapes (straight, corner, T) and pin counts (2–5) that match your strip layout, width and current draw to keep joins safe and visually invisible.

For indoor dry areas like kitchens, lounges, and bedrooms, low-profile gapless and wire connectors matched to strip width and colour type are usually ideal for neat, hidden joins.

In South African homes, we commonly use 12 V or 24 V IP20 strips in aluminium channels under counters or in ceiling recesses. For these, slim clip-on connectors that slide under the diffuser are the neatest choice. If you’re planning a full strip setup, our dedicated guide to LED strip lighting in South African homes dives deeper into profiles and placement to match your connectors and layout.

From a design point of view, CRI 80 is a good minimum indoors, with CRI 90+ strips strongly recommended for kitchen counters where you prep food and want accurate colours. Seamless connectors ensure those high-CRI LEDs don’t end abruptly at a dark gap halfway along your cupboards.

In short: Indoors, choose slim, profile-friendly connectors that match your strip width and keep the light line continuous across cabinets and ceiling details.

For outdoor and coastal applications you need IP65–IP67 rated strips plus matching waterproof connectors and heat-shrink to prevent moisture ingress and corrosion of the copper pads.

We see this a lot on Durban and Western Cape coastal patios: standard indoor connectors are used on IP65 silicone-encased strips, the seal is broken, and within months the contacts go green and fail. Instead, use purpose-made waterproof pigtail connectors and seal joins with heat-shrink tubing and silicone where appropriate. Pair this with outdoor-rated fittings from our outdoor lighting collection for a cohesive, weather-tough setup.

Look for connector systems that maintain the strip’s IP rating: for example, IP67 strip used with IP67 inline connectors and junction boxes. SANS-10142 emphasises proper enclosure of low-voltage connections outdoors, so housing connectors in IP65+ junction boxes is best practice.

Bottom line: Outside, treat LED strip connections like any exterior electrical point: fully sealed, corrosion-resistant and housed in suitable IP-rated enclosures.

Choose connectors whose current rating comfortably exceeds your strip’s maximum amps per run, taking into account total wattage, supply voltage, and recommended maximum run length from the manufacturer.

Here’s the simple way we explain it to clients: calculate amps as watts divided by volts. For example, a 14.4 W/m 24 V strip over 5 m draws 72 W ÷ 24 V ≈ 3 A. Your connector should be comfortably above that — ideally 5 A+ to allow a margin. Also follow the strip maker’s max run guideline (often 5 m at 12 V, 10 m at 24 V) to avoid voltage drop; if you exceed it, power-feed from both ends or add a central feed.

Voltage drop becomes visible when the far end of the strip is more than ~10% dimmer than the start. On a 3000 K warm white strip, that can make one side of a room look dull. Correctly rated connectors, adequate cable thickness, and shorter individual runs all help maintain even brightness.

Key takeaway: Always check amps (not just volts) and stick to the manufacturer’s max run length, then choose connectors and cable gauges that support that current with headroom.

To prepare LED strips, cut only at the marked cut lines, ensure clean straight edges, and expose intact copper pads ready for the connector’s contacts.

On site we always start by dry-laying the strip along the profile or surface, marking every cut point precisely where the manufacturer has indicated (usually every 25, 50 or 100 mm). Use sharp scissors or side-cutters for a clean, perpendicular cut; ragged edges lead to poor contact. If the strip has a silicone coating (IP65), gently remove the silicone above the pads with a sharp blade, taking care not to cut through the PCB.

For consistent performance, keep polarity aligned: most strips mark + and – pads clearly; RGB/RGBW will label R, G, B, W and +. Before inserting into the connector, double-check that the positive pad will line up with the positive side of the connector, otherwise your 3000 K warm white strip might simply not light at all.

In short: Cut accurately on the cut marks, expose clean copper pads, and confirm polarity before you even touch the connector.

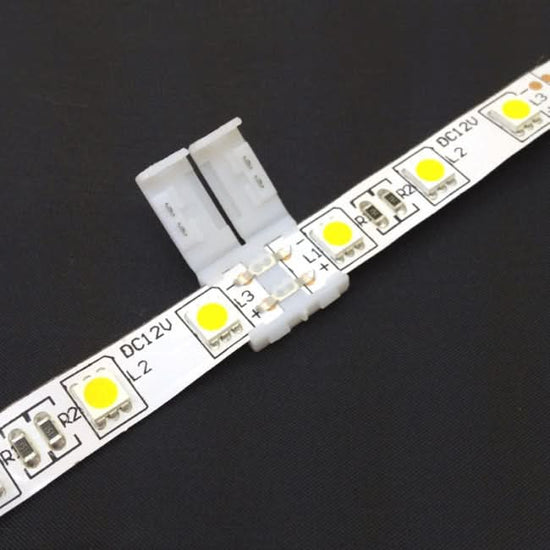

Open the connector latch, slide the strip fully under the contacts so they align with the copper pads, then close firmly until it clicks without bending or stressing the PCB.

With quality connectors there’s a distinct “click” when closed correctly. We often tell DIY clients to lightly tug the strip afterwards — it should not pull out. For gapless connectors, align the two strip ends edge-to-edge before closing so the LED spacing stays uniform. If you’re working in a tight aluminium channel from our LED extrusion profile range, pre-connect the strips outside the profile, test, then slide the assembly in.

From a technical angle, avoid crimping the strip; bending it sharply at the connector can crack solder joints and tracks, especially on high-density (e.g. 120 LED/m) tape. Maintain at least the manufacturer’s minimum bend radius (often around 20–30 mm) just before and after the connector.

Bottom line: Take your time, line up copper pads perfectly, close until you hear a click, and never force the strip into a sharp bend at the connector.

To prevent shadows and hot spots, position connectors outside main viewing angles, use diffused profiles, and opt for gapless connectors that keep LED spacing consistent.

For example, on a floating ceiling in a Johannesburg living room, we’ll usually place connectors above beams or at sections that are hidden from direct view, and run the strips inside opal-diffuser channels. Our outdoor lighting guide shows similar thinking for patios and garden walls — you want the glow, not the glare or the hardware. Higher-density strips (e.g. 120 LED/m) also help soften any minor variation at a join.

Remember that diffuser thickness and distance from the LEDs affect spotting: a 2 mm opal cover with LEDs at 8 mm pitch will show more individual points than a deeper channel. If you’re using 4000 K neutral white strips for task lighting, go for deeper profiles and gapless joins to achieve that lovely, uniform ribbon of light.

Key takeaway: Hide connectors out of direct sight, combine them with good diffusers, and choose high-density strips to minimise any visible change where sections join.

The most common mistakes are mismatched connector sizes, reversed polarity, overloading single feed points, and using indoor connectors on outdoor or coastal LED strip installations.

In our 10+ years of supplying LED solutions across South Africa, we’ve seen it all: a Sandton client with premium 90+ CRI strips connected via cheap clips that kept burning out, and a KZN guesthouse with beautiful patio strips ruined by corroded non-IP connectors after one season. In both cases, the LED tape was decent — the weak link was the joining hardware and wiring. Swapping to correct seamless connectors and proper waterproof accessories solved the problem without changing the strips themselves.

When we design systems for commercial sites (see our commercial lighting solutions), we pay special attention to connector count and load distribution. For instance, a 20 m run of 24 V strip might be broken into two 10 m runs each with its own feed and connectors rated for 5–8 A, following manufacturer guidance and SANS-10142 low-voltage wiring principles.

In short: Most LED strip failures we’re called to fix are connector-related, not LED-related, and usually come down to mismatched ratings, wrong polarity, or poor weather protection.

Connector quality and wiring layout influence how evenly strips dim, whether colour temperature stays consistent, and whether you avoid flicker at low brightness levels.

On a dimmable 3000 K strip in a dining room, for example, cheap or undersized connectors may cause certain sections to start flickering or dropping out sooner as you dim down. We’ve used high-quality connectors and drivers (compliant with IEC and local standards) on jobs where strips need to go from full working brightness (~800–1000 lm/m) down to soft mood light without steps or colour shift — especially in restaurant and hospitality work across Cape Town and Joburg.

Technically, when resistance differs between segments (due to poor connectors or thin feed cables), the voltage at each segment under dimming PWM control can vary slightly. That shows up as subtle colour temperature differences or flicker in video recordings. Good connectors and balanced wiring minimises these effects, which is important if you’re creating content or using strips near mirrors and reflective surfaces (see also our piece on LED strip light customisation).

Bottom line: Reliable, correctly rated connectors help your LED strips dim smoothly, stay the same colour along the run, and maintain the ambience you designed for.

The safest option is to buy LED strips, seamless connectors, power supplies, and profiles from one reputable supplier so compatibility, ratings, and support are aligned.

At Future Light we curate our LED strip lights, striplight components, and LED power supplies to work together in typical South African scenarios: from a 5 m plug-and-play under-counter kit in a Cape Town flat, to longer custom runs powering signage and brand lighting in retail spaces. That means if you’re unsure about a connector choice, you have a real team to ask — and we’ll look at your plan, not just the part number.

Where standards are involved, like IP ratings and load calculations, having one partner also means the specs line up: a 24 V strip rated at 14.4 W/m, a 100 W driver with ~20% overhead, connectors rated at 5 A, and suitable cable sizes are chosen together rather than guessed in isolation.

Key takeaway: Matching your seamless connectors to strips, drivers, and profiles from the same trusted source cuts risk, simplifies installation, and gives you support if something misbehaves.
