LED strip lights are one of the quickest ways to make a room feel finished, but the hidden part of the install is what decides whether the result is reliable. The right power supply keeps the strip cool, steady and safe; the wrong one can lead to flicker, heat build-up and a project that never quite feels complete.
If you are fitting under-cabinet lighting in a kitchen, soft shelf lighting in a lounge, or a clean feature line in a passage, it helps to think of the power supply as the part that does the unglamorous but essential work. Match it properly and the rest of the install becomes much easier to live with.
Quick answer: match the strip voltage, add at least 20% headroom on wattage, and choose an IP-rated supply any time the driver sits near moisture, dust or outdoor conditions.
Key takeaway
- Voltage has to match exactly. A 12V strip needs a 12V supply, and a 24V strip needs a 24V supply.
- Wattage needs breathing room. Build in a safety buffer so the driver is never running flat out.
- Moisture changes the spec. Bathrooms, alfresco areas and outdoor runs usually need a waterproof or IP-rated option.
- Accessories matter. The cleanest installs usually include the right connectors, dimmer and cabling from the start.
Think of the power supply as part of the lighting design, not just the wiring. Once the voltage, wattage and protection level are sorted, the rest of the project becomes a lot simpler to plan and a lot harder to get wrong.
Start with voltage, then size the wattage properly
Start by checking the voltage printed on the strip itself. That figure is not a suggestion. If the strip is rated 12V DC, the driver must also be 12V DC. The same rule applies to 24V runs. Mixing the two is the fastest way to shorten the life of the lighting or damage it outright.
Next, look at the total load. Add up the wattage per metre, multiply it by the number of metres you plan to install, and then add a healthy buffer. A driver that is comfortably sized will run cooler and give you more room if you later extend the run or add a small accessory.
For a simple kitchen or shelf install, the 12V 60W power supply is a handy benchmark because it sits in the range many residential strip projects need. If you are planning a longer run or you want to compare options, the full LED striplight kits range is worth a look too.
| Install type | Better-fit supply | What to watch |
|---|---|---|
| Short cabinet or shelf run | Slim 12V supply | Keep the load below the rated output and leave service access. |
| Longer linear feature lighting | 24V driver or split-feed setup | Reduce voltage drop and avoid dim ends on the run. |
| Outdoor, bathroom or damp area | Waterproof / IP-rated unit | Check the enclosure rating, cable entry and mounting location. |
| Dimmable feature lighting | Dimmable driver or compatible dimmer path | Make sure the strip, driver and dimmer are all designed to work together. |
That simple check removes most of the guesswork. If the strip and the supply do not agree on voltage, the rest of the conversation is already over. If they do agree, the next question is only whether the supply has enough capacity for the full run and a little headroom beyond it.
Browse the 12V 60W LED power supply as a practical sizing reference for smaller residential strip-lighting jobs.
If you are still comparing options, browse the LED power supplies range first. It is the fastest way to match a driver to the strip you already have in mind.
Leave room for heat, cable routing and future servicing
Heat is the part of the install that gets ignored too often. A power supply tucked into a dead space with no airflow will work harder than it should, and that extra strain usually shows up later as noise, flicker or a shorter lifespan. A little breathing room around the driver is cheap insurance.
The neatest installs are the ones that balance appearance with access. You want the supply hidden enough that the room still feels clean, but not so hidden that you have to dismantle half the joinery to replace it later. A serviceable cabinet panel or recess is better than burying the driver behind a permanent finish.

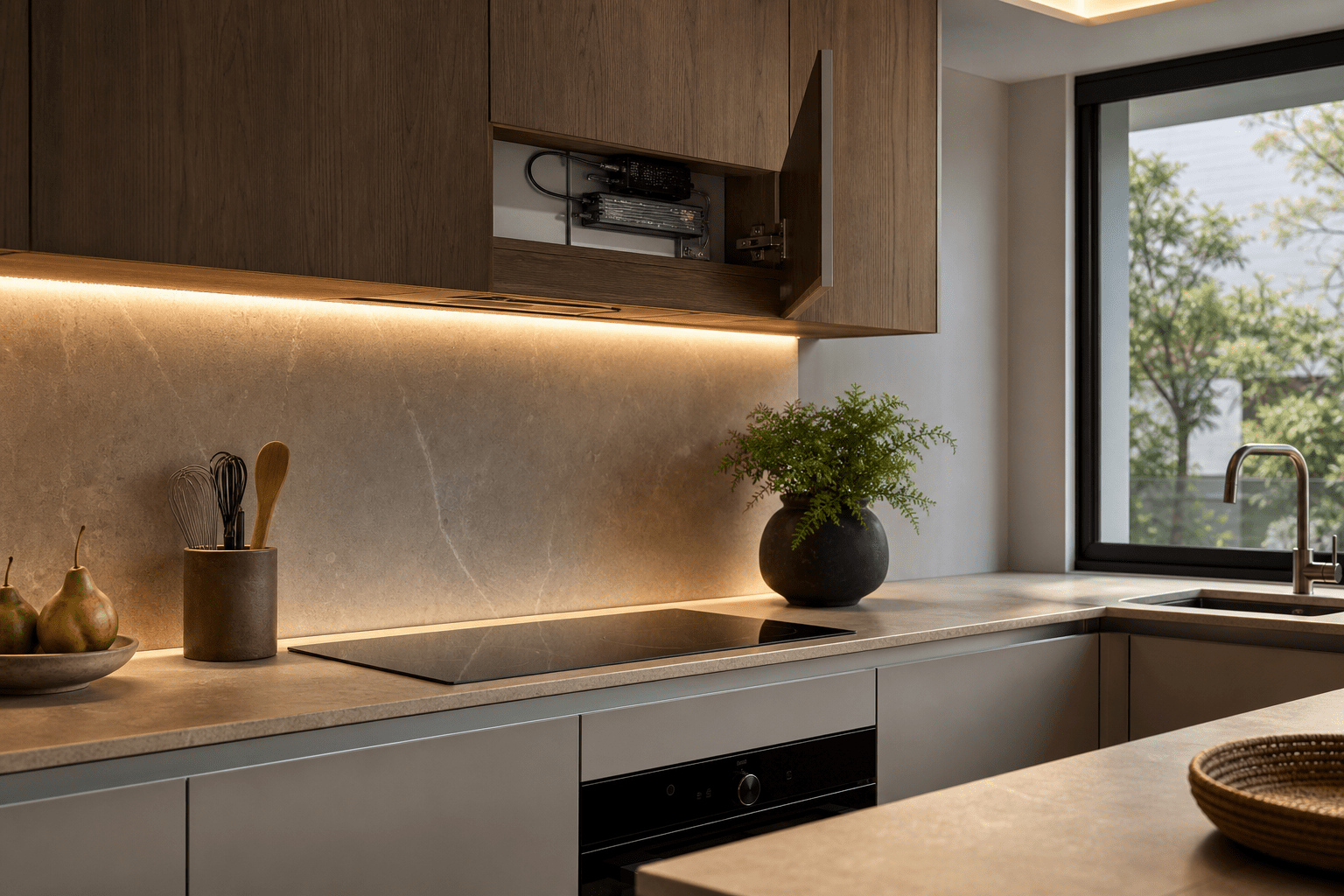

The lifestyle close-up below shows the kind of install that ages well: tidy cables, enough ventilation around the driver, and a layout that would still be easy to inspect six months later. That sort of planning is not glamorous, but it is usually what separates a project that looks good for years from one that needs attention too soon.
A tidy cabinet installation usually starts with the driver, connectors and cable path all planned before the strip goes up.
For cleaner builds, keep the strip, the driver and the accessories in the same planning step. Our LED Striplight Components & Controllers collection makes that easier to do without over-ordering random parts.
Use the right connectors and enclosure from the start
Accessories make the difference between a lighting run that feels improvised and one that feels intentional. The right connector can save a lot of time on a small job, but it also keeps the layout tidy and lowers the chance of a loose contact later on.
If the job calls for a simple join, the LED Strip Light Connectors (3528 & 5050) are a sensible option. They are especially handy where you want the install to stay serviceable without soldering everything into place. Matching the connector to the strip type is still important, though, so do not force a universal part into a specific job if the strip profile does not suit it.
For wetter spaces or more exposed locations, step up to a waterproof unit such as the Mean Well IP67 12V supply. It is better to over-spec the enclosure slightly than to gamble on a supply that was never meant to live in a damp area.
When the accessories are chosen well, the finished install feels deliberate. The strip sits straighter, the cabling is easier to service and the whole system is less likely to develop an annoying fault in a hidden corner of the room.
Use the connectors product page when you want a neat, solderless option for straightforward 12V strip joins.
If you want a more bundled starting point, browse the LED striplight kits collection. It is often the simplest way to keep the strip, power and accessories aligned.
Common mistakes to avoid
- Choosing a supply by price alone. A cheaper unit that runs hot or noisy is rarely a saving in the long run.
- Ignoring voltage drop on longer runs. If the strip fades toward the end, the supply may be fine but the layout is not.
- Skipping ventilation. A driver needs airflow just as much as the strip needs power.
- Mixing dimming parts at random. If you want control, choose a compatible dimmer path from the beginning.
- Hiding the driver where nobody can reach it. Installers remember this the first time something needs servicing.
The safest approach is usually the most practical one: pick the voltage first, size the wattage properly, and then choose the enclosure and accessories that suit the room. That sequence keeps the project calm and keeps the LED strip performing the way it should.
When the layout is simple but you still want a polished result, browse the LED striplight kits collection again. It is a good shortcut for matching all the parts without starting from scratch.
Frequently asked questions
How do I know if my power supply is too small?
If the supply is running at or near its rated maximum all the time, it is too small for the job. Add a buffer so it has room to breathe and the LED strip stays more stable.
Should I choose 12V or 24V?
Choose the voltage that matches the strip you are using. In general, 24V becomes more attractive on longer runs because it reduces voltage drop, while 12V is common for smaller residential installs.
Do I need a waterproof power supply indoors?
Not usually. Dry indoor spaces can use a standard unit, but bathrooms, outdoor features and damp utility areas deserve a waterproof or IP-rated supply.
Can I hide the power supply in a cabinet?
Yes, and that is often the best place for it, as long as the cabinet still offers airflow and future access. Tidy wiring and a serviceable panel make the install much easier to maintain.
