Lighting installations often involve more than one neat cable run. A ceiling fitting may need a branch connection, an LED driver may sit inside a cabinet, or several conductors may need to be joined in a confined space. Quick wire connectors can make those joins faster to assemble and easier to inspect, but only when the connector matches the conductor, circuit and installation method.
This guide explains where quick wire connectors can save time on lighting work, what to check before choosing one, and how to plan a cleaner installation without treating a connector as a substitute for isolation, testing or competent electrical work.
Where quick wire connectors save time
The time saving comes from the joining process. A lever-operated connector can be opened, the prepared conductor inserted, and the lever closed without building a twisted joint and wrapping it in tape. That does not remove the need to isolate the circuit, prepare the conductor correctly or test the finished work. It simply makes the physical connection more repeatable.

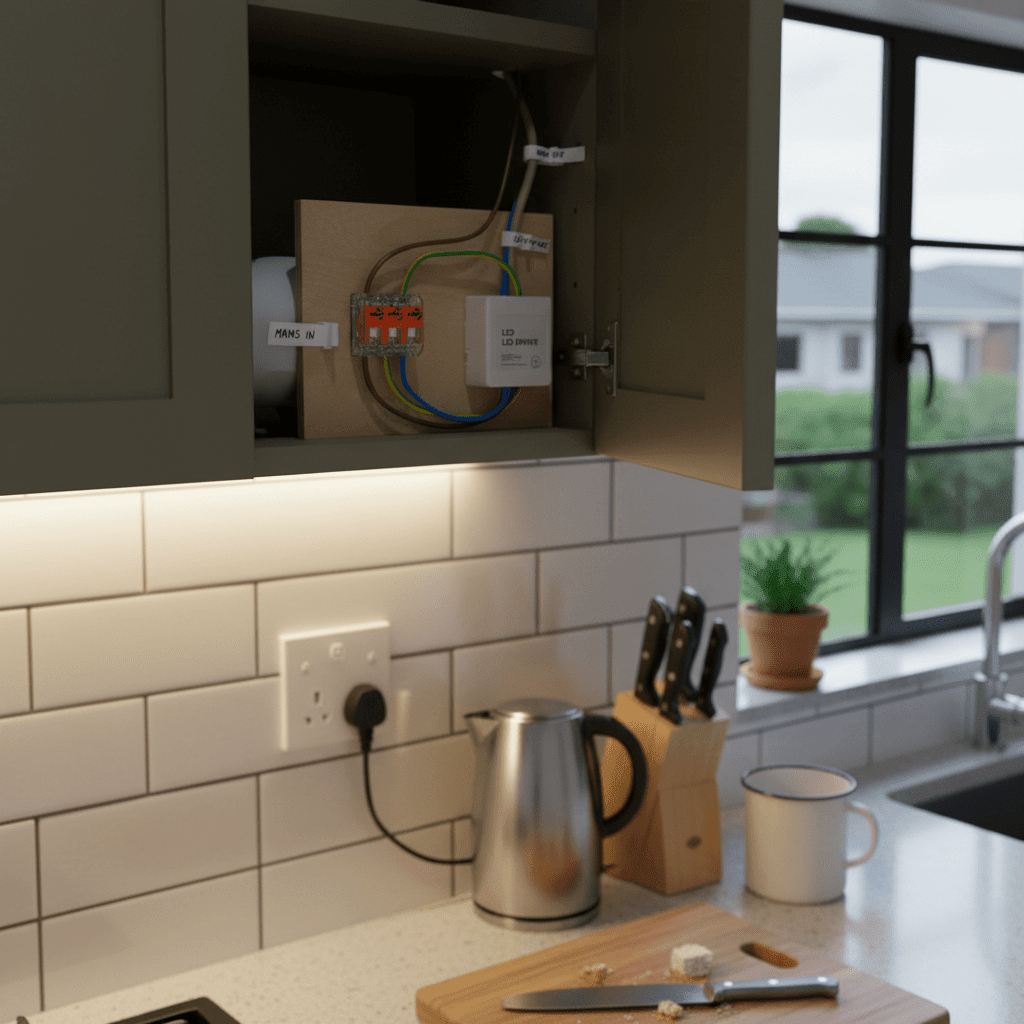

In a cabinet lighting project, for example, the connector may sit between the incoming supply, an LED driver and the low-voltage lighting circuit. In a ceiling void, a connector may be used to join a branch to a fitting or to keep a junction neat while the installer works through several conductors. The layout still needs to remain accessible and compliant with the relevant installation requirements.
The clearest benefit is often during fault finding. Transparent housings and lever mechanisms make it easier to see whether a conductor is seated, while a labelled cable layout helps the next person understand what each connection does.
Choose the connector by the job, not by appearance
Two connectors can look similar while serving different purposes. Start with the number of conductors that must be joined, then check the conductor size, material, voltage and current limits stated for the product. If you are joining a lighting circuit to an LED driver, also confirm whether the connector is intended for the relevant side of the driver and whether the enclosure keeps the connection protected.
| Installation need | Relevant store example | Check before ordering |
|---|---|---|
| Join two conductors | Wago 2 Way Splicing Connector - 16 Pack | Conductor size, material, strip length and the connector's electrical rating. |
| Create a three-way branch | Wago 3 Way Splicing Connector - 12 Pack | Whether all three conductors are compatible and whether the junction remains accessible. |
| Pack small cable joins | 2 Pole Cable Quick Connectors - 50 Pack | Pole count, cable preparation and the intended lighting or cable application. |
| Join three-pole cable runs | 3 Pole Cable Quick Connectors - 50 Pack | The three conductors, polarity and the product's installation instructions. |
Prepare the conductor properly
A quick connector still depends on a sound conductor end. Isolate the circuit first, confirm it is dead with the appropriate test procedure, and follow the connector's specified strip length. Do not leave excessive bare copper outside the housing, and do not push damaged, flattened or badly nicked conductors into the connector.
Keep the wiring legible. Leave enough slack for inspection, route conductors so the connector is not under strain, and label the supply and load where the installation could be confusing. In a cabinet, secure the driver and keep the connection away from sharp edges. In a ceiling space, make sure the finished arrangement is protected and accessible as required by the installation.
For multi-conductor work, check that each lever or entry point is fully closed. A connector that looks tidy from outside can still have one conductor that is not seated correctly.
Compare the connector style with the installation
Lever connectors are useful where an installer needs to open the connection during testing or adjustment. Compact pole connectors can be useful where the product is supplied as a defined cable accessory. Neither choice is automatically correct for every circuit. The product instructions, conductor type and local electrical requirements decide that.
| Question | Why it matters |
|---|---|
| How many wires enter the joint? | It determines whether a two-way, three-way or multi-pole connector is appropriate. |
| What conductor size and material are being used? | The connector must be rated for the actual conductor, not an assumed equivalent. |
| Is the joint on the supply or load side of a driver? | The electrical conditions and required protection may differ. |
| Can the joint be inspected later? | A tidy connection still needs to remain safe, protected and accessible as required. |
Use the right pole count for cable accessories
Some lighting jobs call for a compact connector supplied as a cable accessory rather than a lever-operated joint. The 2 Pole Cable Quick Connectors and 3 Pole Cable Quick Connectors are useful examples of why the pole count needs to match the cable arrangement. Read the listing carefully and confirm the intended use before adding either to an installation schedule.
For a lighting contractor, this small check avoids rework: the connector pack, cable labels and wiring diagram all describe the same connection before the first fitting is installed.
Installation checks worth keeping on the job sheet
- Isolation: Confirm the circuit is isolated and tested before touching conductors.
- Compatibility: Match the connector to conductor size, material, pole count and the product's stated electrical limits.
- Preparation: Use the specified strip length and keep copper free from damage, insulation fragments and strain.
- Protection: Keep the joint in the enclosure or protected space required for the installation. Do not leave a connection loose above a ceiling or behind cabinetry.
- Inspection: Check each conductor is seated, each lever is closed where applicable, and the wiring remains identifiable.
- Testing: Complete the required testing and commissioning before the lighting is handed over.
Keep branches neat as the lighting plan grows
When several fittings are added to a room, the connector is only one part of the planning. Give each branch a clear label, keep drivers and connectors grouped sensibly, and leave a record of what the joint supplies. This is especially useful in kitchens, display joinery and retail installations where a future cabinet or shelf may hide the original wiring route.
A clear wiring plan also helps when the design changes. If one pendant becomes three downlights or a cabinet run is extended, the installer can see which branch is being altered instead of opening every junction in the space.
Frequently asked questions
Do quick wire connectors save time on lighting installations?
They can shorten the physical joining step and make inspection easier, provided the connector is suitable for the conductors and installation. They do not replace isolation, testing, protection or competent electrical work.
How do I choose between a two-way and three-way connector?
Count the conductors that must enter the joint. A two-way connector is for a two-conductor connection, while a three-way connector is intended for a three-conductor branch when the product ratings and instructions support that use.
Can I use any quick connector with an LED driver?
No. Check the connector's conductor range, material compatibility, electrical ratings and position in the circuit. The driver instructions and the connector instructions should both support the proposed connection.
Should quick wire connectors be left loose in a ceiling or cabinet?
Do not leave connections loose or exposed. The finished joint needs the protection, enclosure and accessibility required by the installation, with wiring secured against strain and sharp edges.
What should I check before ordering cable quick connectors?
Check the pole count, conductor size, conductor material, pack format, intended application and the product's installation instructions. Confirm the connector matches the wiring plan before ordering.
Quick wire connectors are most useful when they make a well-planned lighting installation easier to build, inspect and maintain. Match the connector to the actual wiring, keep the joint protected, and use the product instructions and a qualified electrician to confirm the final method.
