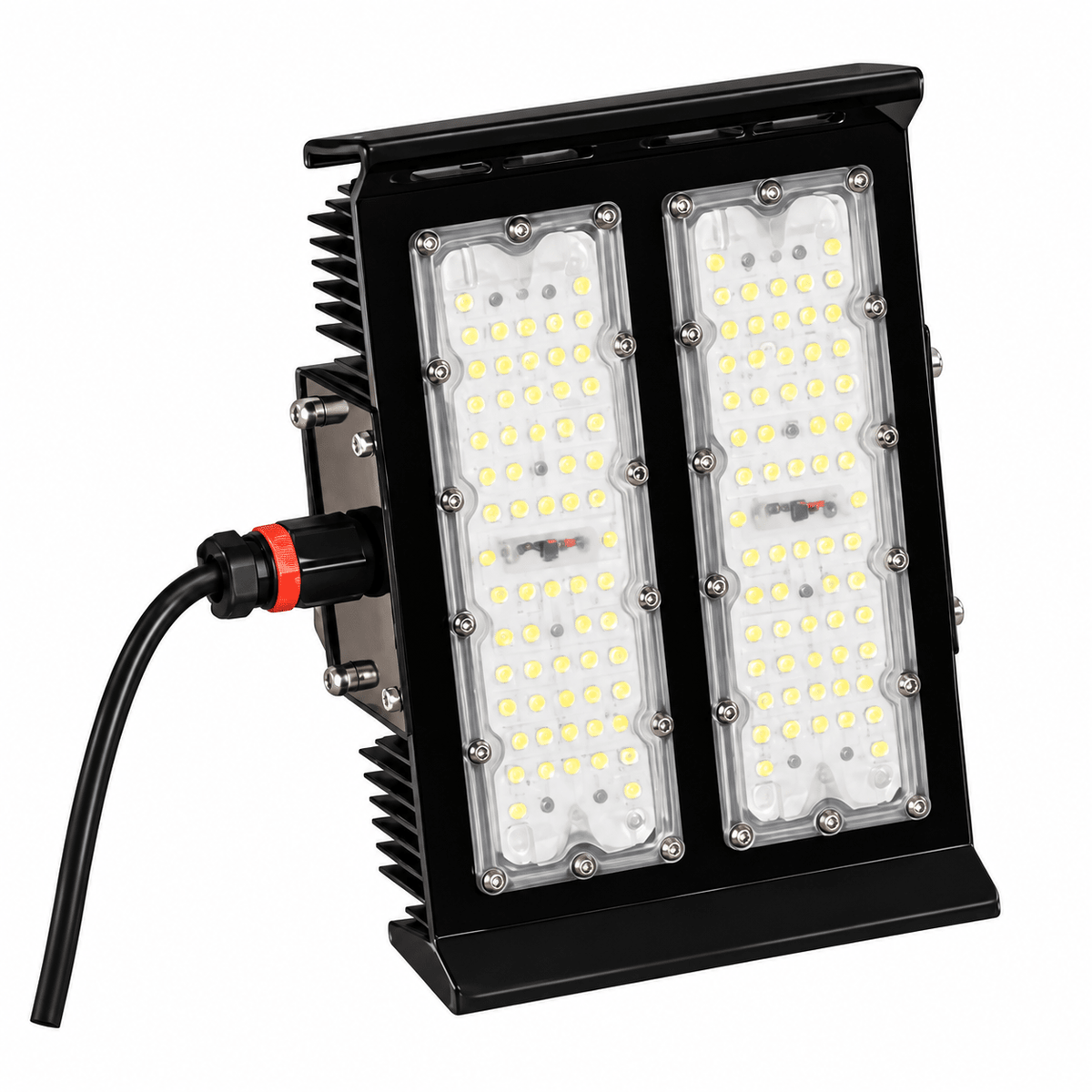

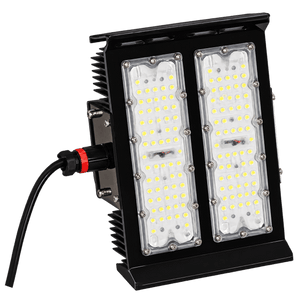

ZLT 75W LED Explosion Proof Floodlight – Hazardous Area Zone 2 / 21 / 22

The ZLT 75W LED Explosion Proof Floodlight is engineered for safe and reliable operation in hazardous environments where explosive gases or dust may be present. Designed to meet Zone 2, 21, and 22 requirements, this robust fitting delivers high-performance illumination while ensuring maximum safety compliance.

With an output of 10,500 lumens and an efficacy of 140lm/W, this floodlight provides powerful, energy-efficient lighting for industrial applications. Its durable construction, IP65 rating, and certified explosion-proof design make it ideal for demanding environments such as chemical plants, fuel depots, and manufacturing facilities.

Practical Tip: Always ensure explosion-proof fittings are installed according to certified zone requirements and paired with appropriate cable glands and protection systems for full compliance and safety.

Key Features

• Certified for hazardous areas (Zone 2 / 21 / 22)
• High efficiency output at 140 lumens per watt
• Explosion-proof design with Ex certification
• Durable industrial-grade construction
• IP65 rated for dust and water protection
• Multiple beam angle options (30°, 60°, 90°, 120°)
• Fast start-up time (0.1 seconds)
• 5-year warranty for industrial reliability

Specifications

• Model: ZLT75
• Wattage: 75W
• Voltage: 100–277V
• Frequency: 50Hz
• Lumen Output: 10,500lm
• Luminous Efficacy: 140lm/W
• Colour Temperature Options: 3000K / 4000K / 5000K / 6500K – Understanding Colour Temperature
• CRI: <80
• Power Factor: 0.97
• Efficiency: 93%
• Start-up Time: 0.1s
• THD: 18%
• Beam Angles: 30° / 60° / 90° / 120°
• UGR: 22
• SDCM: 3
• Material: Industrial-grade housing
• IP Rating: IP65 – Outdoor & Industrial Use
• Ex Marking: Ex ec IIC T4 Gc, Ex tb IIIC T135°C Db IP65
• Operating Temperature: 20°C to +70°C
• Ambient Temperature: -40°C to +45°C
• Lifespan: 50,000 hours (L80 B10)
• Dimensions: 190mm × 300mm × 80mm
• Weight: 5.1kg
• Warranty: 5 Years

Ideal Applications

• Oil and gas facilities
• Chemical plants
• Fuel storage and depots
• Mining and industrial environments
• Dust-prone manufacturing areas

Why Choose the ZLT Explosion Proof Floodlight

• Certified safety for hazardous zones
• High output with excellent efficiency
• Built for harsh industrial environments
