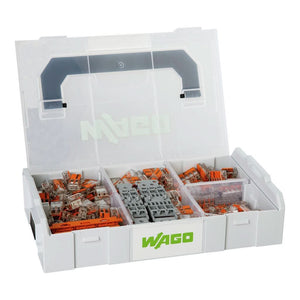

WAGO 221 L-BOXX® Mini – Splicing Connector Set (887-850)
Professional assortment of WAGO 221 Series lever connectors in a compact L-BOXX® Mini case. Ideal for maintenance, service calls and site installs, this kit covers fast, tool-free terminations of solid, stranded and fine-stranded conductors up to 4 mm² with add-on carriers for rail/screw mounting and an inline connector for in-line splices.

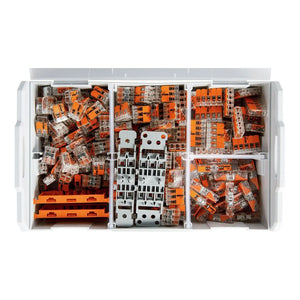

What’s in the box

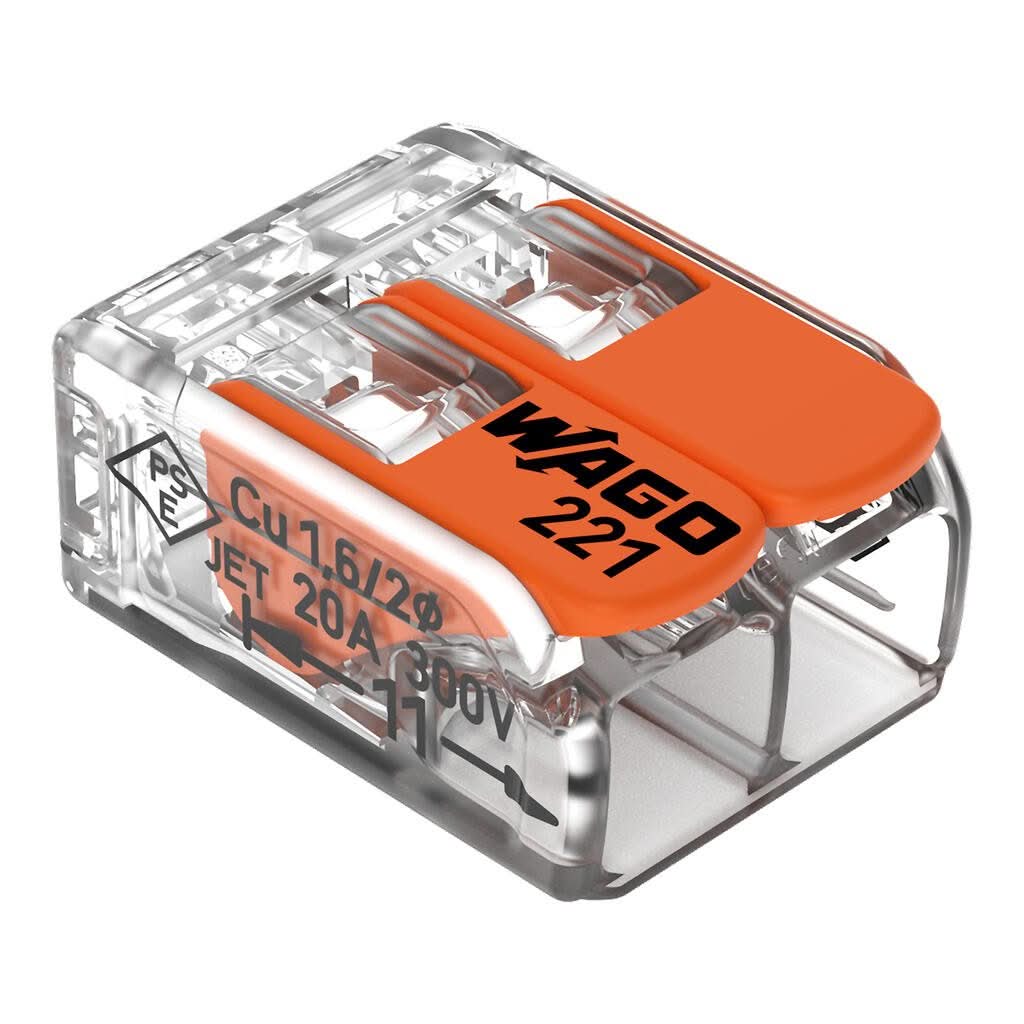

- 221-412 – 2-conductor compact splicing connectors (100)

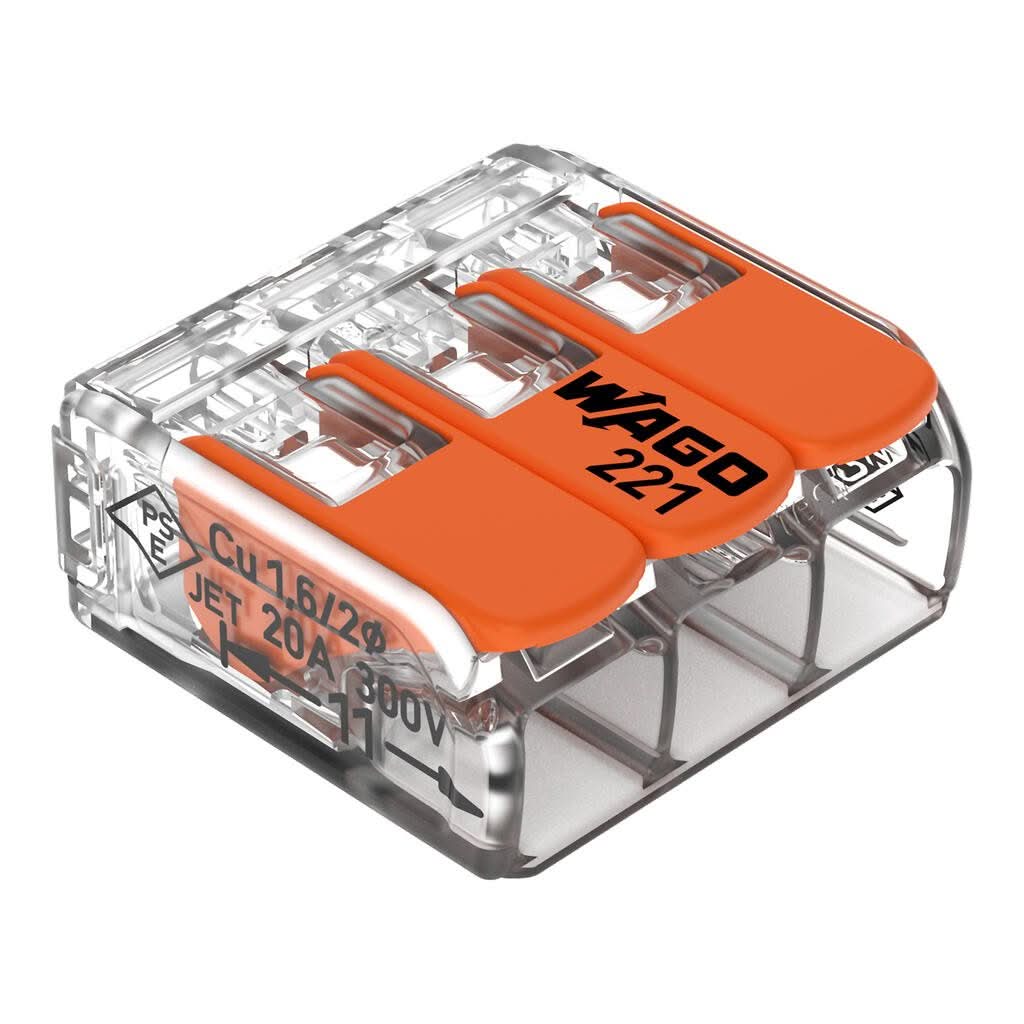

- 221-413 – 3-conductor compact splicing connectors (100)

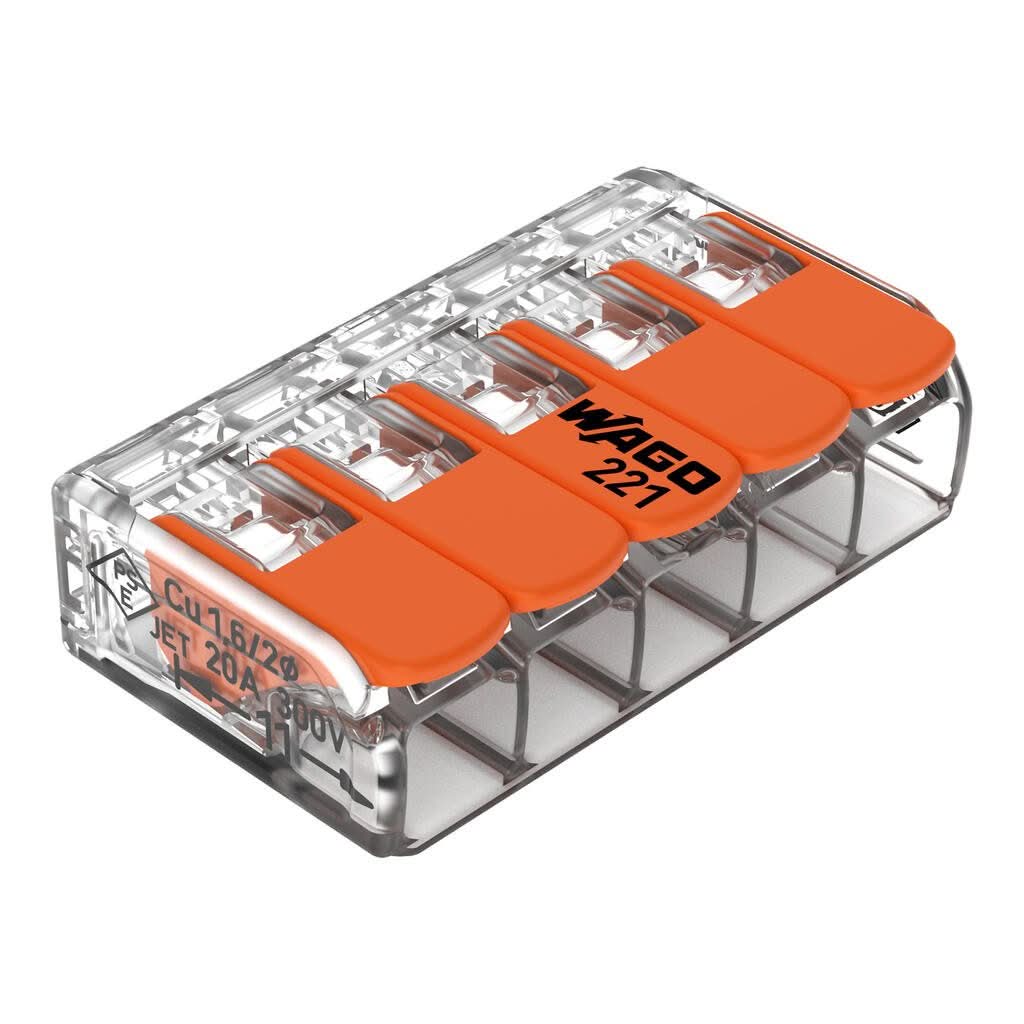

- 221-415 – 5-conductor compact splicing connectors (25)

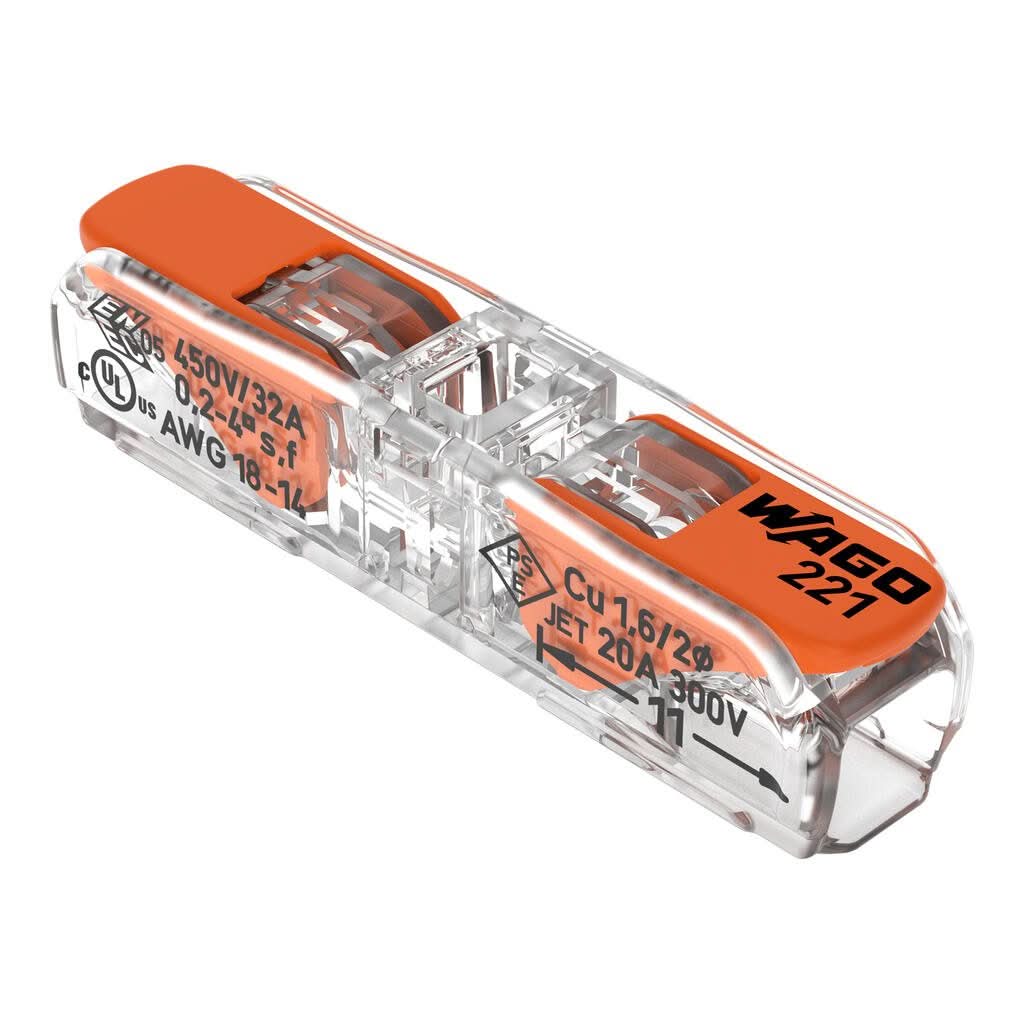

- 221-2411 – Inline splicing connector, 2-conductor (30)

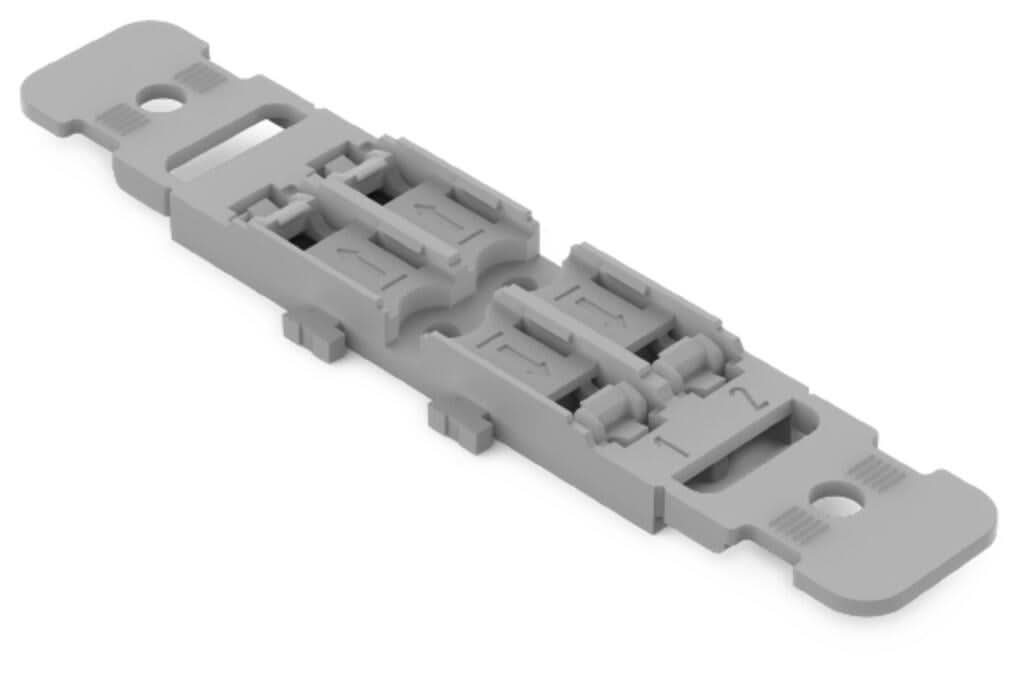

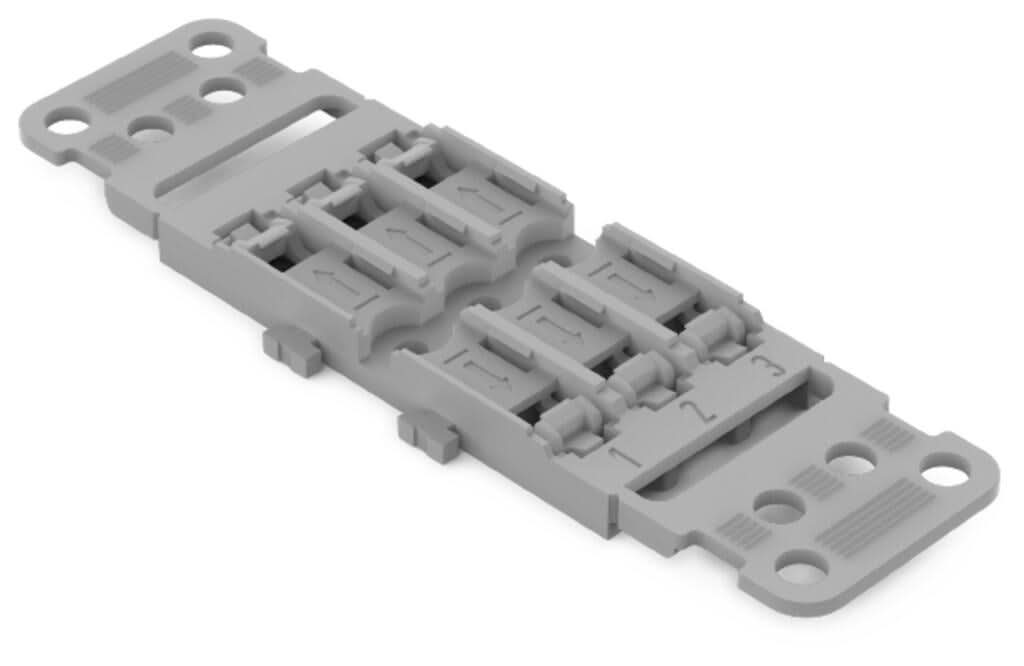

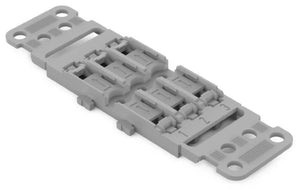

- 221-2503 – 3-way mounting carrier with strain relief for inline connector, screw-mount (1)
- 221-2502 – 2-way mounting carrier with strain relief for inline connector, screw-mount (1)

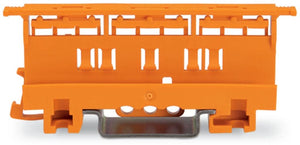

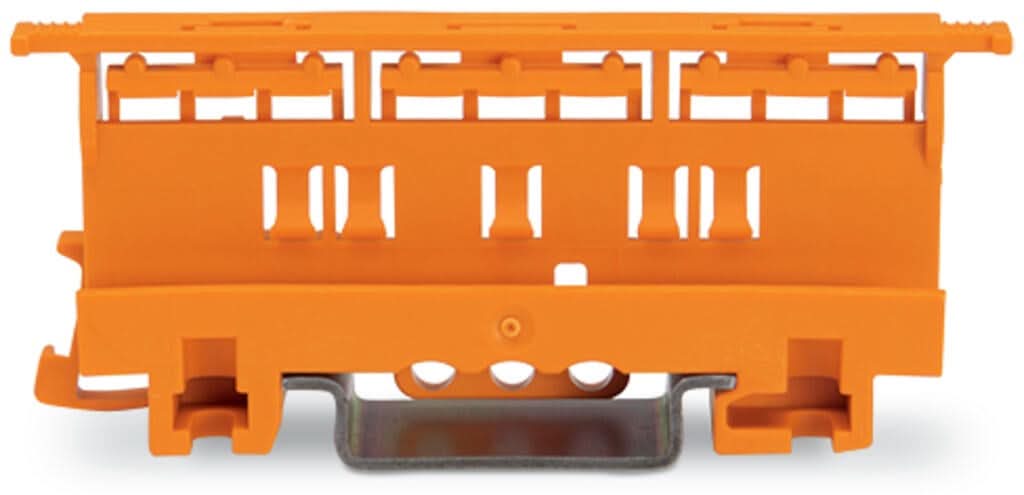

- 221-500 – Mounting carriers for 221 (DIN-35 rail/screw mount) (2)
Key features
- Tool-free lever actuation for all conductor types (solid, stranded, fine-stranded) up to 4 mm²
- Transparent housings for visual inspection; orange levers for easy ID
- Inline connector + carriers included for neat, strain-relieved installs
- Compact, rugged L-BOXX® Mini keeps connectors sorted and ready
- Surrounding air temperature rating: max 85 °C (T85) for 221 series
Specifications
- Item No.: 887-850 (WAGO 221 Series L-BOXX® Mini)
- Conductor range: up to 4 mm² (24–12 AWG typical for 221 splicing)
- Kit size (case): W 259 × H 63 × D 155 mm; weight ~900 g
- Mounting: DIN-35 rail/screw via 221-500 carriers; screw via 221-2502/2503
- Compliance: RoHS compliant
Ideal for
- Service & maintenance kits, electricians on the go
- Lighting retrofits, junction box work, control wiring
- Clean, inspectable terminations with minimal space
