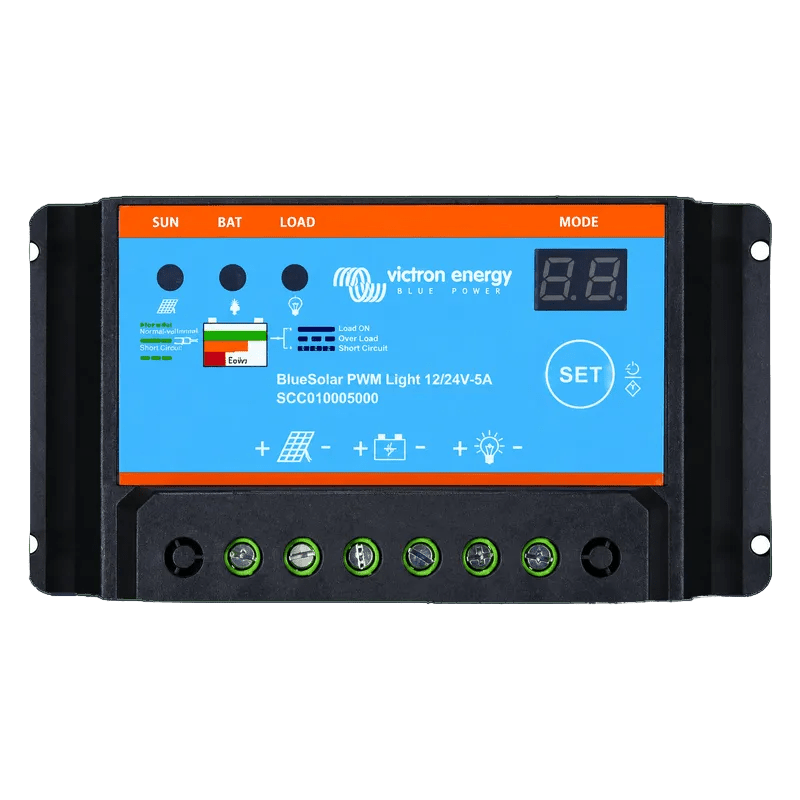

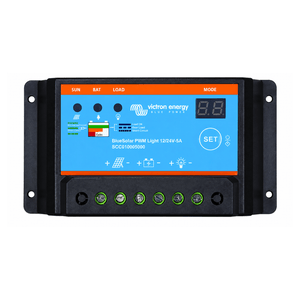

This Victron BlueSolar PWM-Light controller manages charging at up to 5A on 12V or 24V solar battery systems, with automatic voltage detection and low-voltage load disconnect.
The PWM-Light uses automatic 12V/24V system detection and three-stage PWM charging for small solar lighting and backup-power systems. Its load output provides manual control, low-voltage disconnect and a timer, while the IP20 enclosure is intended for indoor vertical wall mounting.
Specifications
- Rated charge current: 5A
- Battery voltage: 12V or 24V with automatic system voltage detection
- Maximum solar voltage: 28V for 12V systems and 55V for 24V systems
- Charging type: PWM with bulk, absorption and float stages
- Load output: Manual control with low-voltage disconnect and timer
- Protection: Battery reverse polarity fuse, output short circuit and over-temperature protection
- Self-consumption: Less than 10mA
- IP rating: IP20
- Mounting: Vertical wall mount, indoor only
- Dimensions: 70mm × 133mm × 33.5mm
- Operating temperature: -20°C to +50°C at full load
- Terminal size: 5mm² / AWG10
- Weight: 0.15kg
Choose an indoor location: Mount the IP20 controller vertically on a suitable indoor wall, away from moisture and condensation.
Confirm system voltage: Verify whether the battery system is 12V or 24V before connection. The controller detects the system voltage automatically at start-up.
Check the solar array: Confirm the array is appropriate for the system and remains within the maximum 28V solar voltage for 12V systems or 55V for 24V systems.
Allow connection space: Provide clearance for the 70mm × 133mm × 33.5mm enclosure and use suitable 5mm² / AWG10 conductors where required.
Test the load output: After installation, check charging, low-voltage disconnect and the selected timer setting. Electrical and solar work should be completed by a qualified person.
What is the charge rating?
This model has a rated charge current of 5A.
Does it support 12V and 24V batteries?
Yes. It automatically detects a 12V or 24V system at start-up.
What solar panel voltage can it accept?
The maximum solar voltage is 28V for a 12V system and 55V for a 24V system.
Does it include load protection?
Yes. The load output includes low-voltage disconnect, and the controller provides reverse-polarity, short-circuit and over-temperature protection.
Can it be installed outdoors?
No. The IP20 enclosure is intended for indoor vertical wall mounting.
What are the dimensions?
The controller measures 70mm × 133mm × 33.5mm and weighs 0.15kg.
This Victron BlueSolar PWM-Light controller manages charging at up to 5A on 12V or 24V solar battery systems, with automatic voltage detection and low-voltage load disconnect.
The PWM-Light uses automatic 12V/24V system detection and three-stage PWM charging for small solar lighting and backup-power systems. Its load output provides manual control, low-voltage disconnect and a timer, while the IP20 enclosure is intended for indoor vertical wall mounting.
Specifications
- Rated charge current: 5A
- Battery voltage: 12V or 24V with automatic system voltage detection
- Maximum solar voltage: 28V for 12V systems and 55V for 24V systems
- Charging type: PWM with bulk, absorption and float stages
- Load output: Manual control with low-voltage disconnect and timer
- Protection: Battery reverse polarity fuse, output short circuit and over-temperature protection
- Self-consumption: Less than 10mA
- IP rating: IP20
- Mounting: Vertical wall mount, indoor only
- Dimensions: 70mm × 133mm × 33.5mm
- Operating temperature: -20°C to +50°C at full load
- Terminal size: 5mm² / AWG10
- Weight: 0.15kg
