Specifications & Features

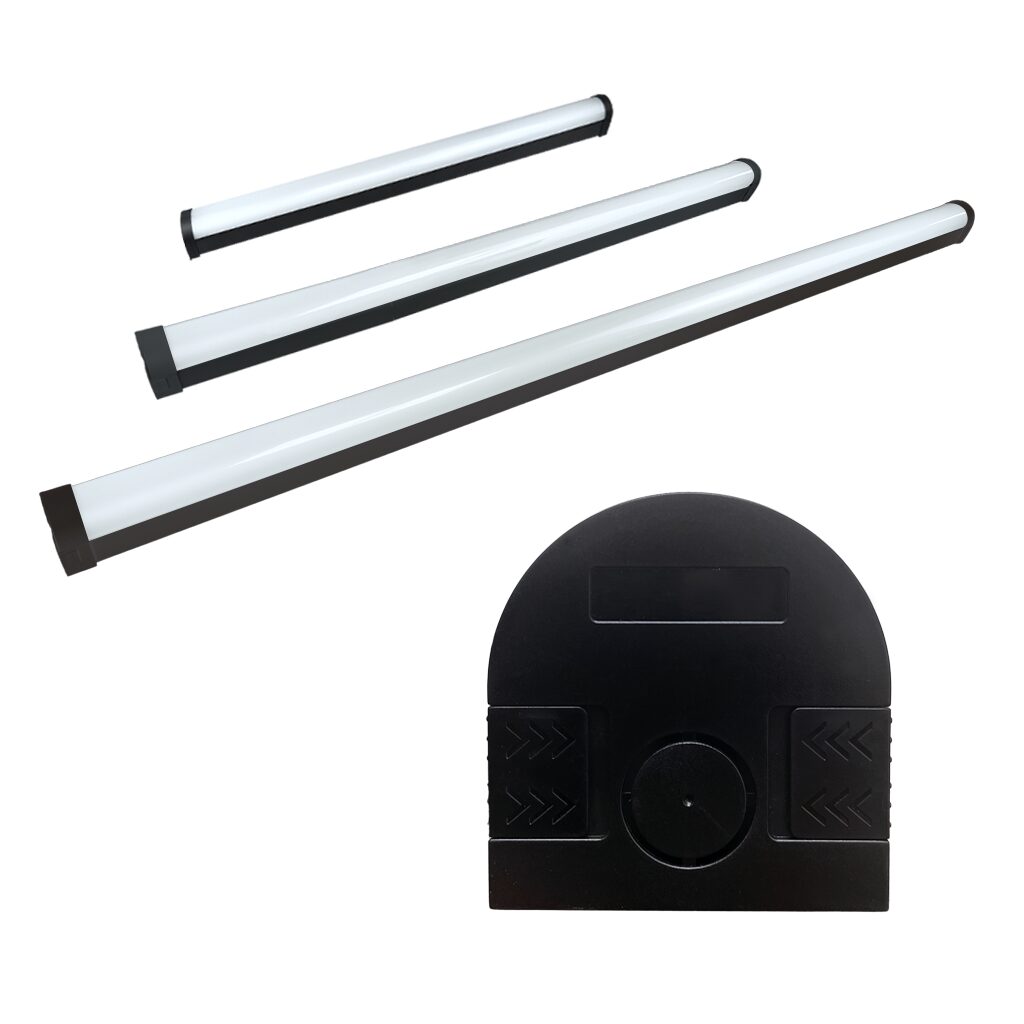

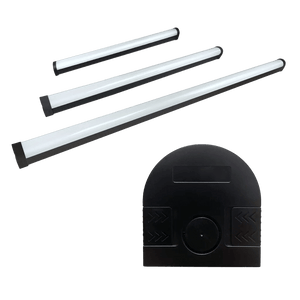

40W 4ft Oarca IP33 Linkable LED Batten Linear – 3CCT
The 40W 4ft Oarca IP33 Linkable LED Batten Linear is a high-output linear fitting designed for clean, efficient general lighting. With 6000lm output, 3CCT colour selection, and a flicker-free design, it offers a practical solution for commercial, residential, and utility spaces.
This batten is ideal for garages, workshops, offices, storerooms, retail areas, passages, utility rooms, and back-of-house spaces where bright, even light is needed. The 3CCT function allows you to select between 3000K Warm White, 4000K Cool White, and 6000K Daylight to suit the space and application.
The linkable design makes it useful for longer runs where multiple fittings are required in a neat linear layout. Built with a PC and iron housing, Epistar 2835 LED chips, 1.5kV surge protection, and optional adjustable motion sensor compatibility, the Oarca is a dependable choice for everyday indoor lighting projects.
Practical Tip:
Use 3CCT battens where one product may be used across different areas, allowing you to choose warmer light for relaxed spaces or brighter daylight for task-focused zones.
Key Features
- 40W 4ft linkable LED batten linear
- 3CCT selectable colour temperature
- 3000K Warm White / 4000K Cool White / 6000K Daylight
- 6000lm light output
- Flicker-free performance
- Available in white or black
- Wide 120° beam angle
- Epistar 2835 LED chips
- PC and iron housing
- Power factor 0.9
- CRI >80
- 1.5kV surge protection
- Optional adjustable motion sensor
- Non-dimmable operation
- 5 year warranty
Specifications
- Product: 40W 4ft Oarca IP33 Linkable Batten Linear
- Wattage: 40W
- Colour: White / Black
- Colour Temperature: 3CCT – 3000K Warm White / 4000K Cool White / 6000K Daylight
- Lumen Output: 6000lm
- Power Factor: 0.9
- CRI: >80
- Input Voltage: 190V–277V
- Operating Temperature: -20°C to 40°C
- LED Chips: Epistar 2835
- Beam Angle: 120°
- Housing: PC + Iron
- Surge Protection: 1.5kV
- Dimmable: No
- Certifications: SANS IEC60598-2-1, SANS IEC61347-2-13, CE, TUV, GS, ERP
- IES File: Yes
- Additional Features: Flicker Free, Optional Adjustable Motion Sensor
- IP Rating: IP33
- Warranty: 5 Years
Ideal Applications
- Garages and workshops
- Offices and commercial interiors
- Storerooms and utility rooms
- Retail and back-of-house areas
- Passages and service areas
- General indoor linear lighting
Why Choose This Oarca LED Batten?
- 3CCT selection gives flexibility across Warm White, Cool White, and Daylight lighting needs
- Linkable design is ideal for neat continuous linear lighting runs
- High 6000lm output delivers strong, efficient light for practical spaces
Use Case Ideas: How, Where & Why!
Home Office Lighting
Create a productive workspace with adjustable light settings to suit different tasks.
Retail Environment
Enhance product displays with customizable lighting to attract customers and highlight merchandise.
Workshop Illumination
Ensure precise and clear visibility for intricate tasks with bright, concentrated lighting.
Warehouse Lighting
Improve safety and efficiency in storage areas with consistent, bright lighting coverage.
Garage Light Solution
Install durable and versatile lighting that functions effectively for repairs and vehicle maintenance.
Installation Guidance, Tips & Tricks
Mount the Light
Securely fix the batten light onto the chosen surface using the appropriate screws and brackets.
Electrical Connections
Connect the wires to the main power supply, ensuring that you match the live, neutral, and earth wires correctly.
Configure CCT
Set the desired colour temperature using the switch, to achieve the preferred lighting effect.
Link Additional Units
Combine multiple lights by connecting them via linking cords for uniform lighting across a larger space.
Test the Installation
Power on to check that the light is functioning correctly and adjust the CCT settings if required.
Frequently Asked Questions...
What is 3CCT?
3CCT refers to the ability to choose between three colour temperatures: warm white, cool white, and daylight.
Can I link more than one batten light?
Yes, you can link multiple batten lights together to cover larger spaces seamlessly.
Is the light dimmable?
No, this specific model is not dimmable, but it offers adjustable colour temperature settings.
What spaces is this light suited for?
This light is perfect for home offices, retail spaces, workshops, and more, providing versatile and ample illumination.
How do I set the colour temperature?
Use the integrated switch to toggle between the three colour temperature settings according to your preference.
Specifications & Features
40W 4ft Oarca IP33 Linkable LED Batten Linear – 3CCT
The 40W 4ft Oarca IP33 Linkable LED Batten Linear is a high-output linear fitting designed for clean, efficient general lighting. With 6000lm output, 3CCT colour selection, and a flicker-free design, it offers a practical solution for commercial, residential, and utility spaces.
This batten is ideal for garages, workshops, offices, storerooms, retail areas, passages, utility rooms, and back-of-house spaces where bright, even light is needed. The 3CCT function allows you to select between 3000K Warm White, 4000K Cool White, and 6000K Daylight to suit the space and application.
The linkable design makes it useful for longer runs where multiple fittings are required in a neat linear layout. Built with a PC and iron housing, Epistar 2835 LED chips, 1.5kV surge protection, and optional adjustable motion sensor compatibility, the Oarca is a dependable choice for everyday indoor lighting projects.
Practical Tip:
Use 3CCT battens where one product may be used across different areas, allowing you to choose warmer light for relaxed spaces or brighter daylight for task-focused zones.
Key Features
- 40W 4ft linkable LED batten linear
- 3CCT selectable colour temperature
- 3000K Warm White / 4000K Cool White / 6000K Daylight
- 6000lm light output
- Flicker-free performance
- Available in white or black
- Wide 120° beam angle
- Epistar 2835 LED chips
- PC and iron housing
- Power factor 0.9
- CRI >80
- 1.5kV surge protection
- Optional adjustable motion sensor
- Non-dimmable operation
- 5 year warranty
Specifications
- Product: 40W 4ft Oarca IP33 Linkable Batten Linear
- Wattage: 40W
- Colour: White / Black
- Colour Temperature: 3CCT – 3000K Warm White / 4000K Cool White / 6000K Daylight
- Lumen Output: 6000lm
- Power Factor: 0.9
- CRI: >80
- Input Voltage: 190V–277V
- Operating Temperature: -20°C to 40°C
- LED Chips: Epistar 2835
- Beam Angle: 120°
- Housing: PC + Iron
- Surge Protection: 1.5kV
- Dimmable: No
- Certifications: SANS IEC60598-2-1, SANS IEC61347-2-13, CE, TUV, GS, ERP
- IES File: Yes
- Additional Features: Flicker Free, Optional Adjustable Motion Sensor
- IP Rating: IP33
- Warranty: 5 Years
Ideal Applications
- Garages and workshops
- Offices and commercial interiors
- Storerooms and utility rooms
- Retail and back-of-house areas
- Passages and service areas
- General indoor linear lighting
Why Choose This Oarca LED Batten?
- 3CCT selection gives flexibility across Warm White, Cool White, and Daylight lighting needs
- Linkable design is ideal for neat continuous linear lighting runs
- High 6000lm output delivers strong, efficient light for practical spaces
