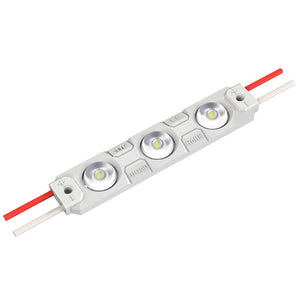

LED light strip module with three LED lights on a white background

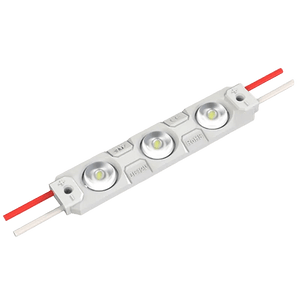

ZE03BA7 three-chip LED module at an angle on a transparent background, showing three lens domes and the polarity markings.

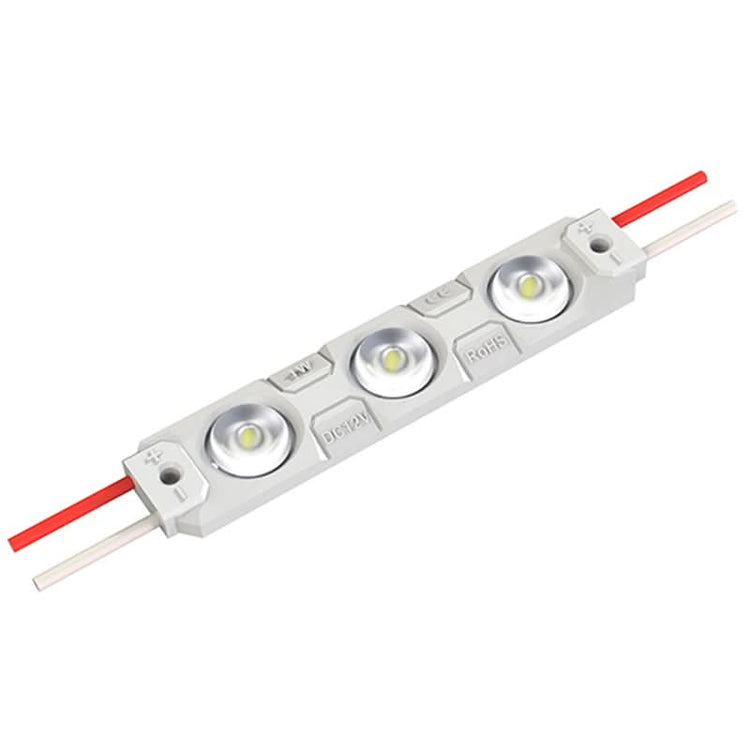

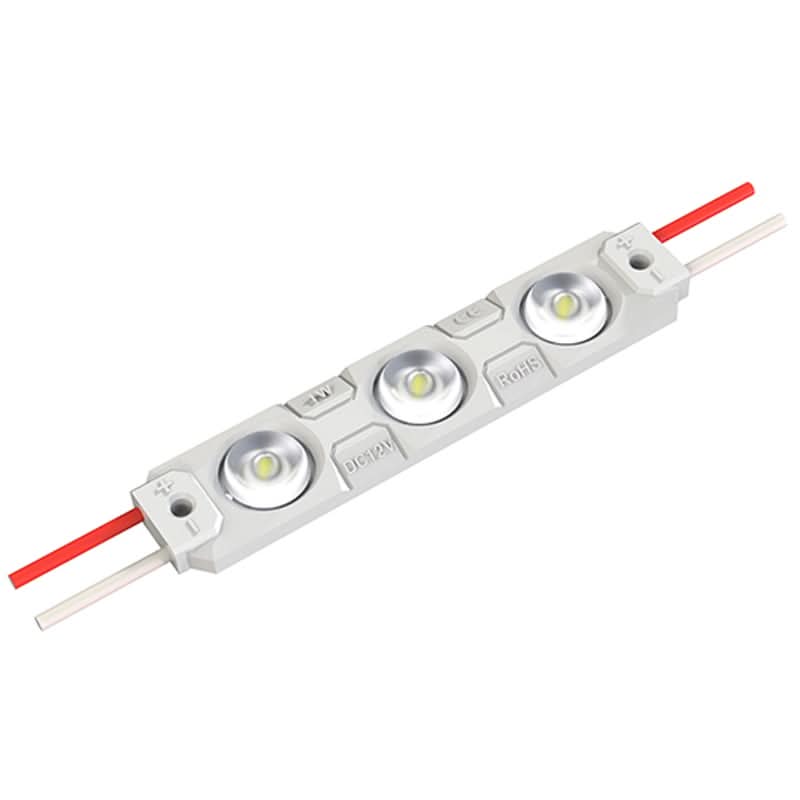

Three-chip LED module viewed at an angle on a white background, with three lens domes and red and white leads.
    LED light strip module with three LED lights on a white background
    ZE03BA7 three-chip LED module at an angle on a transparent background, showing three lens domes and the polarity markings.
    Three-chip LED module viewed at an angle on a white background, with three lens domes and red and white leads.
LED light strip module with three LED lights on a white background
ZE03BA7 three-chip LED module at an angle on a transparent background, showing three lens domes and the polarity markings.
Three-chip LED module viewed at an angle on a white background, with three lens domes and red and white leads.
LED light strip module with three LED lights on a white background
ZE03BA7 three-chip LED module at an angle on a transparent background, showing three lens domes and the polarity markings.
Three-chip LED module viewed at an angle on a white background, with three lens domes and red and white leads.
    LED light strip module with three LED lights on a white background
    ZE03BA7 three-chip LED module at an angle on a transparent background, showing three lens domes and the polarity markings.
    Three-chip LED module viewed at an angle on a white background, with three lens domes and red and white leads.
LED light strip module with three LED lights on a white background
ZE03BA7 three-chip LED module at an angle on a transparent background, showing three lens domes and the polarity markings.
Three-chip LED module viewed at an angle on a white background, with three lens domes and red and white leads.

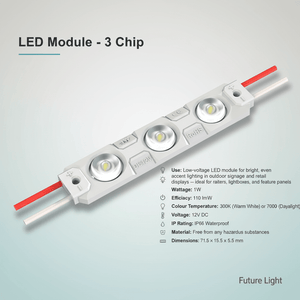

Specifications & Features

ZE03BA7 is a 12V DC, 1W three-chip LED module with 7000K daylight output. It is designed for illuminated letters and light boxes with an internal depth of 6–10cm.

Sign makers can use it to backlight letter faces, while sign installers and electrical contractors can plan it into enclosed signs for shopping centres, banks and commercial buildings. Keep the module inside the sign; do not expose it on an open site.



Specifications

  • Model: ZE03BA7
  • LEDs: 3 × 2835 LEDs
  • Power: 1W
  • Luminous flux: 110 lm
  • Colour temperature: : 7000K (Daylight)
  • Input: DC 12V
  • Driving method: Constant voltage
  • Colour rendering index: ≥80 Ra
  • Beam angle: 165°
  • Protection rating: IP66

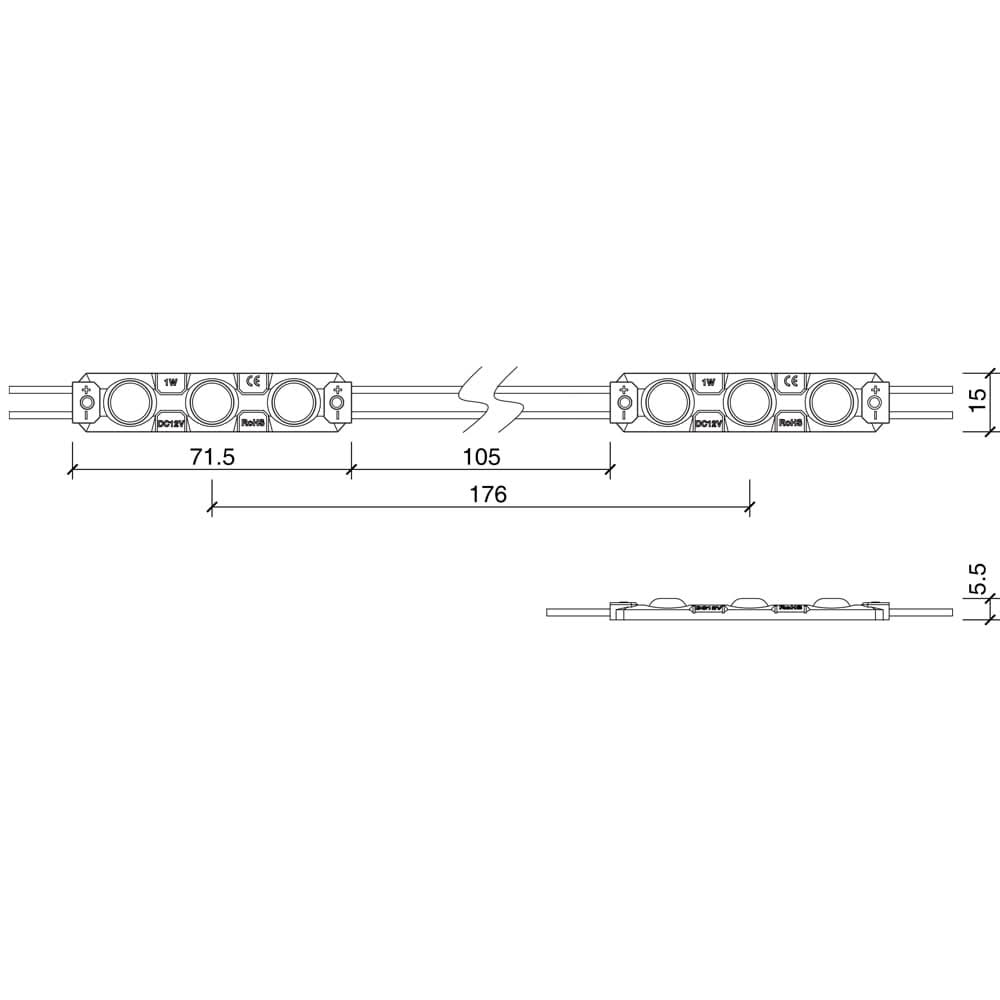

  • Dimensions: 71.5 × 15.5 × 5.5mm
  • Operating temperature: −25°C to +60°C
  • Storage temperature: −25°C to +70°C
  • Maximum modules per string: 20
  • Power-supply lead: Under 2m between the supply and module
  • Warranty: 3 years
Installation Guidance, Tips & Tricks

Power off and confirm the supply: Switch off power before fitting the module. Use a 12V DC constant-voltage supply with correctly sized wiring.



Plan the sign layout: Position the modules within illuminated letters or a light box with 6–10cm internal depth. Connect no more than 20 modules per constant-voltage string and keep the power-supply lead under 2m.



Secure each module: Use screws or neutral glass cement at the module edges. Avoid damaging the module or its leads, and do not use acidic or alkaline adhesive or organic solvents.



Connect with correct polarity: Follow the positive and negative markings on the module. Isolate all wiring points and protect the wire ends and connectors against moisture and corrosion.



Keep the module inside the sign: This module is designed for use in an illuminated sign. Do not leave it exposed on an open site. Installation and maintenance should be carried out by qualified professionals.

Frequently asked questions

What is the colour temperature?

7000K daylight.



What supply does the ZE03BA7 require?

A 12V DC constant-voltage supply. Each module is rated at 1W.



Can the module be exposed outdoors?

No. Install it inside an illuminated sign and do not expose it on an open site.



How many modules can be connected in one string?

Up to 20 modules in a constant-voltage string. Keep the lead from the power supply to the module under 2m.



What sign depth is it designed for?

Illuminated letters and light boxes with an internal depth of 6–10cm.

Specifications & Features

ZE03BA7 is a 12V DC, 1W three-chip LED module with 7000K daylight output. It is designed for illuminated letters and light boxes with an internal depth of 6–10cm.

Sign makers can use it to backlight letter faces, while sign installers and electrical contractors can plan it into enclosed signs for shopping centres, banks and commercial buildings. Keep the module inside the sign; do not expose it on an open site.



Specifications

  • Model: ZE03BA7
  • LEDs: 3 × 2835 LEDs
  • Power: 1W
  • Luminous flux: 110 lm
  • Colour temperature: : 7000K (Daylight)
  • Input: DC 12V
  • Driving method: Constant voltage
  • Colour rendering index: ≥80 Ra
  • Beam angle: 165°
  • Protection rating: IP66
  • Dimensions: 71.5 × 15.5 × 5.5mm
  • Operating temperature: −25°C to +60°C
  • Storage temperature: −25°C to +70°C
  • Maximum modules per string: 20
  • Power-supply lead: Under 2m between the supply and module
  • Warranty: 3 years

LED Module - 3 Chip - Daylight White (7000K)

4.7

13 reviews SKU: ZE03BA7
Regular price
R 17.00
Sale price
R 17.00
Regular price
R 29.00
ZE03BA7 is a 12V DC, 1W three-chip LED module with 7000K daylight output. It is designed for illuminated letters and light boxes with an internal depth of 6–10cm.
Secure payment options
For 6–10cm Sign Depth
Designed for illuminated channel letters and light boxes with 6–10cm internal depth.
7000K Daylight
This ZE03BA7 module has a fixed 7000K daylight output.
For Enclosed Signs
Use inside illuminated letters or light boxes; do not leave the module exposed on an open site.
Clear 165° Optic
The module uses a clear 165° optic for sign backlighting.
