About

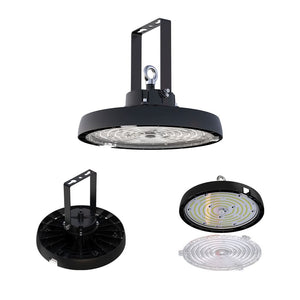

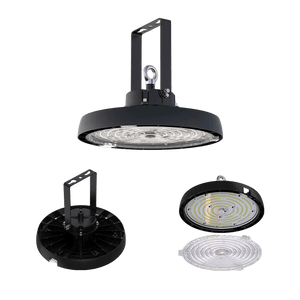

Built for busy retail floors and other high-ceiling commercial areas, this LED high bay gives you strong, even light where staff and customers need clear visibility. It’s a practical, mains-powered fitting for general lighting with the flexibility to fine-tune brightness and aim light more precisely where required.
Specifications
-
Wattage (Watts):
- 65W
- 100W
- 160W
-
Lumen Output (Lumens):
- 10,400lm
- 16,000lm
- 25,600lm
- Colour Temperature: 4000K / 5000K / 5700K – Cool White or Daylight – Understanding Colour Temperature
- Voltage: 100-277Vac
- Dimmable: Yes 3 in 1 (0-10V, PWM, Resistor)
- Material: ADC12 Aluminium (Coastal grade)
- IP Rating: IP65

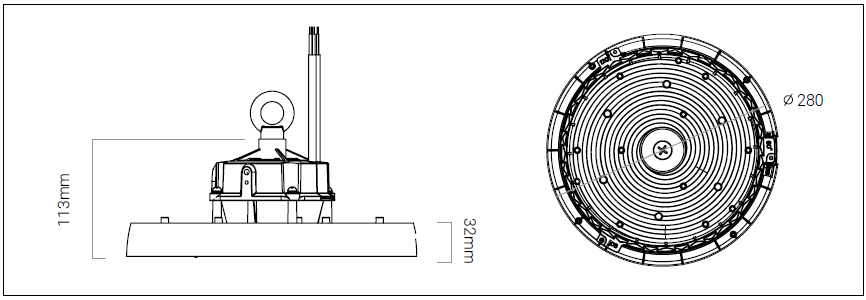

- Dimensions: Ø280 x 113mm
- CRI: >70

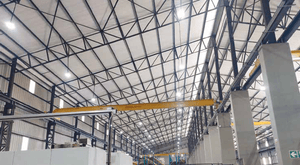

Warehouse aisle picking lanes: Mount at 6–8m and select 60° beam to brighten long aisles for accurate picking; use 5000K and dimming to reduce glare during off‑peak hours.
Retail store merchandising zones: Use 90° beam over gondolas for punchy product lighting; set 4000K for natural colour and switch to 65W near tills to soften brightness.
Manufacturing workstations and lines: Mount at 5–7m with 120° beam for uniform task light; choose 5700K for inspection areas and dim during breaks to save energy.
Indoor sports courts and gyms: Aim 90° beam from 7–8m to cut glare on courts; set 5000K for clarity and use dimming presets for training versus events.
Logistics loading bays and canopies: Install under canopies with IP65 protection; choose 90° beam for yard coverage and 5000K for driver visibility during night loading.
Choose Suitable Wattage And Colour: Select 65W, 100W, or 160W and 4000K, 5000K, or 5700K to match required brightness and ambience for high-ceiling commercial interiors.
Verify Mains Voltage Supply: Ensure the power source is within 100-277Vac and switch off power before connection to this mains-powered fitting.
Position For Even Coverage: Locate fixtures in high-ceiling commercial areas to deliver strong, even light where staff and customers need clear visibility.
Aim Light Toward Tasks: Adjust the fixture’s aim to direct light precisely onto key areas, reducing shadows and improving visibility across the space.
Maintain Clean Aluminium Housing: Periodically wipe the ADC12 aluminium housing to remove dust or salt buildup, helping preserve performance and appearance in demanding commercial environments.
Where is this high bay best suited?
It’s built for busy retail floors and other high-ceiling commercial areas.
Is it mains-powered?
Yes, it runs on 100-277Vac mains power.
What colour temperatures can I choose?
You can choose 4000K, 5000K, or 5700K in Cool White or Daylight.
What wattage options are available?
Options are 65W, 100W, and 160W.
What is the IP rating?
It is rated IP65.
Built for busy retail floors and other high-ceiling commercial areas, this LED high bay gives you strong, even light where staff and customers need clear visibility. It’s a practical, mains-powered fitting for general lighting with the flexibility to fine-tune brightness and aim light more precisely where required.
Specifications
-
Wattage (Watts):
- 65W
- 100W
- 160W
-
Lumen Output (Lumens):
- 10,400lm
- 16,000lm
- 25,600lm
- Colour Temperature: 4000K / 5000K / 5700K – Cool White or Daylight – Understanding Colour Temperature
- Voltage: 100-277Vac
- Dimmable: Yes 3 in 1 (0-10V, PWM, Resistor)
- Material: ADC12 Aluminium (Coastal grade)
- IP Rating: IP65
- Dimensions: Ø280 x 113mm
- CRI: >70
LED High Bay - Raptor 65-100-160W IP65
- Regular price
- R 1,647.00
- Sale price
- R 1,647.00
- Regular price
-
R 2,339.00
Couldn't load pickup availability
