Description

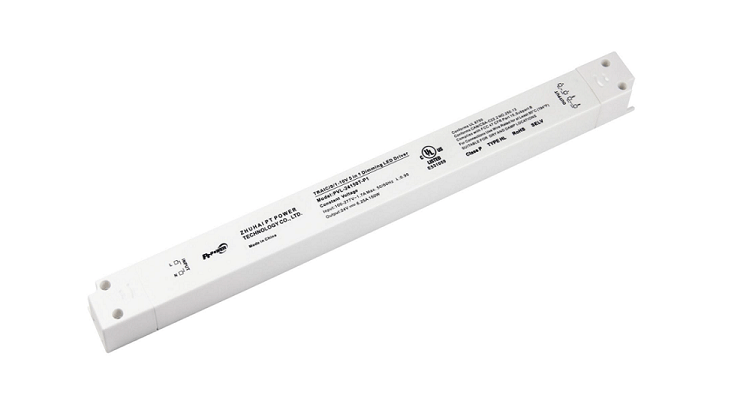

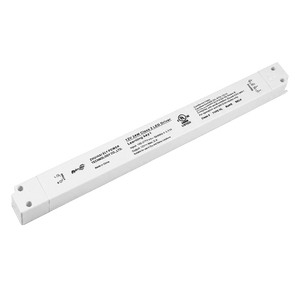

The 150W 5-in-1 dimmable LED power supply is designed to run any dimmable 24V LED Lights. This power supply can be dimmed from a light switch with a 500W LED dimmer module attached, 1-10Vdc, 0-10Vdc, 10V PWM or RX

Specifications

  • Input Voltage: 100-277Vac 50/60Hz
  • Output Voltage: 24Vdc
  • Wattage: 150W
  • Output: PWM Constant Voltage
  • Dimming Range: 0-100%
  • Ingress Protection: IP20
  • Suitable for indoor I, II, III class lighting applications
  • Dimensions: 364 x 31 x 23mm (L x W x H) 350g
  • Operating temperature: -30°C to 50°C
  • Efficiency: >92%
  • PF: >0.95 (@ 230Vac on 100% load)
  • Standby Consumption:: <0.5W
  • Overload Protection
    • Over-temperature Protection: 100°C
    • Overload Protection: 110-150% of load - Auto-recovery when the load is removed (Hiccup Mode)
    •  Short Circuit Protection: >150% of rated load - The device must be shut down for >15sec and re-energized to resume operation
Description

The 150W 5-in-1 dimmable LED power supply is designed to run any dimmable 24V LED Lights. This power supply can be dimmed from a light switch with a 500W LED dimmer module attached, 1-10Vdc, 0-10Vdc, 10V PWM or RX

Specifications

  • Input Voltage: 100-277Vac 50/60Hz
  • Output Voltage: 24Vdc
  • Wattage: 150W
  • Output: PWM Constant Voltage
  • Dimming Range: 0-100%
  • Ingress Protection: IP20
  • Suitable for indoor I, II, III class lighting applications
  • Dimensions: 364 x 31 x 23mm (L x W x H) 350g
  • Operating temperature: -30°C to 50°C
  • Efficiency: >92%
  • PF: >0.95 (@ 230Vac on 100% load)
  • Standby Consumption:: <0.5W
  • Overload Protection
    • Over-temperature Protection: 100°C
    • Overload Protection: 110-150% of load - Auto-recovery when the load is removed (Hiccup Mode)
    •  Short Circuit Protection: >150% of rated load - The device must be shut down for >15sec and re-energized to resume operation
Reviews

LED Dimmable Power Supply - 24Vdc 150W

🎉 28% Off - You're saving R 540.00 during our Black November Sale! 🖤
Regular price
R 1,329.00
Sale price
R 1,329.00
Regular price
R 1,869.00
Tax included.
The 150W 5-in-1 dimmable LED power supply is designed to run any dimmable 24V LED Lights. This power supply can be dimmed from a light switch with a 500W LED dimmer module attached, 1-10Vdc, 0-10Vdc, 10V PWM or RX
SKU: TN 24-150-TLZ PT Triac Dimmable
Get it Delivered in 2 - 7 Working Days!
Delivered to your home or businesss
Discounts for New & Loyal Clients
Description

The 150W 5-in-1 dimmable LED power supply is designed to run any dimmable 24V LED Lights. This power supply can be dimmed from a light switch with a 500W LED dimmer module attached, 1-10Vdc, 0-10Vdc, 10V PWM or RX

Specifications

  • Input Voltage: 100-277Vac 50/60Hz
  • Output Voltage: 24Vdc
  • Wattage: 150W
  • Output: PWM Constant Voltage
  • Dimming Range: 0-100%
  • Ingress Protection: IP20
  • Suitable for indoor I, II, III class lighting applications
  • Dimensions: 364 x 31 x 23mm (L x W x H) 350g
  • Operating temperature: -30°C to 50°C
  • Efficiency: >92%
  • PF: >0.95 (@ 230Vac on 100% load)
  • Standby Consumption:: <0.5W
  • Overload Protection
    • Over-temperature Protection: 100°C
    • Overload Protection: 110-150% of load - Auto-recovery when the load is removed (Hiccup Mode)
    •  Short Circuit Protection: >150% of rated load - The device must be shut down for >15sec and re-energized to resume operation
Description

The 150W 5-in-1 dimmable LED power supply is designed to run any dimmable 24V LED Lights. This power supply can be dimmed from a light switch with a 500W LED dimmer module attached, 1-10Vdc, 0-10Vdc, 10V PWM or RX

Specifications

  • Input Voltage: 100-277Vac 50/60Hz
  • Output Voltage: 24Vdc
  • Wattage: 150W
  • Output: PWM Constant Voltage
  • Dimming Range: 0-100%
  • Ingress Protection: IP20
  • Suitable for indoor I, II, III class lighting applications
  • Dimensions: 364 x 31 x 23mm (L x W x H) 350g
  • Operating temperature: -30°C to 50°C
  • Efficiency: >92%
  • PF: >0.95 (@ 230Vac on 100% load)
  • Standby Consumption:: <0.5W
  • Overload Protection
    • Over-temperature Protection: 100°C
    • Overload Protection: 110-150% of load - Auto-recovery when the load is removed (Hiccup Mode)
    •  Short Circuit Protection: >150% of rated load - The device must be shut down for >15sec and re-energized to resume operation
