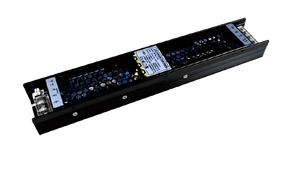

The 75W Triac dimmable LED power supply is designed to run any dimmable 12V LED Lights. This power supply can be dimmed from a light switch with an LED dimmer module attached

This power supply is protected against Output Shorts and Overloads and it restarts after the fault has cleared

As a guide, the 75W Power Supply can run:

• 12 Meters of 3528 Ultra Bright LED Strip Lights
• 4 Meters of 5050 Ultra Bright LED Strip Lights

Specifications

Input Voltage: 200-240Vac
Output Voltage: 12Vdc Max
Wattage: 75W @ 12V
Output: PWM Constant Voltage
Dimming Range: 0 - 100%
Dimming Curve: Linear
Ingress Protection: IP44
Dimensions: 205 x 63 x 35mm (L x W x H)
Operating temperature: -30 to +60 °C
