About
Specifications & Features

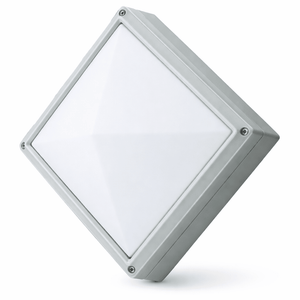

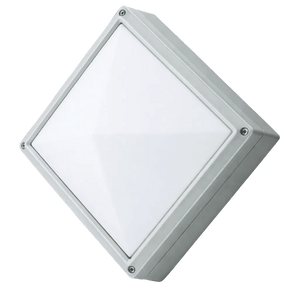

Introducing the LED Bulkhead - Diamond 20W, a robust and efficient lighting solution perfect for outdoor environments. This die-cast aluminium bulkhead with an opal polycarbonate cover ensures durability and a sleek design. Enjoy peace of mind with a 2 Year Warranty!
Specifications
- Wattage: 20 Watts
- Lumen Output: 1800
- Colour Temperature: Cool White (6000K) – Understanding Colour Temperature
- Voltage: Standard
- Material: Die-cast aluminium, opal polycarbonate cover
- IP Rating: IP65
- Dimensions: 270mm (W) x 270mm (H) x 135mm (D)
Use Case Ideas: How, Where & Why!
Pathway Safety Illumination
Illuminate garden pathways with bright, weatherproof lighting for safe nighttime navigation.
Garage And Carport Lighting
Provide consistent, cool-white light in carports to improve visibility during parking and maintenance.
Building Facade Accent Lighting
Highlight building exteriors with uniform, durable lighting to enhance architectural details after dusk.

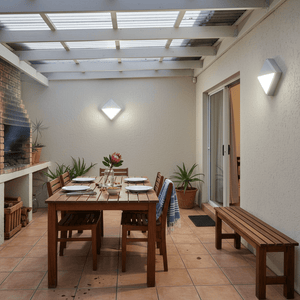

Patio And Deck Evening Ambience
Create well-lit outdoor entertaining spaces with subtle, crisp illumination for evening gatherings.
Security Perimeter Surveillance Lighting
Install above entryways to deter intruders and improve camera footage clarity in low-light conditions.
Installation Guidance, Tips & Tricks
Plan Mounting Location
Choose a flat wall area 1.8–2 m high, clear of obstacles, for optimal coverage and safety.
Drill Anchor Holes
Mark screw positions using the bulkhead bracket, drill 6 mm holes, then insert wall plugs firmly.
Connect Waterproof Wiring
Route cable through IP65 gland, strip 10 mm insulation, and tighten terminal screws securely to ensure seal.
Secure Bulkhead Fixture
Align fixture over brackets, then fasten with supplied screws. Ensure the polycarbonate cover sits flush.
Test And Inspect Light
Switch power on, verify the cool white beam, check for tight seals, no flicker or moisture entry.
Frequently Asked Questions...
Can the LED Bulkhead - Diamond 20W be used outdoors?
Yes! With its IP65 waterproof rating and robust die-cast aluminium construction, it’s ideal for outdoor use in areas like pathways, facades, and parking zones.
How bright is this bulkhead light?
It delivers 1800 lumens of Cool White (6000K) light, providing clear visibility and enhanced safety in outdoor environments.
What materials and cover type does it use?
The Diamond 20W bulkhead features a durable die-cast aluminium body and an opal polycarbonate cover for impact resistance and even light distribution.
What are the dimensions of the Diamond 20W?
The unit measures 270 mm (W) x 270 mm (H) x 135 mm (D), making it compact yet powerful for various outdoor installations.

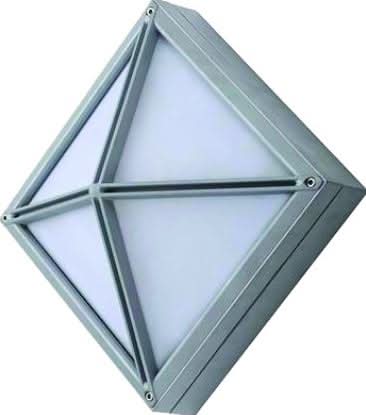

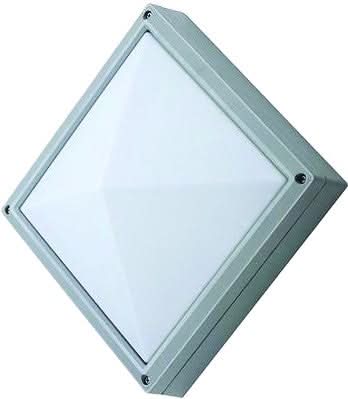

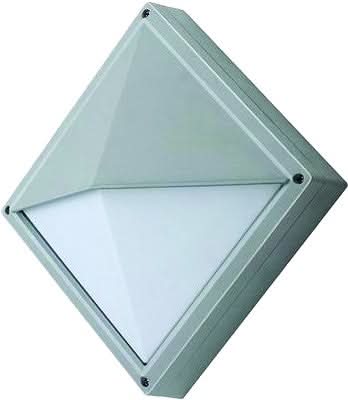

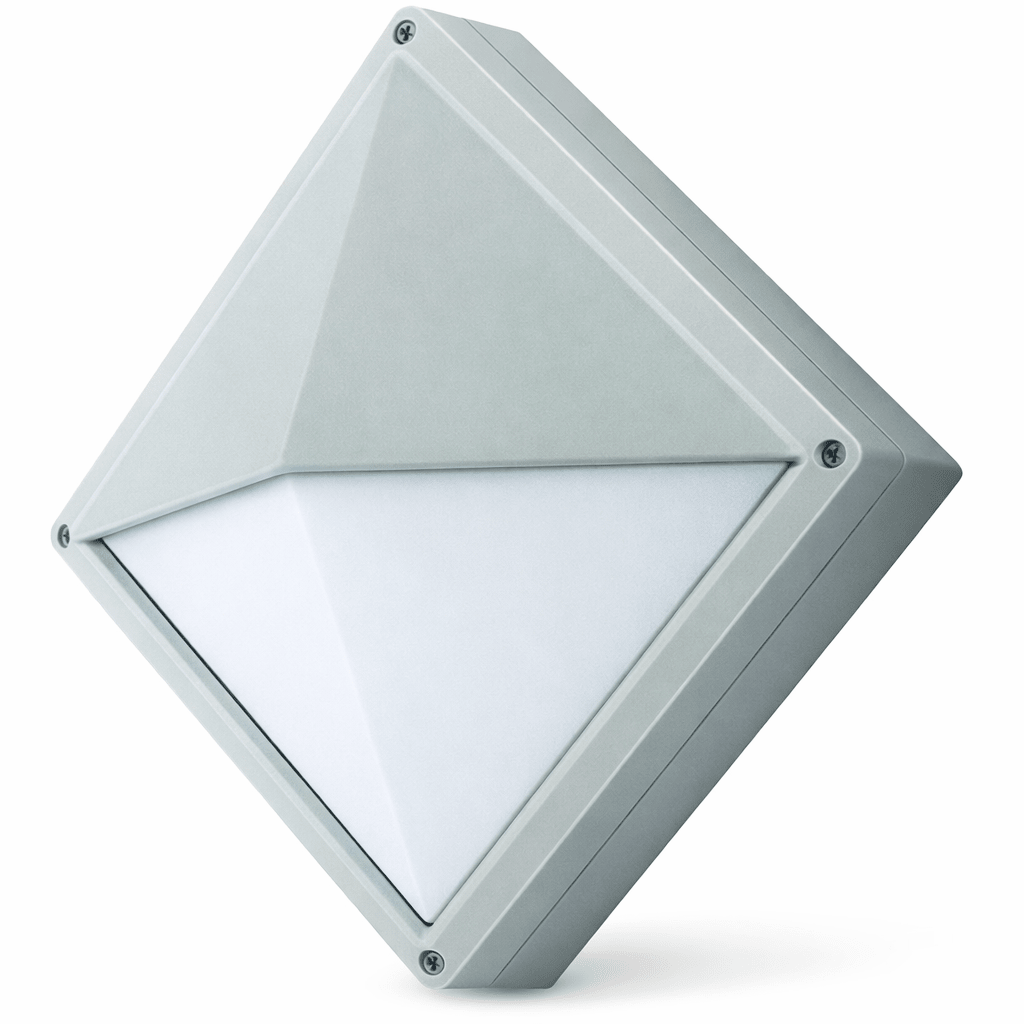

Are there different styling options available?
Yes! You can choose from three designs—Plain, Eyelid, and 4 Grid—to match your décor and aesthetic preferences.
Specifications & Features
Introducing the LED Bulkhead - Diamond 20W, a robust and efficient lighting solution perfect for outdoor environments. This die-cast aluminium bulkhead with an opal polycarbonate cover ensures durability and a sleek design. Enjoy peace of mind with a 2 Year Warranty!
Specifications
- Wattage: 20 Watts
- Lumen Output: 1800
- Colour Temperature: Cool White (6000K) – Understanding Colour Temperature
- Voltage: Standard
- Material: Die-cast aluminium, opal polycarbonate cover
- IP Rating: IP65
- Dimensions: 270mm (W) x 270mm (H) x 135mm (D)
