About

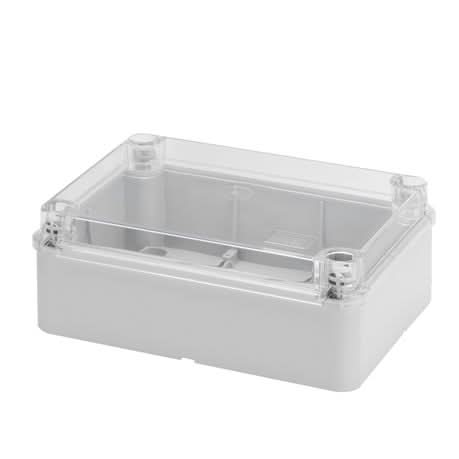

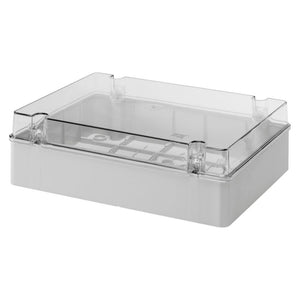

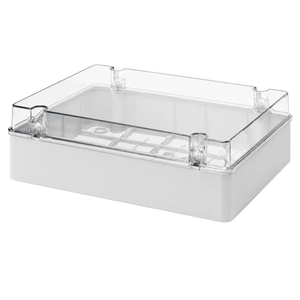

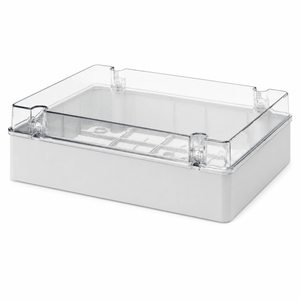

Use this enclosure when you need a neat, tough housing for electrical connections or control components that may be exposed to dust, rain, or wash-down conditions. It’s a practical fit for contractors working on indoor or outdoor installations where quick visual checks and easy access matter, thanks to the clear hinged lid.
Specifications
- Material: Techno-Polymer GWPLAST 120
- IP Rating: IP56
- Dimensions: 380 x 300 x 120mm
- Insulation Class: Ii (According To IEC 61140 Standards)
- Colour: Grey RAL 703
- Mechanical Resistance: IK08
- Glow Wire Test: 650°C
- Operating Temperature: -25 +60°C
- Type Of Material: Halogen-free in compliance with EN 60754-2
- Lid Colour: Transparent
Outdoor irrigation pump controls: Mount near borehole pumps to protect contactors and timers from rain and dust. The transparent hinged lid allows quick status checks without opening during rounds.
Factory machine junction box: Use beside conveyors to house terminal blocks and relays. IK-rated body handles bumps, while the clear lid speeds visual fault-finding on e-stops and sensors.
Car wash control enclosure: Install by wash bays to protect VFDs and control gear from spray. IP56 sealing helps during frequent rinse-downs, and the hinged lid enables quick access.
Rooftop HVAC service panel: Fix near rooftop units to shield breakers and control modules from dust, rain, and sun. Transparent cover allows reading indicators before opening during maintenance.
Marina pier lighting connections: Secure at dock pedestals to protect lighting junctions from spray and wind-driven rain. Non-metallic techno-polymer resists harsh environments, while the clear lid speeds fault checks.
Choose Suitable Installation Location: Pick an indoor or outdoor spot that allows the hinged lid to open freely and lets you perform quick visual checks.
Respect Operating Temperature Range: Install where ambient conditions stay within -25 to +60°C, as specified for the enclosure.
Use The Transparent Lid: Perform quick visual checks through the clear lid before opening, reducing unnecessary access.
Ensure Safe Access First: Before opening the enclosure, isolate circuits and verify the area is safe to work on.
Reseal The Lid After Work: Close and secure the hinged lid fully after servicing to help protect against dust, rain, or wash-down.
Is this enclosure suitable for outdoor use?
Yes, it is suitable for indoor or outdoor installations and carries an IP56 rating for dust and rain.
What are the enclosure dimensions?
The enclosure measures 380 x 300 x 120mm.
What is the material and is it halogen-free?
It is made from Techno-Polymer GWPLAST 120 and is halogen-free in compliance with EN 60754-2.
What is the operating temperature range?
The rated operating temperature is from -25°C to +60°C.
Does it have a clear hinged lid for easy checks?
Yes, it has a clear hinged lid with a transparent cover for quick visual checks.
Use this enclosure when you need a neat, tough housing for electrical connections or control components that may be exposed to dust, rain, or wash-down conditions. It’s a practical fit for contractors working on indoor or outdoor installations where quick visual checks and easy access matter, thanks to the clear hinged lid.
Specifications
- Material: Techno-Polymer GWPLAST 120
- IP Rating: IP56
- Dimensions: 380 x 300 x 120mm
- Insulation Class: Ii (According To IEC 61140 Standards)
- Colour: Grey RAL 703
- Mechanical Resistance: IK08
- Glow Wire Test: 650°C
- Operating Temperature: -25 +60°C
- Type Of Material: Halogen-free in compliance with EN 60754-2
- Lid Colour: Transparent
Gewiss - Hingled Lid Electrical Enclosure 380mm
- Regular price
- R 2,947.00
- Sale price
- R 2,947.00
- Regular price
-
R 4,219.00
Couldn't load pickup availability
