Emergency LED Bulkhead – Wall Mount (IP65, 3 Hour Backup)

This wall-mounted emergency LED bulkhead is designed to provide reliable emergency illumination and exit guidance in commercial, industrial, and public environments. Featuring a durable polycarbonate body with a clean white finish, it offers dependable performance in demanding conditions.

Supplied complete with LED driver and pictograms, this fitting supports both maintained and non-maintained operation modes for flexible installation requirements. Its 3-hour emergency backup ensures continued operation during power failures, while the IP65 rating makes it suitable for indoor and protected outdoor applications.

Practical Tip:
Install emergency bulkheads along escape routes, stairwells, and exits to improve visibility and safety during power outages.

Key Features

• Wall-mounted emergency LED bulkhead
• 3-hour emergency battery backup
• Maintained or non-maintained operation

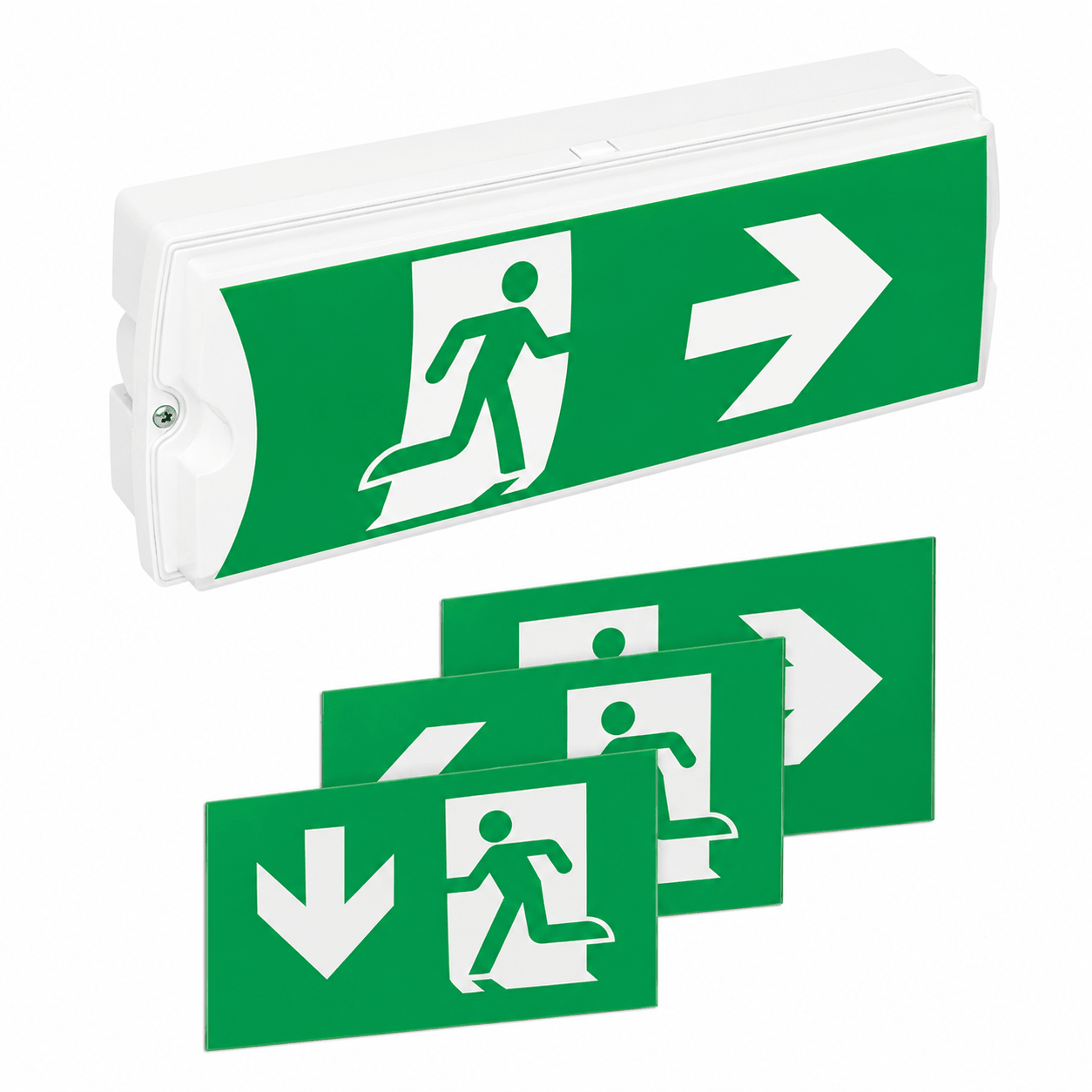

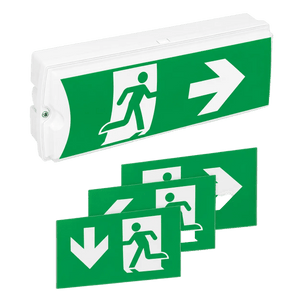

• Includes pictograms and LED driver
• High-visibility 5000K illumination
• Durable polycarbonate construction
• IP65 rated for demanding environments
• 5-year chip warranty

Specifications

• Model: 4654
• Wattage:
  • 5W AC Mode
  • 1W Emergency Mode
• Lumen Output: 200lm
• Voltage: 230V
• Colour Temperature: Daylight 5000K – Understanding Colour Temperature
• Material: Polycarbonate
• Colour: White
• Dimensions: 340mm (W) × 105mm (H) × 62mm (D)
• IP Rating: IP65 – Indoor & Protected Outdoor Use
• Class of Insulation: Class II
• Emergency Backup: 3 Hours
• Operation Modes: Maintained / Non-Maintained
• Lamp Base: Integrated LED
• Driver: Included
• Chip Warranty: 5 Years
• Carton Quantity: 10

Ideal Applications

• Emergency escape routes
• Warehouses and factories
• Commercial buildings
• Parking areas and stairwells
• Public and retail spaces

Why Choose This Emergency Bulkhead

• ✔ Reliable 3-hour emergency operation
• ✔ Durable IP65-rated construction
• ✔ Flexible maintained/non-maintained setup
