Specifications & Features

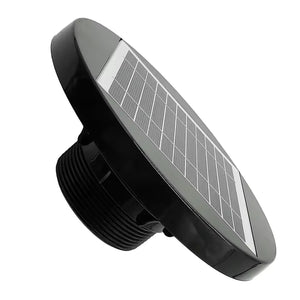

The Solar-powered Fan (also known as a Loo Fan) is designed specifically for portable toilets to extract odours and hot air. The fan is inserted through a hole in the roof from above, leaving the solar panel exposed. Add a soft rubber/silicone gasket to ensure that the fitting remains water-tight. A back nut is then screwed on from below. An epoxy can be applied to the back nut to prevent theft.
The fan will run as long as there is >8,000lx sunlight on the panel. It does not contain batteries, so it will not run without sunlight.
Specifications:
- Solar Panel: Polycrystalline 5.5V 2.5W
- Fan Power: 5Vdc, 300ma
- Fan Speed: 2500 RPM
- Max Air Flow: 33Cf/m
- Fan Bearing: Ball
-
Operation Mode:
- Sunlight above 40,000lux - Continuous operation
- Sunlight above 8,000lx - Intermittent operation
-
Dimensions:
- Max diameter: 200mm
- Overall height: 75mm
- Threaded shaft: D80mm / L50mm
- Cutout Diameter: D82mm
Installation Guidance, Tips & Tricks
Easy to Install:

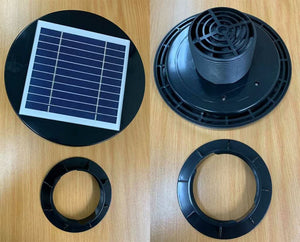

Cut the required hole size in the roofing. Unscrew the back nut from the unit. Leave the silicon O-ring in place. Insert the fan through the hole and screw the back nut back on. Ensure that there is sufficient sunlight on the solar panel during the day for operation. An Epoxy can be applied to the back nut to prevent theft.
Specifications & Features
The Solar-powered Fan (also known as a Loo Fan) is designed specifically for portable toilets to extract odours and hot air. The fan is inserted through a hole in the roof from above, leaving the solar panel exposed. Add a soft rubber/silicone gasket to ensure that the fitting remains water-tight. A back nut is then screwed on from below. An epoxy can be applied to the back nut to prevent theft.
The fan will run as long as there is >8,000lx sunlight on the panel. It does not contain batteries, so it will not run without sunlight.
Specifications:
- Solar Panel: Polycrystalline 5.5V 2.5W
- Fan Power: 5Vdc, 300ma
- Fan Speed: 2500 RPM
- Max Air Flow: 33Cf/m
- Fan Bearing: Ball
-
Operation Mode:
- Sunlight above 40,000lux - Continuous operation
- Sunlight above 8,000lx - Intermittent operation
-
Dimensions:
- Max diameter: 200mm
- Overall height: 75mm
- Threaded shaft: D80mm / L50mm
- Cutout Diameter: D82mm
