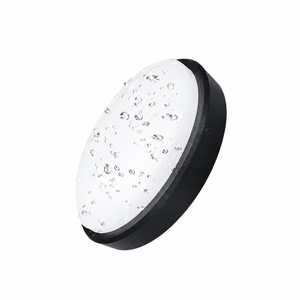

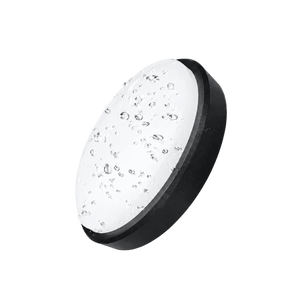

Hero IP65 Aluminium Round Bulkhead – Black and White (12W / 18W / 24W, 3CCT)

A rugged, project-ready round bulkhead in a sleek black finish with a separate White clip-on trim included. Built from aluminium with a tough PC diffuser, it’s IP65 weatherproof and IK08 impact resistant for dependable performance indoors or out. The fitting supports three power settings (12W / 18W / 24W) and 3CCT-selection (3000K / 4000K / 6000K) to match ambience or task. High efficiency at 105 lm/W and 1kV surge protection make it a solid choice for estates, parking areas, corridors and perimeter lighting.

Pro Tip: Set warmer tones (3000K) for residential walkways and cooler tones (4000–6000K) for security and high-visibility areas. The body is Emergency Kit ready for backup integration.

Key Features

• Black aluminium round bulkhead with PC diffuser
• Selectable power: 12W / 18W / 24W
• 3CCT: 3000K / 4000K / 6000K
• High efficacy: 105 lm/W (energy saving)
• IP65 weatherproof & IK08 impact resistant
• 1kV surge protection
• Suitable for Emergency Battery Backup Kit (optional)
• 5 Year Warranty

Specifications

• Finish / Colour: Black with White clip-on trim included
• Housing: Aluminium + Polycarbonate
• Wattage Options: 12W / 18W / 24W
• Colour Temperature (3CCT): 3000K / 4000K / 6000K
• Luminous Efficacy: 105 lm/W
  • 12W ≈ up to 1,260 lm
  • 18W ≈ up to 1,890 lm
  • 24W ≈ up to 2,520 lm
• CRI: >83
• Beam Angle: 140°
• Input Voltage: 185–265VAC
• Operating Temp: -20 to +45 °C
• LED Chips: Sanan 2835
• IK Rating: IK08
• IP Rating: IP65
• Dimmable: No
• Surge Protection: 1kV
• Certifications: CE
• IES File: Yes
• Emergency: Compatible with Emergency Battery Backup Kit (not included)
• Warranty: 5 Years
• Dimension: (D)280 x (D)70mm

Ideal Applications

• Perimeter & security lighting
• Parking areas, passageways, stairwells
• Estate, commercial and industrial sites

Why Choose This Bulkhead?

• One body covers multiple outputs & colour temperatures
• Engineered for harsh environments (IP65/IK08/1kV)
• Emergency-ready design for compliance and safety
