VLP 600mm Explosion-Proof LED Linear Luminaire – 18W | Ex Rated IP65

This 600mm VLP Linear Luminaire is specifically engineered for hazardous and explosive environments where certified safety compliance is essential. Suitable for Zone 2, Zone 21 and Zone 22 areas, this Ex-rated fitting provides reliable illumination in spaces where flammable gases, vapours, or combustible dust may be present.

With certified explosion protection, IP65 ingress protection, and high-efficiency 120 lm/W performance, this compact 600mm model is ideal for smaller hazardous zones, access platforms, plant rooms, and tight industrial spaces where shorter fittings are required.

The fitting comes complete with a gland and a 1m cable.

These fittings are assembled on order and take 7-10 working days for processing.

Practical Tip: Use the 600mm version in confined hazardous spaces or between structural elements where longer fittings are not practical, while still maintaining certified explosion protection compliance.

Key Features

• Certified for hazardous and explosive environments
• Suitable for Zone 2, Zone 21 & Zone 22 areas
• Explosion protection: Ex ec IIC T5 Gc
• Dust ignition protection: Ex tb IIIC T100°C Db IP65
• IP65 dust and water ingress protection
• High-efficiency 120 lm/W output
• Wide 100–277V operating range
• Compact 600mm design for smaller installations
• 50,000-hour LED lifespan (L80 B10)
• 5-year warranty

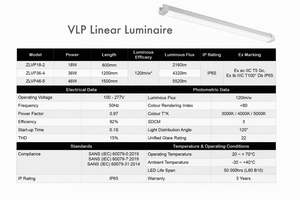

Specifications

• Model: ZLVP18-2
• Length: 600mm
• Wattage: 18W
• Lumen Output: 2160lm
• Luminous Efficacy: 120 lm/W
• Colour Temperature Options: 3000K / 4000K / 5000K
• Beam Angle: 120°
• Input Voltage: 100–277V
• Frequency: 50Hz
• Power Factor: 0.97
• Efficiency: 92%
• THD: 15%
• CRI: <80
• SDCM: 3
• UGR: 22
• IP Rating: IP65
• Operating Temperature: 20°C to +70°C
• Ambient Temperature: -30°C to +40°C
• LED Lifespan: 50,000 hours (L80 B10)

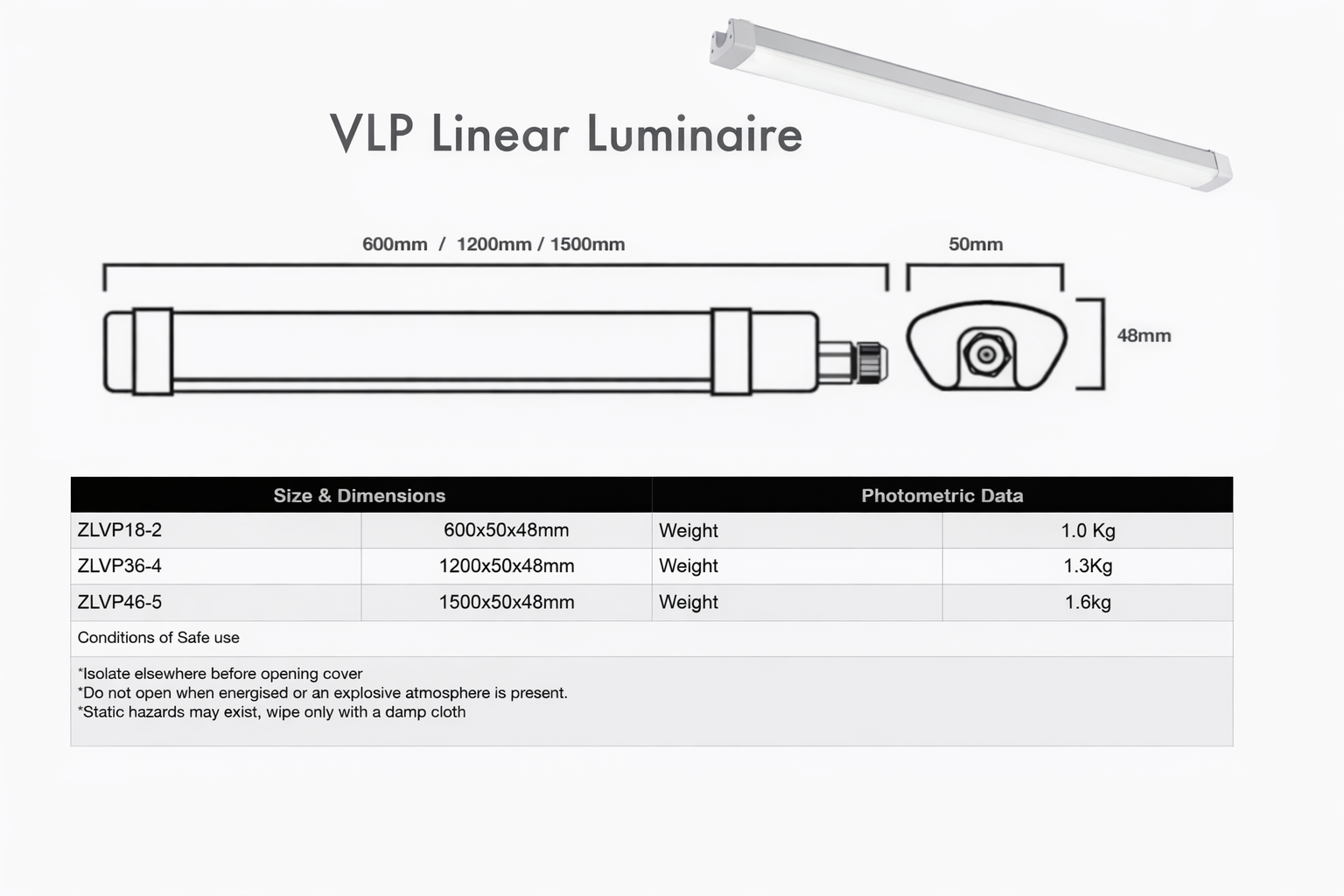

• Dimensions: 600mm x 50mm x 48mm
• Weight: 1.0kg
• Compliance Standards:
  • SANS (IEC) 60079-0:2019
  • SANS (IEC) 60079-7:2019
  • SANS (IEC) 60079-31:2014
• Explosion Marking: Ex ec IIC T5 Gc; Ex tb IIIC T100°C Db IP65
• Warranty: 5 Years

Ideal Applications

• Hazardous plant rooms
• Oil & gas facilities
• Refineries and petrochemical plants
• Dust-prone processing areas
• Compact classified industrial spaces

Why Choose This Explosion-Proof Luminaire

• Certified Ex protection for hazardous zones
• Compact size without compromising safety
• Long lifespan with minimal maintenance
