Description

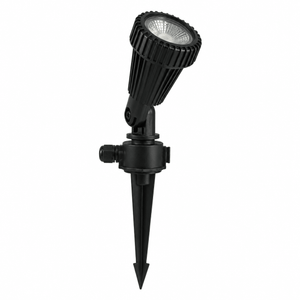

The LED Garden Spike - 7W offers a powerful and energy-efficient lighting solution for your outdoor spaces. With its secure spike design, it’s easy to install and enhances visibility, safety, and ambience. Enjoy peace of mind with a 2 Year Warranty!

Practical Tip: Position the LED Garden Spike to highlight pathways or garden features for improved visibility and an inviting atmosphere.

Why Choose LED Garden Spike - 7W?

  • ✔ Efficient energy consumption
  • ✔ Durable construction with IP65 protection
  • ✔ Easy to install and versatile for various settings
Features & Specs

Key Features

  • Energy-efficient 7W LED
  • Secure and easy installation
  • Enhances outdoor safety and ambience
  • Versatile design for various outdoor settings

Specifications

  • Wattage: 7W (Integral LED)
  • Lumen Output: Not specified
  • Colour Temperature: Cool White (5000K) – Understanding Colour Temperature
  • Voltage: 230Vac
  • Material: Nylon and polycarbonate
  • IP Rating: IP65

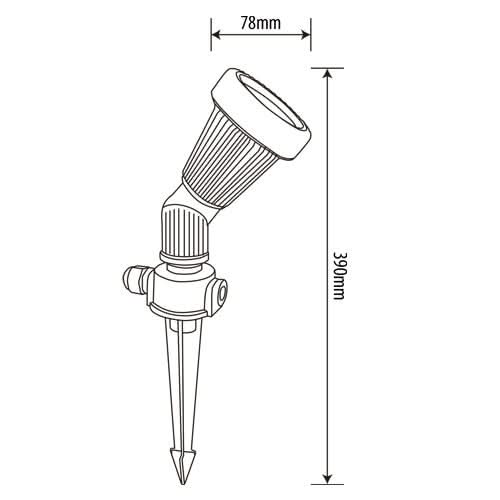

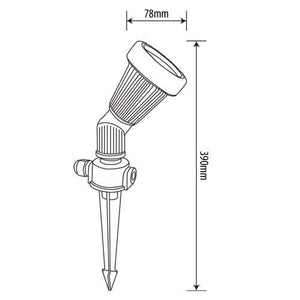

  • Dimensions: 390 x 78mm
Use Cases

Ideal Applications

  • Pathway lighting
  • Garden feature illumination
  • Outdoor safety enhancement

Use Cases

  • Pathway illumination – Guide guests safely along garden paths while adding a warm, welcoming glow.
  • Garden feature highlighting – Accent shrubs, statues or water features to create striking focal points at night.
  • Deck and patio ambiance – Outline seating areas or planters to enhance outdoor entertaining spaces.
  • Driveway edge lighting – Define driveway borders for better visibility when pulling in or out after dark.
  • Poolside safety lighting – Illuminate the perimeter of swimming pools to prevent accidents and boost nighttime enjoyment.
Installation
  • Prepare Your Tools & Materials
    • LED Garden Spike – 7W unit with integral nylon/polycarbonate spike
    • 230 Vac outdoor-rated cable (H07RN-F or equivalent)
    • Waterproof cable connectors or junction box
    • Shallow trenching tool or small garden spade
    • Insulated screwdriver and wire-strippers
    • Protective gloves and safety glasses
  • Turn Off Mains Power
    • Switch off the relevant circuit breaker at the distribution board.
    • Verify power is off using a non-contact voltage tester before touching any conductors.
  • Inspect & Assemble the Spike Light
    • Unpack the LED unit and check for damage.
    • Fit the polycarbonate lens and secure the spike into the housing if detached.
    • Ensure the rubber cable gland is correctly seated on the housing.
  • Plan & Mark the Layout
    • Position markers along the path or garden feature you wish to illuminate.
    • Maintain spacing of 1.5 – 2 meters between spikes for uniform lighting.
    • Practical Tip: Aim the cool-white (5000 K) beam at edges or focal points to enhance ambiance.
  • Dig a Shallow Trench
    • Create a 5 – 7 cm deep trench for the cable, following your marked layout.
    • Keep the trench straight and free of sharp rocks or debris that could damage the cable.
  • Run & Connect the Cable
    • Pull the outdoor-rated cable through the trench to each spike location.
    • At each spike, strip 8 – 10 mm of insulation from live, neutral, and earth conductors.
    • Insert wires into the lamp’s waterproof connector or junction box; tighten glands to maintain IP65 seal.
    • Ensure proper polarity (live to L, neutral to N, earth to ⏚) before sealing.
  • Install the Spike into the Ground
    • Firmly press or gently tap the spike into the soil—avoid hard blows that could crack the housing.
    • Position the head at the desired angle; tighten any adjustment screws to lock orientation.
  • Backfill & Conceal the Cable
    • Fill the trench with soil, compacting gently over the cable to avoid strain.
    • Leave a small loop of extra cable at the spike base for future adjustment.
  • Restore Power & Test
    • Switch the circuit breaker back on.
    • Verify that each LED Garden Spike illuminates in cool white (5000 K).
    • Check for flicker or loose connections; tighten if needed.
  • Final Adjustments & Maintenance
    • Fine-tune beam direction for optimal path lighting and feature highlights.
    • Periodically check seals and clear any debris around the lens for peak performance.
FAQ

Frequently Asked Questions

How deep should I insert the spike for optimal stability?

For best results, push at least 10 cm of the spike into firm soil. In loose or gravelly ground, pre-dig a small pilot hole to ensure the spike sits securely and remains upright.

Can I connect the LED Garden Spike to a timer or smart lighting system?

Yes. This 230 Vac fixture can be used with standard outdoor timers, smart plugs, or smart switches rated for LED loads. Always ensure your control device carries an IP65 rating or is installed in a weather-protected enclosure.

What is the beam angle of the LED and how will it affect landscape lighting?

The integrated LED delivers a focused 40° beam angle, ideal for accentuating pathways, trees, or architectural features without excessive light spill into adjacent areas.

What maintenance does the LED Garden Spike require?

Minimal upkeep is needed. Periodically wipe the lens with a damp cloth to remove dirt and debris. Check the cable entry seal and spike for any signs of damage, especially after extreme weather.

Is the LED Garden Spike suitable for extreme temperatures?

Yes. The IP65-rated nylon and polycarbonate housing tolerates temperatures from –20 °C to +40 °C, making it reliable in both frosty winters and hot summers.

4

(2)

LED Garden Spike - 7W

Regular price
R 196.00
Sale price
R 196.00
Regular price
R 299.00
SAVE 34% (R 103)
SKU: RO377
