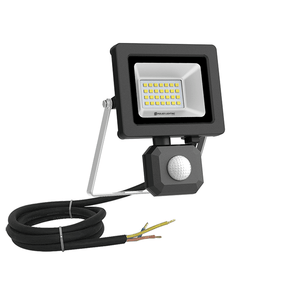

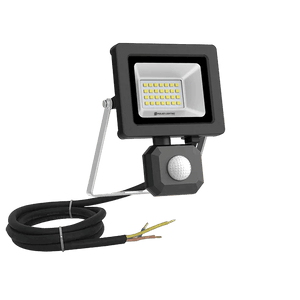

20W Nano Evo Sensor IP65 Floodlight

The 20W Nano Evo Sensor IP65 Floodlight is a compact outdoor LED floodlight designed for bright, practical security and area lighting. With its built-in sensor, durable die-cast aluminium housing, and IP65 floodlight protection, it is well suited to exposed outdoor spaces where reliable automatic lighting is needed.

This sensor floodlight is ideal for entrances, driveways, garages, side passages, courtyards, and outdoor utility areas where light should switch on when movement is detected. It is especially useful in spaces that do not need to stay lit all night but still require quick visibility when someone approaches.

The wide beam angle helps spread light across a usable area, making it a practical choice for general outdoor coverage around homes and small business premises. Its compact Nano Evo design also makes it easier to position neatly without the fitting feeling bulky on walls, columns, or exterior structures.

Practical Tip:

Mount sensor floodlights where the sensor has a clear view of the approach area, such as a driveway, gate, or entrance path, while avoiding direct aim at moving trees or busy roads.

Key Features

• Compact Nano Evo LED floodlight with sensor
• 6000K Daylight output for bright outdoor visibility
• IP65 floodlight rating for outdoor use
• IP44 sensor protection
• 750lm light output
• Wide 120° beam angle
• Die-cast aluminium housing
• Stainless steel bracket from Batch 2411 onwards
• Non-dimmable design
• Ideal for outdoor security and approach lighting

Specifications

• Product: Nano Evo Sensor IP65 Floodlight
• Wattage: 10W
• Colour Temperature: 6000K Daylight
• Lumen Output: 750lm
• Power Factor: >0.9
• CRI: >80
• Input Voltage: 200–260V
• Technology: DOB
• Operating Temperature: -35°C to 45°C
• LED Chip: Sanan 2835
• Beam Angle: 120°
• Housing: Die-Cast Aluminium
• IP Rating: IP65 – Outdoor Use
• Sensor Rating: IP44
• Surge Protection: 3kV
• Dimmable: No
• Certifications: CE, EMC, IEC60598
• IES File: Yes
• Additional Features: From Batch 2411, all Nano EVO Floodlights come with a stainless steel bracket
• Warranty: 3 Years

Ideal Applications

• Driveways and entrances
• Garages and carports
• Side passages and walkways
• Outdoor security lighting
• Courtyards and utility areas
• Residential and small commercial exterior walls

Why Choose This Nano Evo Sensor Floodlight?

• Built-in sensor helps provide light only when movement is detected
• Compact design makes it easy to use in neat outdoor installations
• Daylight output and wide beam angle support clear outdoor visibility
