About
Specifications & Features

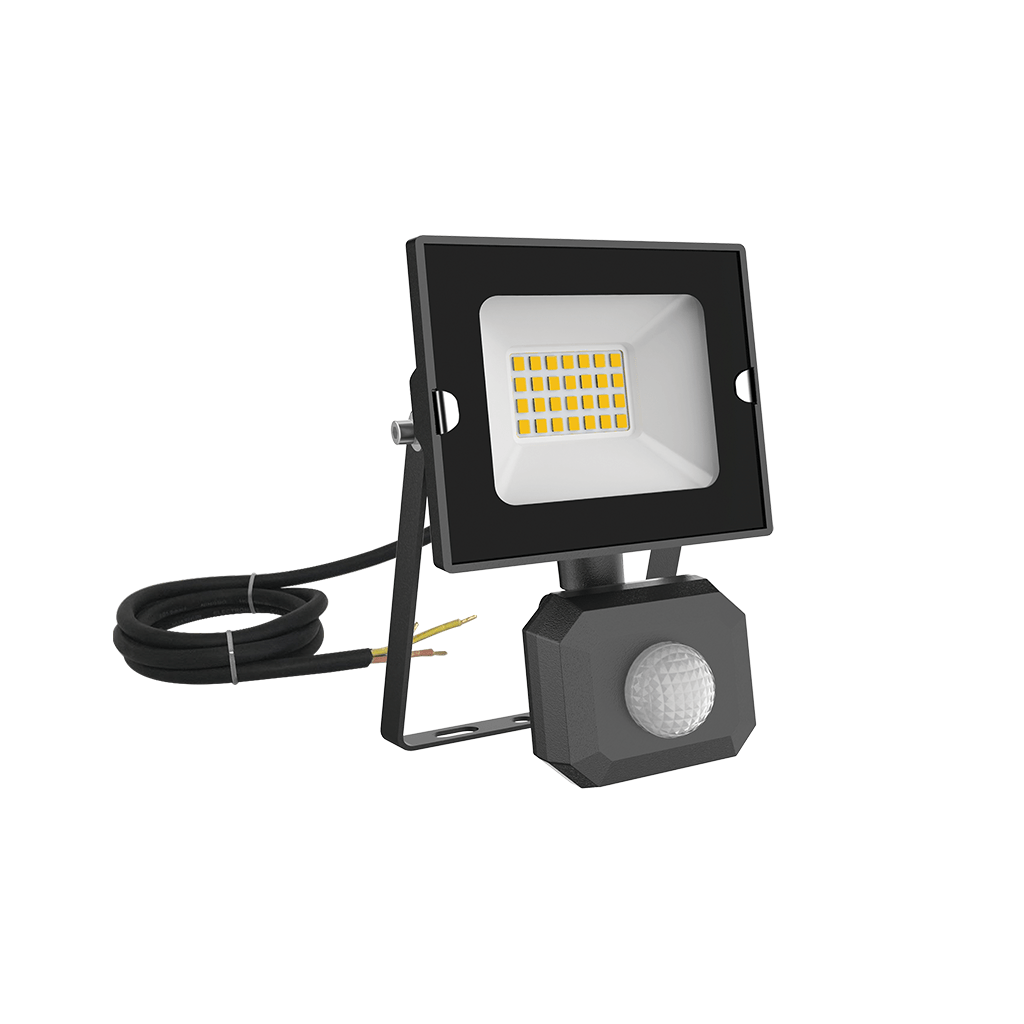

You don’t need to worry about the dark—this 20W Motion Sensor LED Floodlight provides bright, motion-activated illumination for your outdoor spaces. Offering 1700 lumens of output, it’s the perfect upgrade from traditional halogen floodlights and is ideal for driveways, entrances, or side passages. The built-in PIR sensor enhances safety while keeping energy usage to a minimum.
Practical Tip: For optimal coverage, install the light between 2 and 3 meters above ground and angle it to cover your desired detection zone.
Why Choose the 20W Motion Sensor Floodlight?
- ✔ Motion-activated for added safety and savings
- ✔ Efficient lighting solution for high-traffic zones
- ✔ Durable build with a 2-year replacement warranty
Specifications
- Wattage: 20W
- Lumen Output: 1700lm
- Colour Temperature: 6000K (Daylight) or 3000K (Warm White) – Understanding Colour Temperature
- Voltage: 220–240Vac
- Material: Die-cast Aluminium
- IP Rating: IP65
- Dimensions: 134mm x 90mm x 57mm
- CRI: >70
Use Case Ideas: How, Where & Why!
Ideal Applications
- Outdoor security lighting
- Driveways, courtyards, and garages
- Pathways or building entrances
Use Cases
- Home Security Lighting – Automatically illuminates driveways, backyards or entryways when motion is detected, deterring intruders and enhancing safety.
- Commercial Property Perimeter Illumination – Ideal for lighting around warehouses, loading docks or parking lots to improve visibility during off-hours.
- Pathway and Garden Accent – Provides bright, energy-efficient lighting for garden paths, walkways or patios, turning them into well-lit, welcoming spaces.
- Construction Site Safety – Offers reliable, motion-activated light for temporary work areas, reducing accidents and improving site security after dark.
- Signage and Billboard Floodlighting – Highlights outdoor signs or billboards with powerful 1700 lm output whenever activity is detected nearby.
Installation Guidance, Tips & Tricks
- Unpack the floodlight and verify all components are present: lamp housing, mounting bracket, screws and wall plugs, waterproof gasket.
- Switch off power at the main circuit breaker and confirm the supply is de-energised with a voltage tester.
- Determine the optimal mounting location (2–3 m above ground) and angle to cover the desired detection zone.
- Mark the bracket hole positions on the wall, drill holes, and insert the supplied wall plugs.
- Fix the mounting bracket to the wall using the supplied screws; ensure it is level and secure.
- Open the junction box on the back of the floodlight and fit the waterproof gasket into its groove.
- Connect the supply cables to the terminal block:
- Live (L) to brown or red
- Neutral (N) to blue or black
- Earth (⏚) to green/yellow
- Close and tighten the junction box cover to maintain the IP65 seal.
- Attach the floodlight housing to the mounting bracket and secure with the hinge bolt; tighten to hold the chosen angle.
- Adjust the PIR sensor settings:
- Sensitivity (range 1–8 m)
- Time-on (5 sec–5 min)
- Lux level (day/night activation)
- Restore power at the breaker and test the floodlight:
- Walk through the detection zone to verify motion activation.
- Observe that the lamp switches off after the set time.
- Fine-tune the PIR angle and sensitivity if necessary for optimal coverage.
- Periodically clean the lens and check seals to maintain performance and weatherproofing.
Specifications & Features
You don’t need to worry about the dark—this 20W Motion Sensor LED Floodlight provides bright, motion-activated illumination for your outdoor spaces. Offering 1700 lumens of output, it’s the perfect upgrade from traditional halogen floodlights and is ideal for driveways, entrances, or side passages. The built-in PIR sensor enhances safety while keeping energy usage to a minimum.
Practical Tip: For optimal coverage, install the light between 2 and 3 meters above ground and angle it to cover your desired detection zone.
Why Choose the 20W Motion Sensor Floodlight?
- ✔ Motion-activated for added safety and savings
- ✔ Efficient lighting solution for high-traffic zones
- ✔ Durable build with a 2-year replacement warranty
Specifications
- Wattage: 20W
- Lumen Output: 1700lm
- Colour Temperature: 6000K (Daylight) or 3000K (Warm White) – Understanding Colour Temperature
- Voltage: 220–240Vac
- Material: Die-cast Aluminium
- IP Rating: IP65
- Dimensions: 134mm x 90mm x 57mm
- CRI: >70
