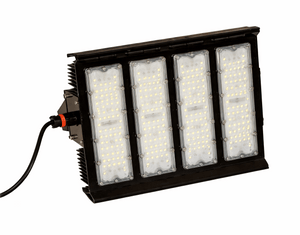

ZLT 200W LED Explosion Proof Floodlight – Hazardous Area Zone 2 / 21 / 22

The ZLT 200W LED Explosion Proof Floodlight is engineered for maximum performance in hazardous industrial environments where safety is non-negotiable. Certified for Zone 2, 21, and 22 applications, this high-output fitting is designed to operate reliably in areas exposed to flammable gases and combustible dust.

With an exceptional output of 28,000 lumens and a high efficiency of 140lm/W, this floodlight is ideal for illuminating large-scale industrial areas. Its heavy-duty construction, IP65 protection, and certified explosion-proof design ensure long-term durability and dependable performance in demanding conditions.

These fittings are assembled on order and take 7-10 working days for processing.

Practical Tip:
Use 200W floodlights in high-mount installations or large open areas where maximum coverage is required, and pair with wider beam angles (90°–120°) to reduce shadowing and improve uniformity.

Key Features

• Certified for hazardous areas (Zone 2 / 21 / 22)
• Ultra-high output at 140 lumens per watt
• Explosion-proof design with Ex certification
• Heavy-duty industrial-grade construction
• IP65 rated for dust and water resistance
• Multiple beam angle options (30°, 60°, 90°, 120°)
• Fast start-up time (0.1 seconds)
• 5-year warranty for industrial reliability

Specifications

• Model: ZLT200
• Wattage: 200W
• Voltage: 100–277V
• Frequency: 50Hz
• Lumen Output: 28,000lm
• Luminous Efficacy: 140lm/W
• Colour Temperature Options: 3000K / 4000K / 5000K / 6500K – Understanding Colour Temperature
• CRI: <80
• Power Factor: 0.97
• Efficiency: 93%
• Start-up Time: 0.1s
• THD: 18%
• Beam Angles: 30° / 60° / 90° / 120°
• UGR: 22
• SDCM: 3
• IP Rating: IP65 – Outdoor & Industrial Use
• Ex Marking: Ex ec IIC T4 Gc, Ex tb IIIC T135°C Db IP65
• Operating Temperature: 20°C to +70°C
• Ambient Temperature: -40°C to +45°C
• Lifespan: 50,000 hours (L80 B10)
• Dimensions: 370mm × 300mm × 80mm
• Weight: 8.5kg
• Warranty: 5 Years

Ideal Applications

• Large oil and gas facilities
• Heavy industrial and mining operations
• Bulk storage and processing plants
• Hazardous dust and gas environments
• High-mast and wide-area lighting installations

Why Choose the ZLT Explosion Proof Floodlight

• Maximum output for large hazardous areas
• Certified explosion-proof safety compliance
• Built for extreme industrial environments
