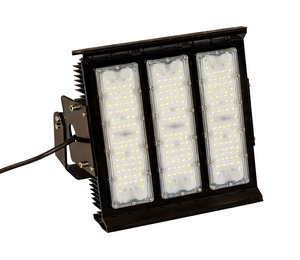

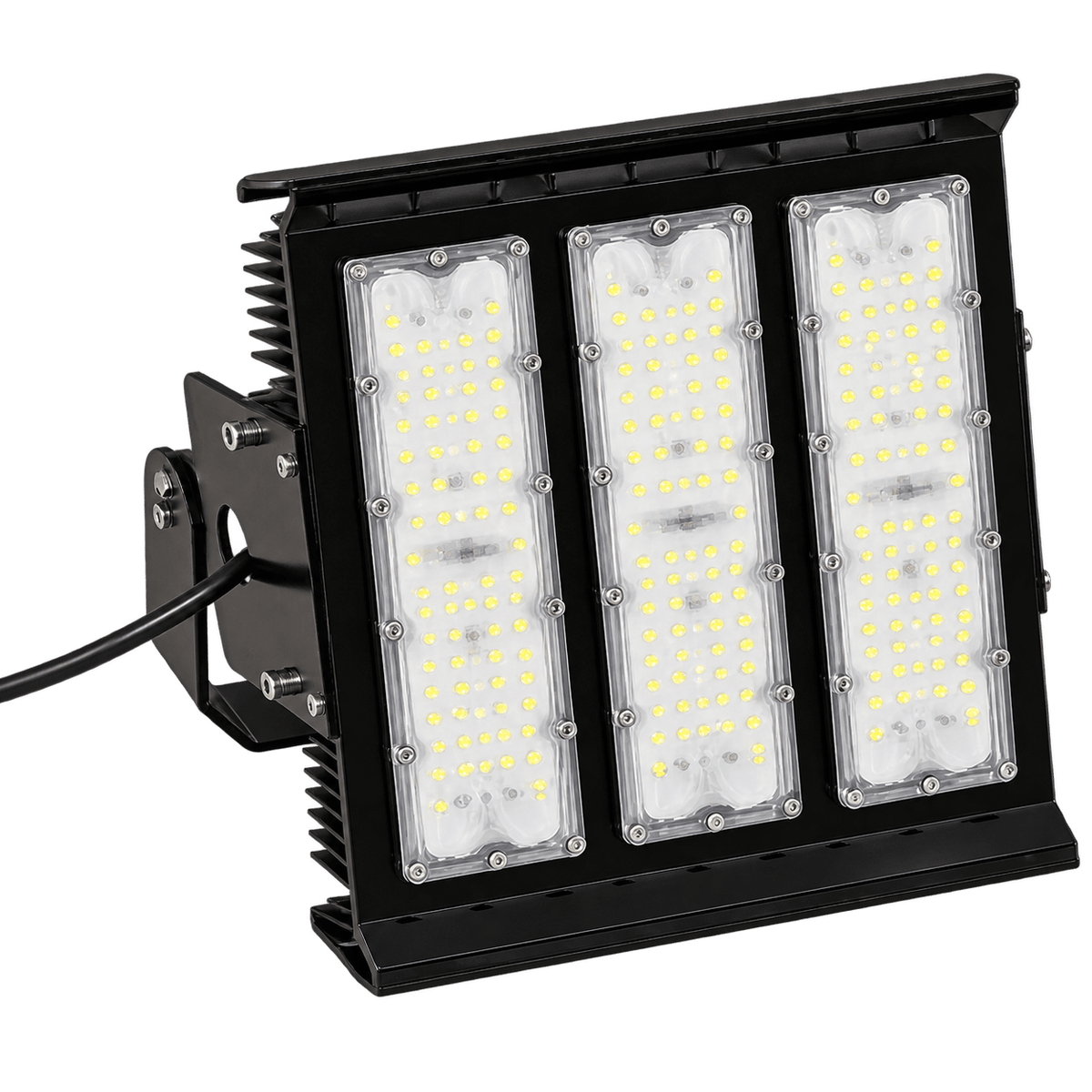

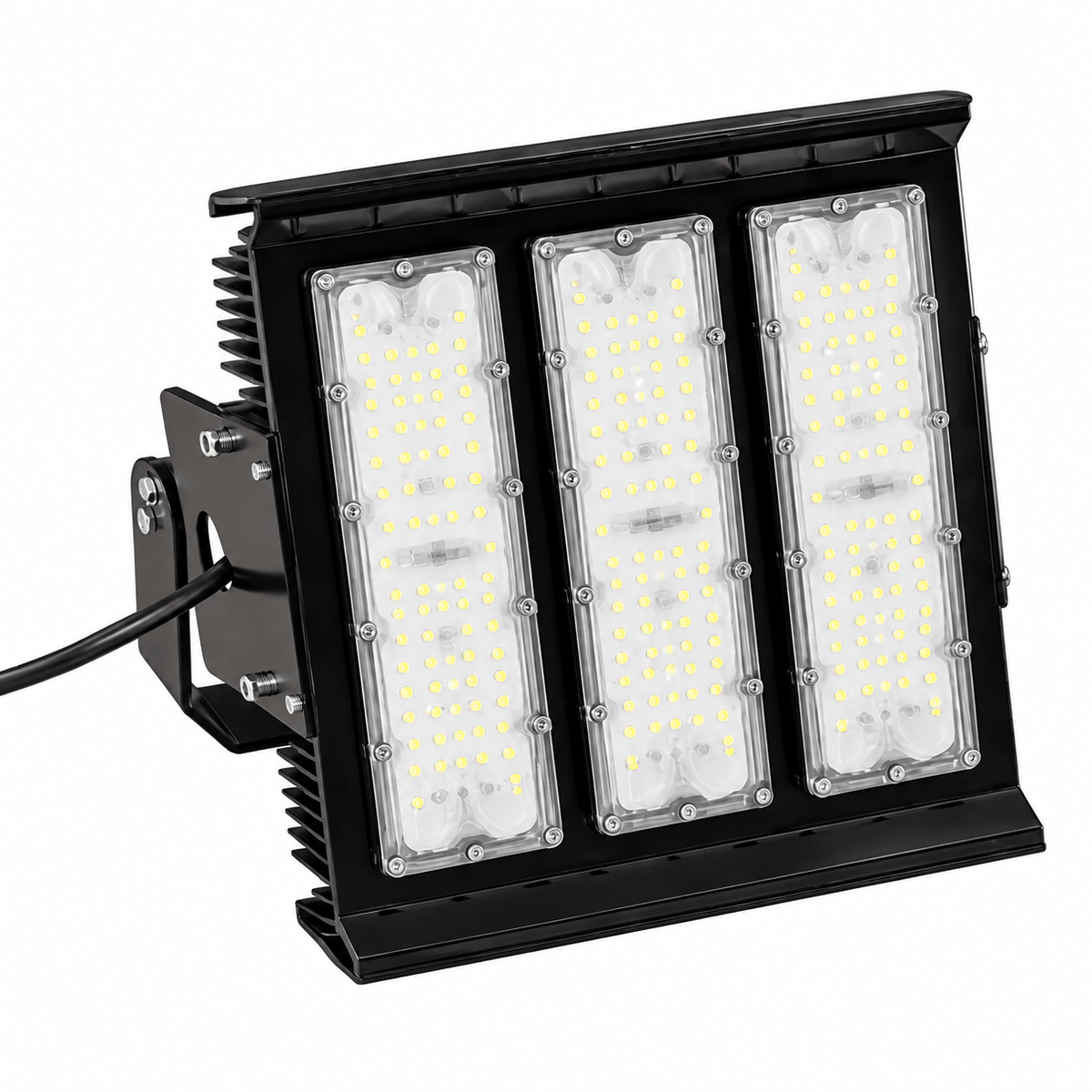

ZLT 150W LED Explosion Proof Floodlight – Hazardous Area Zone 2 / 21 / 22

The ZLT 150W LED Explosion Proof Floodlight is built for demanding hazardous environments where safety and performance are critical. Certified for Zone 2, 21, and 22 applications, this robust fitting ensures reliable operation in areas exposed to flammable gases or combustible dust.

Delivering a powerful 21,000 lumens with a high efficacy of 140lm/W, this floodlight provides exceptional illumination for large industrial spaces. Its rugged construction, IP65 protection, and certified explosion-proof design make it ideal for facilities such as refineries, processing plants, and heavy industrial sites.

These fittings are assembled on order and take 7-10 working days for processing.

Practical Tip: For large industrial areas, mount 150W floodlights at higher positions and select wider beam angles (90°–120°) to achieve even light distribution with fewer fittings.

Key Features

• Certified for hazardous areas (Zone 2 / 21 / 22)
• High efficiency output at 140 lumens per watt
• Explosion-proof design with Ex certification
• Durable industrial-grade construction
• IP65 rated for dust and water protection
• Multiple beam angle options (30°, 60°, 90°, 120°)
• Fast start-up time (0.1 seconds)
• 5-year warranty for industrial reliability

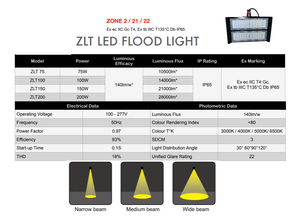

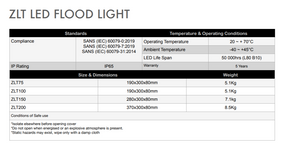

Specifications

• Model: ZLT150
• Wattage: 150W
• Voltage: 100–277V
• Frequency: 50Hz
• Lumen Output: 21,000lm
• Luminous Efficacy: 140lm/W
• Colour Temperature Options: 3000K / 4000K / 5000K / 6500K – Understanding Colour Temperature
• CRI: <80
• Power Factor: 0.97
• Efficiency: 93%
• Start-up Time: 0.1s
• THD: 18%
• Beam Angles: 30° / 60° / 90° / 120°
• UGR: 22
• SDCM: 3
• IP Rating: IP65 – Outdoor & Industrial Use
• Ex Marking: Ex ec IIC T4 Gc, Ex tb IIIC T135°C Db IP65
• Operating Temperature: 20°C to +70°C
• Ambient Temperature: -40°C to +45°C
• Lifespan: 50,000 hours (L80 B10)
• Dimensions: 280mm × 300mm × 80mm
• Weight: 7.1kg
• Warranty: 5 Years

Ideal Applications

• Oil and gas facilities
• Chemical and processing plants
• Large industrial and manufacturing sites
• Mining environments
• Hazardous dust and gas zones

Why Choose the ZLT Explosion Proof Floodlight

• Certified safety for hazardous environments
• High-output solution for large-scale lighting
• Durable design for harsh industrial conditions
