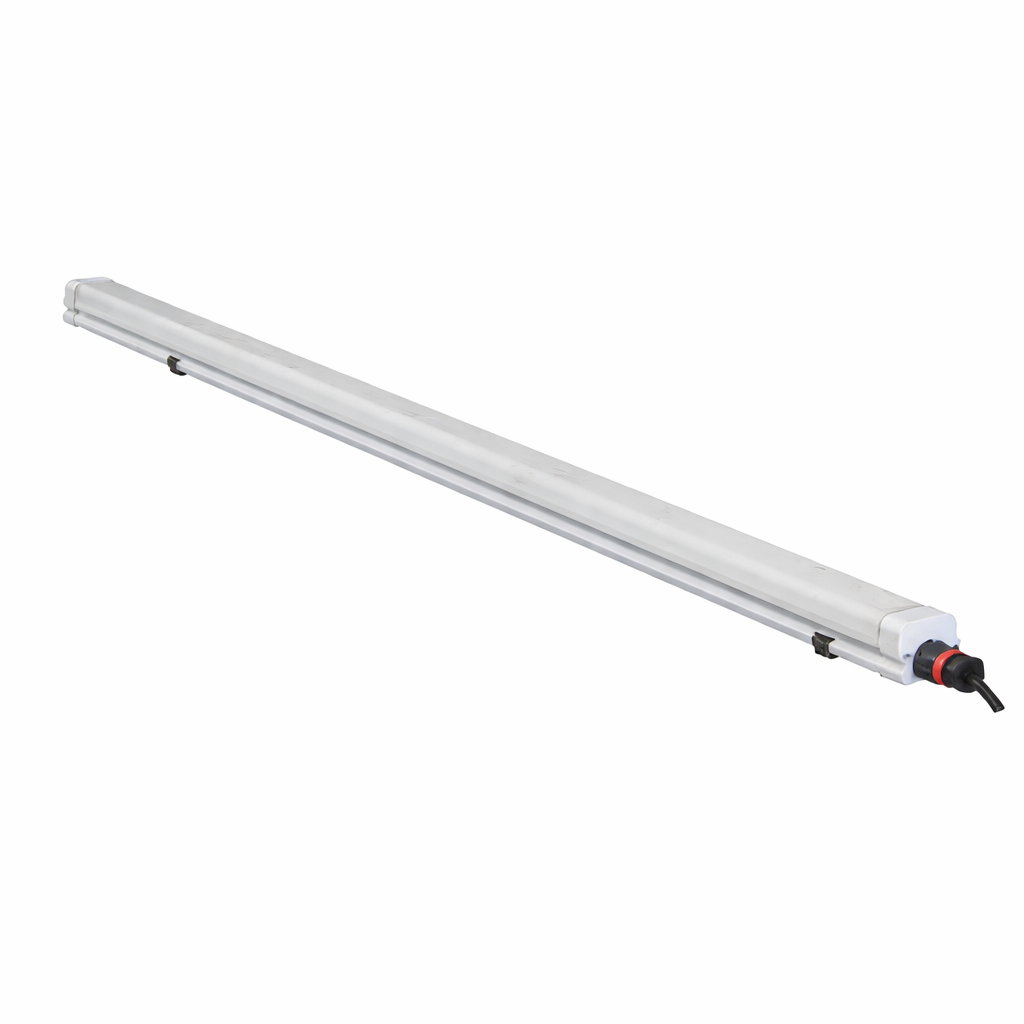

VLP 1500mm Explosion-Proof LED Linear Luminaire – 46W | Ex Rated IP65

This 1500mm VLP Linear Luminaire is purpose-built for hazardous and explosive environments where safety, compliance, and reliability are critical. Designed for Zone 2, 21 and 22 applications, this Ex-rated fitting provides dependable illumination in areas where flammable gases, vapours, or combustible dust may be present.

With certified explosion protection, IP65 ingress protection, and a high-efficiency 120 lm/W output, this luminaire is ideal for petrochemical plants, refineries, fuel storage facilities, manufacturing environments, and hazardous processing areas. Its robust construction and wide voltage range make it suitable for demanding industrial conditions.

The fitting comes complete with a gland and a 1m cable.

These fittings are assembled on order and take 7-10 working days for processing.

Practical Tip: Always ensure installation is performed by a qualified professional familiar with hazardous area compliance standards. Confirm zone classification before specifying the fitting.

Key Features

• Certified for hazardous and explosive environments
• Suitable for Zone 2, Zone 21 & Zone 22 areas
• Explosion protection: Ex ec IIC T5 Gc
• Dust ignition protection: Ex tb IIIC T100°C Db IP65
• IP65 dust and water ingress protection
• High-efficiency 120 lm/W output
• Wide 100–277V operating range
• 50,000-hour LED lifespan (L80 B10)
• 5-year warranty

Specifications

• Model: ZLVP46-5
• Length: 1500mm (5ft)
• Wattage: 46W
• Lumen Output: 5520lm
• Luminous Efficacy: 120 lm/W
• Colour Temperature Options: 3000K / 4000K / 5000K
• Beam Angle: 120°
• Input Voltage: 100–277V
• Frequency: 50Hz
• Power Factor: 0.97
• Efficiency: 92%
• THD: 15%
• CRI: <80
• SDCM: 3
• UGR: 22
• IP Rating: IP65
• Operating Temperature: 20°C to +70°C
• Ambient Temperature: -30°C to +40°C
• LED Lifespan: 50,000 hours (L80 B10)
• Dimensions: 1500mm x 50mm x 48mm
• Weight: 1.6kg
• Compliance Standards:
  • SANS (IEC) 60079-0:2019
  • SANS (IEC) 60079-7:2019
  • SANS (IEC) 60079-31:2014
• Explosion Marking: Ex ec IIC T5 Gc; Ex tb IIIC T100°C Db IP65
• Warranty: 5 Years

Ideal Applications

• Oil & gas facilities
• Petrochemical plants
• Refineries
• Fuel storage depots
• Grain silos and dust-prone processing areas
• Chemical manufacturing plants

Why Choose This Explosion-Proof Luminaire

• Certified Ex protection for hazardous zones
• Reliable performance in extreme industrial conditions
• High output with long lifespan for reduced maintenance
