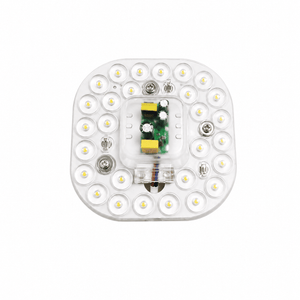

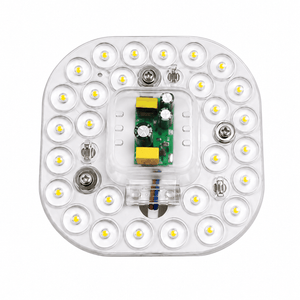

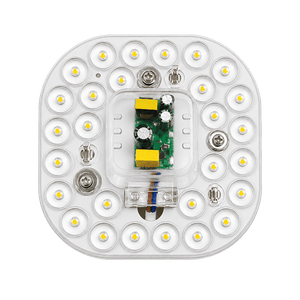

14W LED Retrofit Module – Daylight 6000K

This 14W LED retrofit module is a fast and efficient upgrade solution for existing bulkhead luminaires. Designed with a magnetic housing, it allows for quick installation without complex modifications, making it ideal for maintenance and energy-saving upgrades.

Delivering 1,540 lumens at 6000K daylight, this module provides bright, uniform illumination with a wide 120° beam angle. Built with durable aluminium and PC materials, it ensures reliable performance in both residential and commercial applications.

Practical Tip: Use retrofit modules to upgrade old bulkhead fittings to LED without replacing the entire fixture—saving time and installation costs.

Key Features

• 14W LED retrofit module
• Magnetic mounting for easy installation
• Bright 6000K daylight output
• 1,540 lumen output
• Wide 120° beam angle
• Durable aluminium and PC construction
• IK10 impact resistance
• Ideal for bulkhead upgrades

Specifications

• Wattage: 14W
• Lumen Output: 1,540lm
• Voltage: 200–277V
• Colour Temperature: Daylight 6000K – Understanding Colour Temperature
• CRI: >80
• Beam Angle: 120°
• LED Chips: SMD 2835
• Material: Aluminium + PC
• IP Rating: IP20 – Indoor Use
• IK Rating: IK10
• Surge Protection: 1kV
• Dimmable: No
• Operating Temperature: -20°C to 40°C
• Certifications: RoHS, ISO9001
• IES File: Yes
• Installation: Magnetic Retrofit

Ideal Applications

• Bulkhead light upgrades
• Residential lighting retrofits
• Commercial maintenance projects
• Corridors and stairwells
• Utility and general lighting

Why Choose This Retrofit Module

• ✔ Quick and easy LED upgrade solution
• ✔ Cost-effective alternative to full replacement
• ✔ Durable and high-performance design
