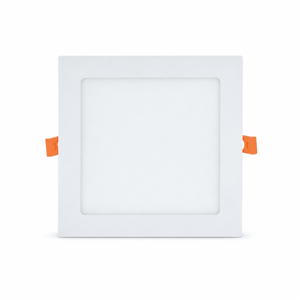

12W PMMA Recessed Square LED Panel – 3CCT Dimmable

This 12W recessed square LED panel is designed to provide smooth, even illumination with a modern low-profile appearance. Featuring a premium 3mm PMMA light guide, it helps prevent dark spots and yellowing over time, ensuring long-lasting lighting performance and visual consistency.

With selectable 3CCT colour temperatures (3000K / 4000K / 6000K), this panel allows you to customise the lighting environment to suit different spaces. Its wide voltage compatibility and optional dimmable driver make it a versatile solution for residential and commercial applications.

Practical Tip: Use 4000K for balanced everyday lighting, 3000K for warmer residential spaces, and 6000K where crisp task lighting is preferred.

Key Features

• 12W recessed square LED panel
• Selectable 3CCT colour temperatures
• Premium 3mm PMMA light guide
• Prevents dark spots and yellowing
• 1100 lumen output
• Wide 120° beam angle
• Optional dimmable driver support
• Slim modern recessed design
• 3-year warranty

Specifications

• Wattage: 12W
• Lumen Output: 1100lm
• Voltage: 85–277V
• Power Factor: 0.9
• Colour Temperature: 3CCT – 3000K / 4000K / 6000K – Understanding Colour Temperature
• CRI: >83
• Beam Angle: 120°
• LED Chips: 2835 Epistar
• Housing: Aluminium
• IP Rating: IP20 – Indoor Use
• Surge Protection: 1.5kV
• Dimmable: Yes (Optional Dimmable Driver)
• Operating Temperature: -20°C to 45°C
• Dimensions: 170mm × 170mm
• Cut-Out Size: 155mm × 155mm
• Certifications: CE, EMC, IEC60598
• IES File: Yes
• Warranty: 3 Years

Ideal Applications

• Kitchens
• Bedrooms
• Offices
• Retail spaces
• General recessed lighting

Why Choose This PMMA LED Panel

• ✔ Smooth, even illumination without dark spots
• ✔ Flexible colour temperature selection
• ✔ Long-lasting PMMA light guide technology
