About
Specifications & Features

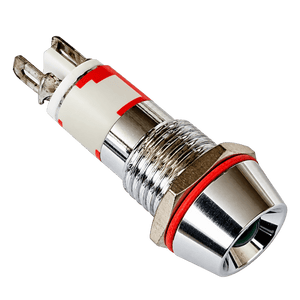

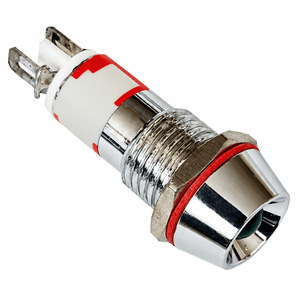

The AD22C-10W-12VDC LED pilot lamp is designed by ACDC Dynamics for control circuits powered at 12 volts. Known for its low energy consumption and longevity, this white LED light is ideal for control panels, providing clear visual indicators in industrial and electrical setups. Its compact 10mm form is a standard fit for most panels, making it a reliable choice for professionals in need of durable and easily mountable lighting solutions.
Specifications
- Wattage (Watts): 1W
- Voltage: 12V DC
- IP Rating: Up to IP65
Use Case Ideas: How, Where & Why!
Industrial Control Panel Indicator
Use it as a status indicator for industrial control panels, providing immediate feedback on system operations.
Electrical System Monitoring
Perfect for electrical systems to signal operational status, ensuring visibility of circuit performance.
Automotive Applications
Applicable in automotive dashboards for indicating lights, offering a long-lasting and vivid signal output.
Home Automation Systems
Install in smart home systems to visually indicate status and operations of various devices and circuits.
Machine Operation Feedback
Use in machinery to offer immediate operation feedback, ensuring operators are informed about equipment status.
Installation Guidance, Tips & Tricks
Prepare the mounting area
Ensure the panel is off, and mark a 10mm diameter hole for installation.
Install the LED pilot light
Insert the LED pilot light into the pre-drilled hole, ensuring a secure fit.
Connect the wiring
Connect the wiring to match the 12V DC power source, following standard electrical guidelines.
Secure the fittings
Use the provided nuts and washers to secure the pilot light firmly onto the panel.
Test the installation
Turn on the power and test the light to ensure it functions properly in its role.
Frequently Asked Questions...
What voltage is required for this LED pilot light?
This LED pilot light operates on 12V DC, ideal for low-voltage applications.
Can this LED pilot light be used outdoors?
It can be used outdoors if installed in a housing that meets or exceeds IP67 standards.
Is this light suitable for continuous operation?
Yes, the LED technology is designed for long, continuous use without significant impact on its lifespan.
How is the pilot light mounted?
The light is mounted in a 10mm hole, which is standard for pilot lights.
Does this LED light require specific maintenance?
Regular checks for secure mounting and clean lens surfaces ensure optimal performance without specific maintenance needs.
Specifications & Features
The AD22C-10W-12VDC LED pilot lamp is designed by ACDC Dynamics for control circuits powered at 12 volts. Known for its low energy consumption and longevity, this white LED light is ideal for control panels, providing clear visual indicators in industrial and electrical setups. Its compact 10mm form is a standard fit for most panels, making it a reliable choice for professionals in need of durable and easily mountable lighting solutions.
Specifications
- Wattage (Watts): 1W
- Voltage: 12V DC
- IP Rating: Up to IP65
