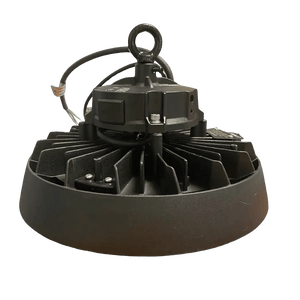

ZLHB 100W LED Explosion Proof Highbay – Zone 1 / 2 / 21 / 22

The ZLHB 100W LED Explosion Proof Highbay is engineered for safe and efficient lighting in hazardous industrial environments. Certified for Zone 1, 2, 21 and 22 applications, it is designed for surface-based installations where explosive gas or dust may be present.

Delivering a strong 13,000 lumen output at 5000K, this highbay ensures bright, uniform illumination with a wide 120° beam angle. Its robust powder-coated aluminium construction, resin encapsulation, and IP65 protection make it ideal for demanding industrial conditions.

These fittings are assembled on order and take 7-10 working days for processing.

Practical Tip: Select the correct wattage based on mounting height—100W is ideal for mid-to-high mounting applications where strong, even coverage is required.

Key Features

• 100W LED explosion proof highbay
• Suitable for Zone 1 / 2 / 21 / 22 hazardous areas
• 13,000 lumen output
• High efficiency of 130lm/W
• 5000K cool white illumination
• Wide 120° beam angle
• IP65 rated for industrial environments
• Impact rating 10
• 5-year warranty

Specifications

• Model: ZLHB100
• Wattage: 100W
• Lumen Output: 13,000lm
• Luminous Efficacy: 130lm/W
• Voltage: 100–277V
• Frequency: 50/60Hz
• Power Factor: 0.95
• Efficiency: 92%
• Start-Up Time: 0.1s
• THD: 13%
• Colour Temperature: 5000K – Understanding Colour Temperature
• CRI: >80
• SDCM: 3
• Beam Angle: 120°
• Unified Glare Rating: 22
• IP Rating: IP65
• Impact Rating: 10
• EX Protection: Zone 1 / 2 / 21 / 22
• EX Rating: Ex eb mb IIC T5 Gb / Ex tb IIIC T135°C Db IP65
• Operating Temperature: 20°C to +50°C
• Ambient Temperature: -40°C to +65°C
• Max EX Rated Safety Temperature Exposure: 135°C
• LED Lifespan: 50,000 hours (L80 B10) @ 25°C
• Materials: Powder-coated aluminium casing, resin encapsulation, constant current electronic control gear
• Compliance: SANS (IEC) 60598, 60079-0, 60079-7, 60079-18, 60079-31
• Warranty: 5 Years

Ideal Applications

• Hazardous industrial facilities
• Oil, gas and petrochemical environments
• Factories and processing plants
• Dust-prone environments
• Surface-based industrial installations

Why Choose the ZLHB 100W Highbay

• ✔ Certified for hazardous Zone 1 / 2 / 21 / 22 environments
• ✔ High efficiency with strong lumen output
• ✔ Durable IP65 construction with long lifespan
