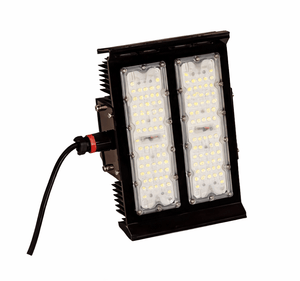

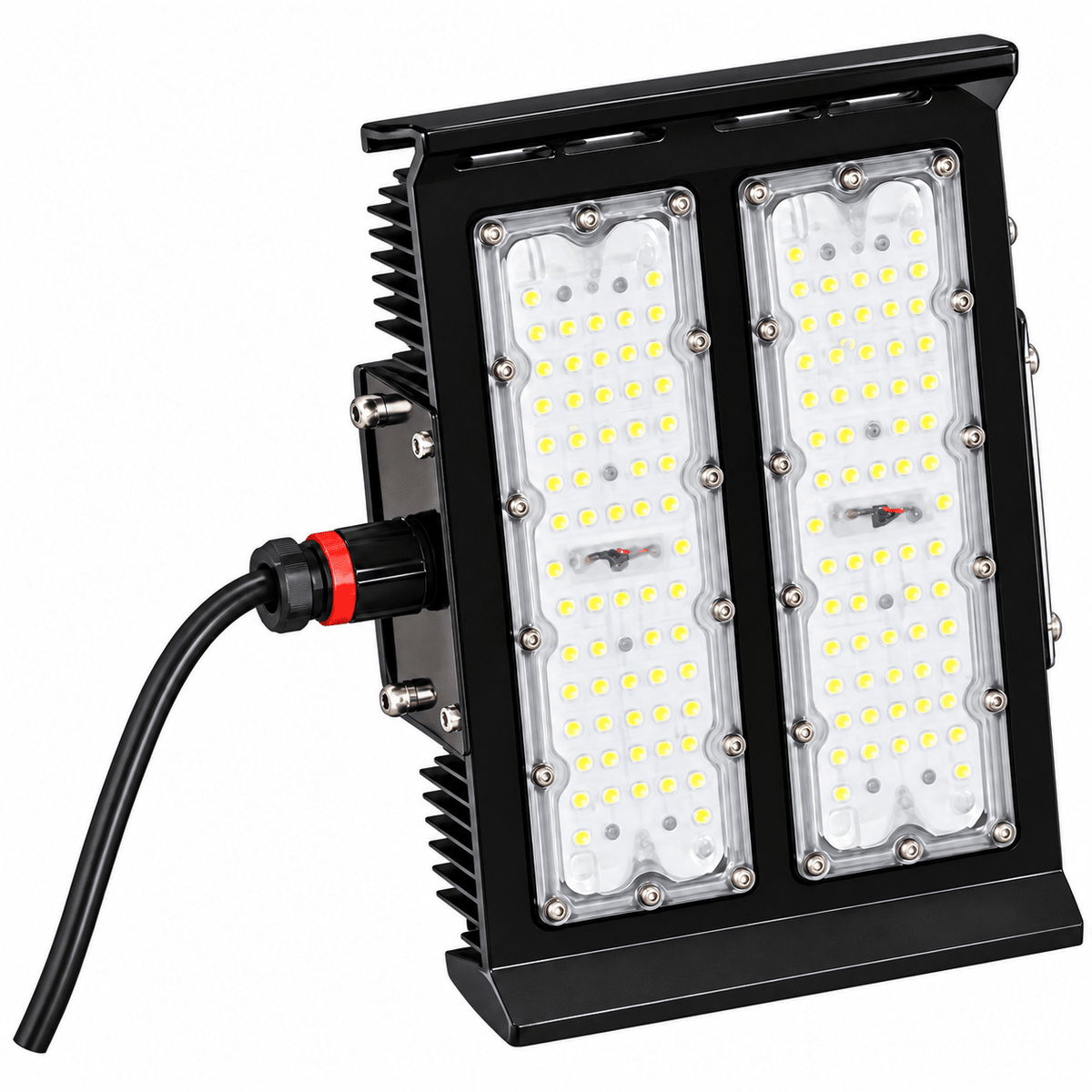

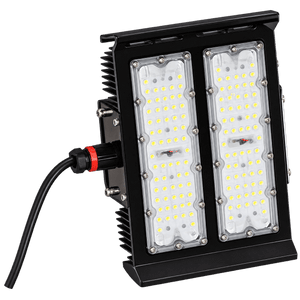

ZLT 100W LED Explosion Proof Floodlight – Hazardous Area Zone 2 / 21 / 22

The ZLT 100W LED Explosion Proof Floodlight is designed for safe, high-performance lighting in hazardous environments where flammable gases or dust may be present. Certified for Zone 2, 21, and 22 applications, this fitting ensures reliable operation while meeting strict safety standards.

Delivering an impressive 14,000 lumens with an efficiency of 140lm/W, this floodlight provides powerful illumination for industrial spaces. Its rugged construction, IP65 protection, and explosion-proof certification make it ideal for demanding environments such as petrochemical facilities, factories, and processing plants.

Practical Tip: Select the correct beam angle (30°–120°) based on mounting height and area size to optimise light distribution and minimise glare in industrial environments.

Key Features

• Certified for hazardous areas (Zone 2 / 21 / 22)
• High efficiency output at 140 lumens per watt
• Explosion-proof design with Ex certification
• Durable industrial-grade construction
• IP65 rated for dust and water protection
• Multiple beam angle options (30°, 60°, 90°, 120°)
• Fast start-up time (0.1 seconds)
• 5-year warranty for industrial reliability

Specifications

• Model: ZLT100
• Wattage: 100W
• Voltage: 100–277V
• Frequency: 50Hz
• Lumen Output: 14,000lm
• Luminous Efficacy: 140lm/W
• Colour Temperature Options: 3000K / 4000K / 5000K / 6500K – Understanding Colour Temperature
• CRI: <80
• Power Factor: 0.97
• Efficiency: 93%
• Start-up Time: 0.1s
• THD: 18%
• Beam Angles: 30° / 60° / 90° / 120°
• UGR: 22
• SDCM: 3
• IP Rating: IP65 – Outdoor & Industrial Use
• Ex Marking: Ex ec IIC T4 Gc, Ex tb IIIC T135°C Db IP65
• Operating Temperature: 20°C to +70°C
• Ambient Temperature: -40°C to +45°C
• Lifespan: 50,000 hours (L80 B10)
• Dimensions: 190mm × 300mm × 80mm
• Weight: 5.1kg
• Warranty: 5 Years

Ideal Applications

• Oil and gas facilities
• Chemical plants
• Fuel storage and depots
• Industrial and manufacturing sites
• Hazardous dust environments

Why Choose the ZLT Explosion Proof Floodlight

• Certified safety for hazardous zones
• Higher output for larger industrial areas
• Reliable performance in harsh environments
