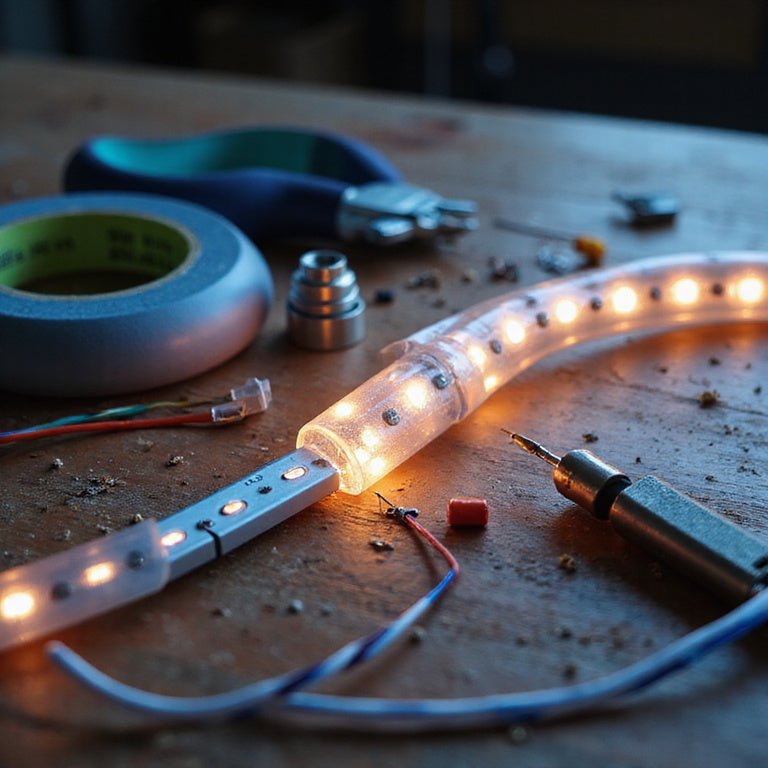

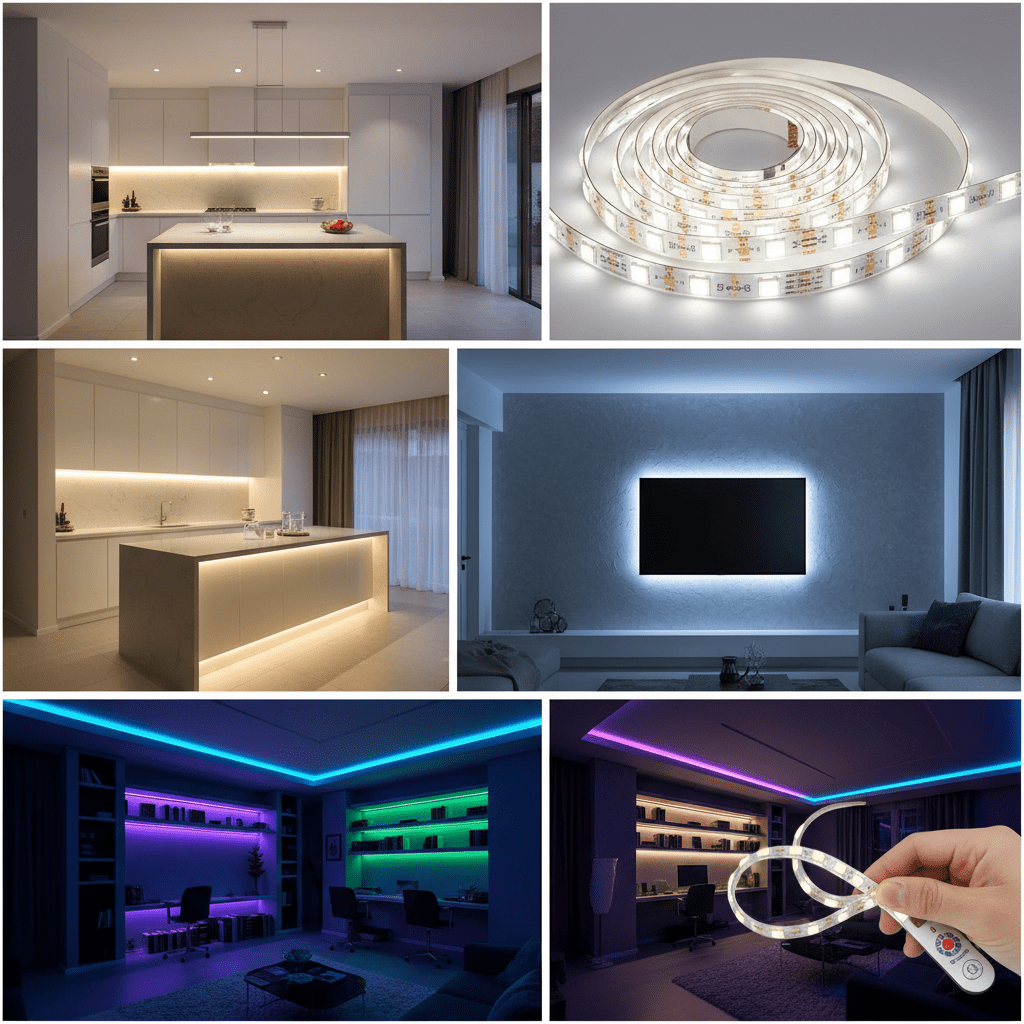

LED strip light connectors make it easier to join, extend and turn strip lighting without soldering. They are useful for kitchens, cupboards, TV units, shelves and display lighting, but the connector must match the strip's width, circuit layout and voltage. A connector that looks right can still fail if the pins do not line up.
What LED strip light connectors do
Connectors join two cut sections of LED strip, bridge a gap, turn a corner or bring power into the strip. They save time where soldering is inconvenient, especially inside cupboards or on a finished installation. They do not correct a mismatch between the strip and the connector, and they cannot replace a suitable driver or power supply.
Start by looking at the copper contact layout on the strip. A single-colour strip may use two contacts, while RGB and RGBW strips use more. The connector also needs to suit the strip width, such as 8mm or 10mm. Waterproof strips may need a different clip or a section of sealant removed before the contact pads can be reached.
Common types of LED strip connectors
The right connector depends on the job rather than the name on the packet. Use a straight joiner when two cut sections continue in one line, a corner connector when the strip turns, and a cable connector when the two sections need to be separated by a gap.
| Connector type | Useful for | Check before ordering |
|---|---|---|
| Straight strip-to-strip | Joining two sections in a continuous line | Strip width, contact layout and strip type |
| Corner or T connector | Turning corners or branching a layout | Pin count, direction and whether the strip is single-colour, RGB or RGBW |
| Connector with wire | Bridging a gap between shelves, cabinets or channels | Cable length, polarity and matching contacts |
| Power connector | Connecting the strip to a driver or cable | Voltage, polarity, current capacity and plug type |
| End cap or seal | Closing a strip or protecting an exposed end | Strip profile, waterproofing method and physical fit |
A connector is a small part of the installation, so leave room for the strip to sit flat and for the clip to close. Do not bend the strip sharply at the connector or hide a loose connection inside a sealed channel.
How to connect LED strip lights with connectors
Switch off the power before handling the strip. Measure and mark the cut point, using the cut marks printed on the strip. Cut cleanly with scissors or a sharp blade, then expose the correct copper pads. Slide the strip into the connector with the contacts facing the connector pins and close the clip firmly.
Before fixing the strip permanently, power it briefly and check the full section. Look for flickering, a dark section, reversed polarity or a colour channel that does not respond. If the connector feels loose, remove the power and inspect the strip position rather than forcing the clip shut.
A straight join for a continuous run
The Fast Connector Strip to Strip for 10mm SMD Strip is the kind of part used when two compatible 10mm sections need to continue in a straight line. Confirm that the strip is the same width and circuit type on both sides. The connector is not a universal fit for every LED tape.
Keep the join supported and avoid placing it where the strip will be pulled around a sharp corner. A clean, flat join is easier to hide in an aluminium profile or under a cabinet.
RGB connectors need the right pin order
RGB strips carry separate colour channels, so the connector must match the number and order of the contacts. The Dyce RGB Quick Connector-10mm with 15cm Wire is a relevant example for a 10mm RGB strip. Check the arrows, markings or colour labels before closing the connector.
If red, green and blue channels do not respond as expected, switch off the power and check orientation first. Do not assume that a connector made for a single-colour strip will work on RGB tape.
LED strip connector compatibility checklist
Use this checklist before adding a connector to your basket:
- Measure the strip width at the cut point.
- Count the copper contacts and identify the strip type.
- Confirm the voltage matches the driver and the rest of the run.
- Check whether the connector is straight, corner, T-shaped, wired or for power input.
- Check the cable length and polarity where the connector includes wire.
- For waterproof strip, confirm how the connector handles the coating and seal.
- Test the connection before installing the strip behind a panel or inside a profile.
Use a wired connector when the layout has a gap
A wired connector is useful where two sections cannot sit directly next to each other. The Fast 2way Connector with 10cm Cable for 10mm SMD Strip creates a short link between compatible 10mm sections. It can help route a strip around a cabinet edge or between two nearby sections, but the cable length must suit the layout.
Keep the wire away from sharp edges and leave enough slack for servicing. The connector should not carry the mechanical load of the installation.
When an aluminium profile is the better next step
Connectors solve joins, but they do not provide a finished mounting surface. An aluminium profile can hold the strip straight, protect it from knocks and give the light a cleaner edge. Choose a profile that fits the strip and diffuser, and allow space for the connector if the join sits inside the channel.
Keep the strip flat and serviceable
The Neon0816 AL Profile – 2m is an example of a profile used to create a more controlled installation. It is not a connector, so it should be selected as part of the mounting plan rather than as a substitute for a joiner. Check the profile dimensions against the strip and any end caps or mounting clips.
For under-cabinet or display work, plan the profile, connector and power entry as one route. That reduces visible cable and makes future replacement less awkward.
Power supplies, voltage and longer runs
Connectors do not increase the available power. The driver must match the strip voltage and provide enough capacity for the connected length, with a sensible margin. Longer runs may show voltage drop, especially when the strip is fed from one end. If the far end is dimmer, the answer may be a revised power-feed plan rather than a different connector.
Do not connect a 24V strip to a 12V supply, or a 12V strip to a 24V supply. For mains-voltage strip products, follow the product instructions and use a qualified electrician where the installation involves fixed wiring.
Frequently asked questions
Can I connect LED strip lights without soldering?
Yes, if the strip and connector are compatible. Check the strip width, contact layout, voltage and connector type before installation.
How do I connect two LED strip lights together?
Cut both strips at their marked cut points, match the contacts, insert each section into a compatible straight or wired connector, close the clip and test the join before mounting.
Do LED strip connectors work with every strip?
No. Connectors are made for specific widths, contact layouts and strip types. Single-colour, RGB, RGBW, COB and waterproof strips may need different connector designs.
Can I use an LED strip connector around a corner?
Use a corner connector where its width and contact layout match the strip. A wired connector can also bridge a corner when the strip should not be sharply bent.
Why is my LED strip flickering after I fitted a connector?
Switch off the power and check that the strip is fully seated, the contacts are aligned and the driver voltage is correct. A loose join, wrong polarity or overloaded power supply can all cause problems.
Do I need an aluminium profile as well as a connector?
Not always. A connector joins the strip; a profile provides mounting, protection and a cleaner finish. Use one when the strip needs a straight route, diffuser or more protected installation.
