Downlight holders do more than cover the edge of a ceiling cut-out. They determine how the fitting sits, what the ceiling looks like once the work is finished, and whether the lamp or LED module is held securely. The right choice depends on the holder's cut-out size, shape, finish, tilt and the light source it must hold.
This guide is for replacing an existing holder or planning a new recessed-lighting installation in a South African home. Start with the opening and the light source you already have. Do not buy a holder from a photograph alone.
Choose the holder by the job it needs to do
A fixed holder sends the light straight down. It suits general lighting where the fitting is centred over the area it needs to illuminate. A tilt or gimbal holder lets you angle the lamp, which is useful for artwork, kitchen worktops, passages or a feature wall. That movement is useful only when the lamp and holder leave enough room to tilt without touching the ceiling or surrounding insulation.
Choose the finish after you have decided on the shape. White blends into a white ceiling, black creates a deliberate contrast and chrome or aluminium can work with other metal details in a bathroom or kitchen. The finish should be a practical part of the room plan, not the first specification you check.
Measure the cut-out before comparing styles
The most common buying mistake is matching the outside diameter instead of the ceiling opening. A holder can look the right size and still be too large, too small or unable to grip the ceiling. Remove the existing fitting only after the circuit is isolated, then measure the cut-out across its widest point. Record the ceiling thickness as well, because spring clips and retaining arrangements have limits.
Also check the light source. A GU10 or other replaceable lamp needs a holder and socket arrangement that accepts that base. An integrated LED downlight is a complete fitting and may not use a separate lamp holder at all. A 70 mm opening, a 90 mm opening and a 90 mm trim with a different spring position are not interchangeable just because the front looks similar.
| Check | What to confirm | Why it matters |
|---|---|---|
| Cut-out | Opening diameter or length and width | Determines whether the holder can cover and grip the ceiling |
| Ceiling thickness | Plasterboard, timber, concrete or another substrate | Clips and mounting depth must suit the ceiling |
| Light source | GU10, other replaceable bulb or integrated LED | Prevents a mismatch between holder, socket and lamp |
| Shape | Round, square, straight or tilting | Sets the visible finish and the direction of light |
| Room conditions | Dry room, kitchen, bathroom or covered exterior | Moisture exposure affects the fitting choice |
Fixed, round and tilt holders: where each one fits

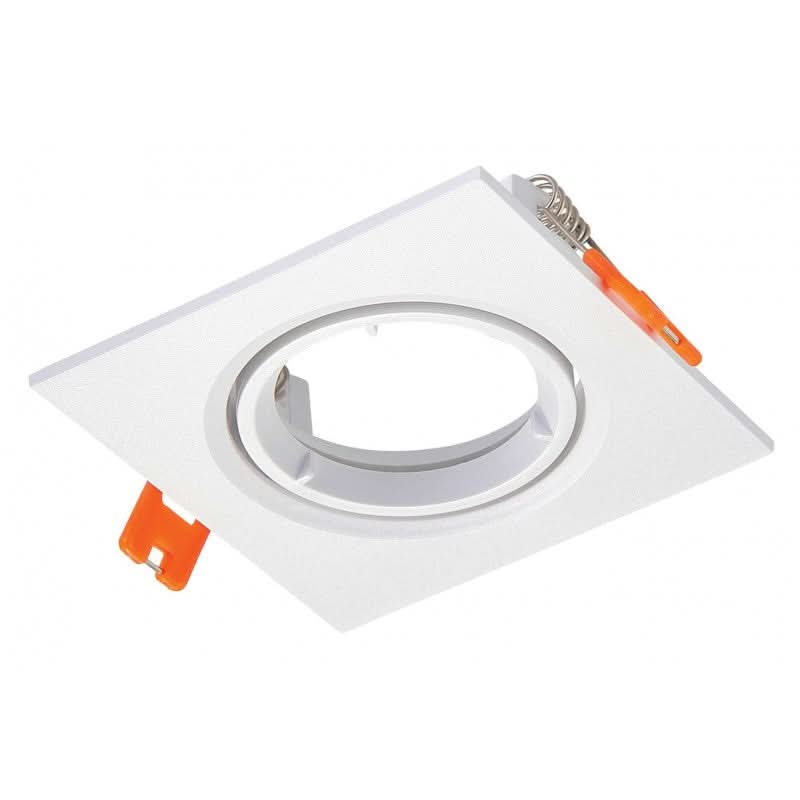

Round straight holders are a sensible choice for even rows of ceiling lights, passages and rooms where the beam should stay aligned with the ceiling grid. Square holders give the ceiling a more architectural look and can suit rooms with strong rectangular lines. A tilt holder is more useful when the light needs to move towards a wall, display or work surface.
Look closely at the retaining clips and the way the lamp locks into the holder. A bayonet lock, spring clip or other mechanism must be compatible with the fitting. Do not assume that a holder described as a downlight holder will accept every downlight or bulb. Confirm the product details before ordering.
Match the finish and light direction to the room
White is usually the quietest choice on a white ceiling. Black works when the fitting is meant to be seen or when it repeats black hardware elsewhere in the room. A square or round chrome holder may suit a bathroom or a room with chrome taps, but the finish does not make a fitting suitable for wet areas by itself. Check the actual product rating and installation instructions.
For living rooms and bedrooms, fixed holders can provide a clean base layer while tilt holders can direct light onto a picture, reading chair or shelving. In kitchens, the cut-out position matters as much as the trim: a light directly behind a person can cast a shadow over a worktop. Plan the position and beam direction before buying a large batch.
When a black or low-glare holder makes sense
A black holder can frame the light source and work well in a darker ceiling, a contemporary kitchen or a room with black track, door or furniture details. It is a visual choice, so check how much of the holder remains visible after installation. A low-glare design can be more useful where the fitting is in the normal line of sight, but do not treat a low-glare label as a substitute for checking the lamp's beam and brightness.
For a family of fittings, buy one sample first when possible. Check the trim, clip tension and lamp fit in the actual ceiling before ordering the rest. This catches a cut-out or depth problem while it is still easy to correct.
Bathrooms, kitchens and covered outdoor areas
Steam, splashes and cleaning moisture change the requirements. A holder for a dry bedroom should not automatically be used in a bathroom. Check the complete fitting's IP rating, the manufacturer's installation zone guidance and whether the light source is approved for that location. The holder's decorative finish alone does not prove moisture protection.
In a kitchen, keep the fitting away from areas where grease, steam or heat will collect unless the product is designed for that environment. For covered outdoor areas, confirm the product's outdoor suitability rather than relying on the word "downlight". The electrical work and any changes to the ceiling should be assessed by a qualified person.
Installation checks that prevent avoidable rework
Switching off a wall switch is not the same as proving that the circuit is dead. Mains work should be handled by a qualified electrician. Before installation, confirm the circuit, cut-out, mounting depth and clearance around the fitting. Keep insulation and other ceiling materials within the limits stated by the product instructions, especially where a fitting needs airflow or a fire-rated solution.
Use the correct hole saw for the ceiling material and protect the visible ceiling edge while cutting. Test the holder and lamp fit before applying final pressure to the clips. If the trim flexes, the lamp sits loose or the holder cannot cover the opening, stop and resolve the mismatch rather than forcing it into place.
A simple buying checklist
- Measure the existing cut-out, ceiling thickness and available depth.
- Identify whether you need a replaceable bulb holder or a complete LED fitting.
- Choose round, square, fixed or tilt based on the room and light direction.
- Confirm the bulb base, voltage and physical fit.
- Check IP, heat-clearance and installation requirements for bathrooms, kitchens and covered outdoor areas.
- Choose the finish after the technical fit is settled.
- Test one fitting before ordering a full set when the dimensions or ceiling are uncertain.
Frequently asked questions
What should I measure before buying a downlight holder?
Measure the ceiling cut-out at its widest point, the ceiling thickness and the available depth. Also record the shape of the opening and the bulb or LED fitting you intend to use.
Are downlight holders universal?
No. Holders differ in cut-out size, depth, clip position, shape and the lamp or fitting they accept. Match the holder to the product specifications rather than relying on the general term downlight holder.
What is the difference between a fixed and tilt downlight holder?
A fixed holder points the light straight down. A tilt holder allows the lamp to angle towards a wall, work surface or display, provided the lamp and ceiling space allow that movement.
Can I use a downlight holder in a bathroom?
Only when the complete fitting is suitable for the bathroom location. Check the actual IP rating and installation instructions, and use a qualified electrician for the electrical work.
How do I know whether a holder will fit my LED downlight?
Check the holder's cut-out, dimensions, retaining method, lamp base or fitting type and voltage against the downlight details. A holder that looks similar may still be incompatible.
When you have the measurements and light-source details, browse the LED downlights collection and compare the fitting before committing to the ceiling cut-out.
