An LED strip is only one part of an outdoor light line. The aluminium profile affects the finish, diffusion, protection and installation method. Choose the profile after you know where the light will sit, how wide the strip is and what the finished system must withstand.
What an outdoor LED aluminium profile does
An aluminium profile houses the strip and gives the installation a cleaner edge than an exposed strip. It can also provide a mounting surface and a cover that softens visible LED points. The profile does not replace a suitable outdoor-rated strip, power supply or connector system. Those parts still need to match the environment.
Choose the installation position first
| Profile type | Typical use | What to check |
|---|---|---|
| Surface-mounted | Decks, joinery and visible edges | Mounting method, finish and strip width |
| Recessed | Steps, floors and wall details | Recess depth, access and drainage |
| Inground or walk-over | Pathways, patio borders and areas where people walk | Profile dimensions, cover and loading limits |

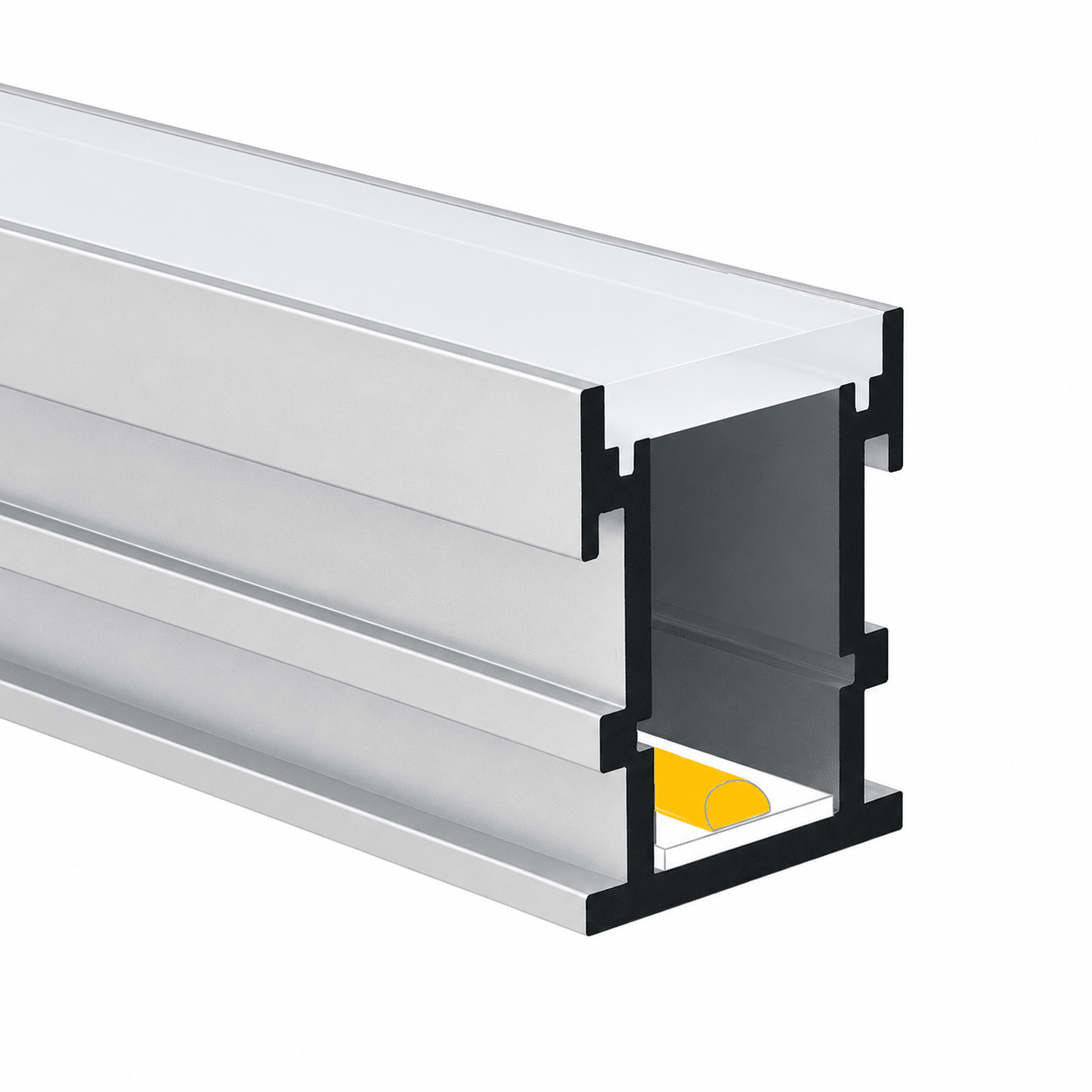

For an inground application, Outdoor Inground LED Profile with Frosted Cover is 3m long, measures 21 x 26.1mm and accepts LED strips up to 10.5mm wide. It is a practical starting point for a defined edge or pathway line.
Match the strip to the channel
Measure the actual strip width before ordering. The strip must sit neatly inside the channel without being pinched by the cover. Also check the strip voltage, IP rating, brightness and bend direction. A profile can improve the installation, but it cannot correct a strip that is too wide or unsuitable for the exposure.
Why use a frosted cover?
A frosted cover spreads the light and reduces the sharp appearance of individual LED points. It is useful where the profile is visible from the side, such as a step edge, patio border or pathway. Keep the cover clean and plan access so it can be inspected after installation.
Plan the supporting components
A complete project may also need LED striplight connectors and cabling and LED power supplies. Check load, voltage, cable entry and the protection rating of every part before installation.
Frequently asked questions
What strip width does this profile support?
The product page specifies a maximum LED strip width of 10.5mm.
Is the profile suitable for outdoor use?
The profile is listed with an IP65 rating for outdoor use. The strip, driver, connectors and installation details must still be suitable for the location.
Can it be used where people walk?
The product is positioned for areas where people walk, including pathways and steps. Do not assume vehicle drive-over suitability without a separate rating.
