Inground LED profiles create a neat line at the edge of a path, patio or step. They work best when the profile, strip, cover and surrounding surface are planned together. The visual result may be subtle, but the installation needs careful measurements and access planning.
Where inground profiles work well
Use an inground profile where a continuous light line will help define an edge or guide movement. Common locations include pathway borders, step edges, patio transitions, deck lines and selected garden features. Keep the layout simple enough to service later.
Plan the recess and drainage
Measure the channel before cutting the recess. The featured profile is 21 x 26.1mm and 3m long. The surrounding surface needs to hold the profile securely and allow water to move away from the installation. Cable entries, joints and end points should be planned before the profile is fixed.
Match the strip width
The profile accepts strips up to 10.5mm wide. Confirm the strip width, voltage and environmental rating before buying. The frosted cover should close cleanly without pressing into the strip. If the strip is too wide, choose a different profile rather than forcing the fit.
| Project area | Lighting role | Planning check |
|---|---|---|
| Pathway edge | Defines a route without a bright fitting | Keep the line consistent and avoid trip edges |
| Patio border | Adds a soft perimeter glow | Plan cable access and maintenance |
| Step edge | Marks a change in level | Use a suitable walk-over profile and avoid drive-over assumptions |
| Garden feature | Adds a controlled accent | Check moisture exposure and plant growth around the recess |
Check the complete system
The profile is listed as IP65, but the finished system depends on the strip, driver, connectors and cable entries as well. For alternatives or a wider project, compare LED extrusion profiles and outdoor lighting before selecting the final components.
Frequently asked questions
Is an inground profile the same as a standard LED channel?
No. Inground profiles are designed around floor or edge installation and require different dimensions, cover and loading considerations.
Can this profile light a complete garden?
It can form a light line in selected locations. A complete garden plan may also need standalone path, wall or spike lights.
What should be checked before installation?
Check dimensions, strip width, voltage, IP ratings, cable routing, drainage, access and the exact surface detail.

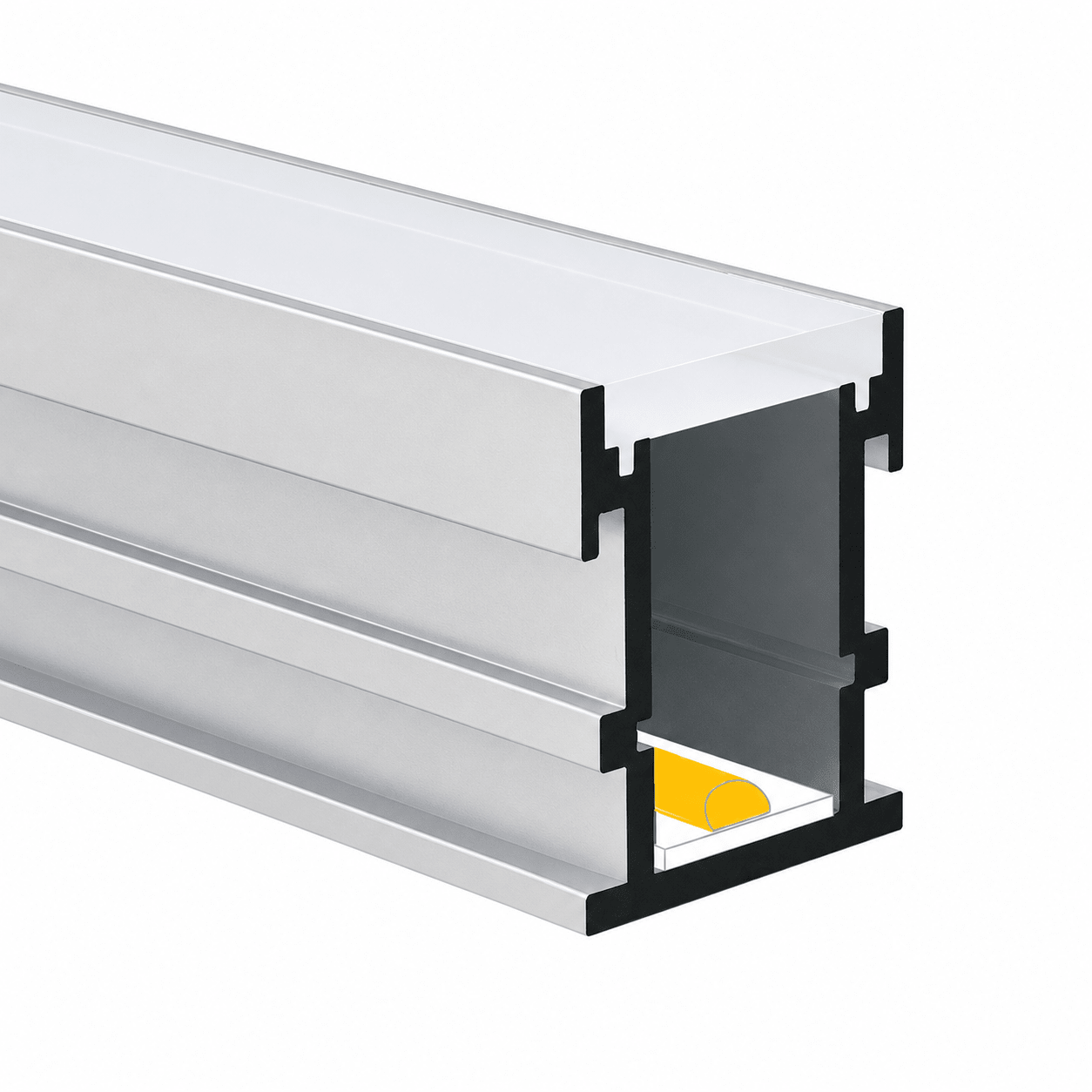

View the Outdoor Inground LED Profile with Frosted Cover used in this guide and check the product specifications before planning the installation.
