The LED Universe is used for modules or panels with external LED drivers. It
can operate any LEDs with a forward voltage of 10 to 300Vdc. The LED
Universe is compatible with lithium-ion batteries.

The LED Universe with lithium-ion batteries can offer a longer duration during
emergency mode with the added advantage of being cost-efficient. The
emergency control gear can be installed into the luminaire providing the case
temperature does not exceed 55°C when using lithium-ion batteries.

Features

  • Wide forward voltage range (10 - 300Vdc)
  • Maintained or non-maintained operation
  • Constant current (2-cell) kit
  • Li-ion battery compatible
  • 5-year warranty

Specifications

  • Rated Supply Voltage: 110 - 250Vac
  • Mains Frequency: 50hz
  • Output Power: 5W
  • Battery Charging Time: 24 Hours
  • Output Current" 2A (Max)
  • Output Forward Voltage Range: 10-300V
  • Maximum Casing Temperature Tc: 70°C
  • Ambient Temperature ta: +55°C
  • Ingress Protection: IP20
  • Dimensions 140 x 30 x23mm

If the emergency control gear cannot fit into the luminaire due to size or
temperature, the emergency control gear can be mounted in a remote box.

Description

The LED Universe is used for modules or panels with external LED drivers. It
can operate any LEDs with a forward voltage of 10 to 300Vdc. The LED
Universe is compatible with lithium-ion batteries.

The LED Universe with lithium-ion batteries can offer a longer duration during
emergency mode with the added advantage of being cost-efficient. The
emergency control gear can be installed into the luminaire providing the case
temperature does not exceed 55°C when using lithium-ion batteries.

Features

  • Wide forward voltage range (10 - 300Vdc)
  • Maintained or non-maintained operation
  • Constant current (2-cell) kit
  • Li-ion battery compatible
  • 5-year warranty

Specifications

  • Rated Supply Voltage: 110 - 250Vac
  • Mains Frequency: 50hz
  • Output Power: 5W
  • Battery Charging Time: 24 Hours
  • Output Current" 2A (Max)
  • Output Forward Voltage Range: 10-300V
  • Maximum Casing Temperature Tc: 70°C
  • Ambient Temperature ta: +55°C
  • Ingress Protection: IP20
  • Dimensions 140 x 30 x23mm

If the emergency control gear cannot fit into the luminaire due to size or
temperature, the emergency control gear can be mounted in a remote box.

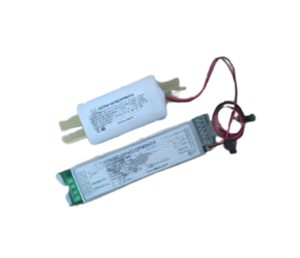

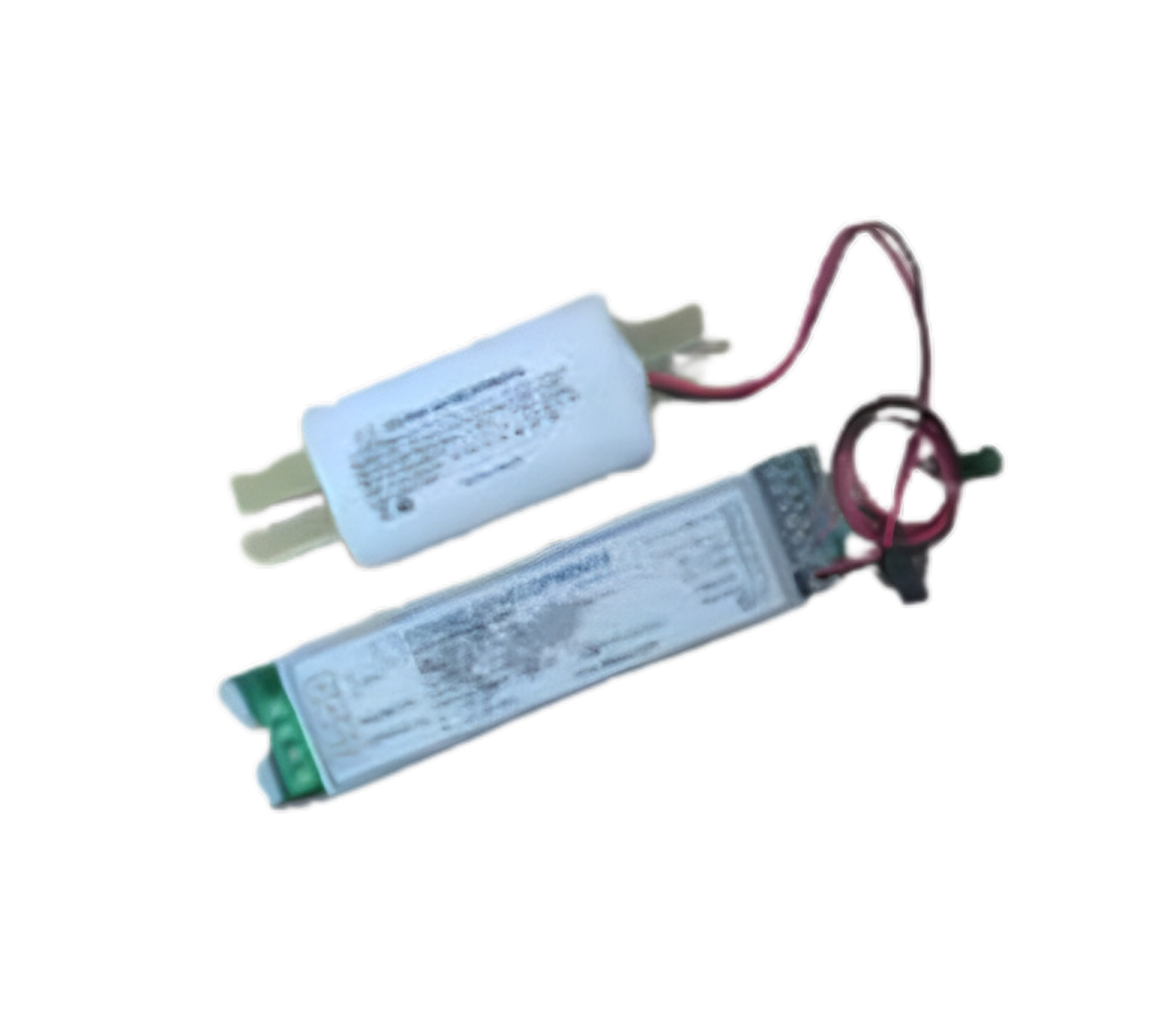

Emergency Conversion Kit - LED Universe

Translation missing: en.products.product.sku:LED Universe

Regular price
R 827.00
Sale price
R 827.00
Regular price
R 1,189.00
Tax included.
